Zoöid Third Times a Charm CB175

Texasstar

Can't is a four letter dirty word
Zeke is at it again. So here are some iterations. 21" wheels


Attachments

  • image.jpg
    2.2 MB · Views: 848
Re: Third Times a Charm CB175

Stretched swing arm mock up


Attachments

  • image.jpg
    1.3 MB · Views: 785
Re: Third Times a Charm CB175

18" wheels


Attachments

  • image.jpg
    302.7 KB · Views: 740
  • image.jpg
    3.2 MB · Views: 757
Re: Third Times a Charm CB175

Cb400t hawk1 front hub 19" front cb160 forks


Attachments

  • image.jpg
    2.8 MB · Views: 724
Re: Third Times a Charm CB175

Mounted a ring roller on a receiver hitch. Zeke is going to make a buck out of 1/4" cold rolled steel.


Attachments

  • image.jpg
    3 MB · Views: 684
Re: Third Times a Charm CB175

Tired of not having a place for his stuff


Attachments

  • image.jpg
    1.3 MB · Views: 679
Re: Third Times a Charm CB175

Made a telescoping spot light for the fabrication area cb175 style


Attachments

  • image.jpg
    1.1 MB · Views: 663
Re: Third Times a Charm CB175

I like the 18" mock up the best..and the additions to the shop are pretty cool ideas too

Re: Third Times a Charm CB175

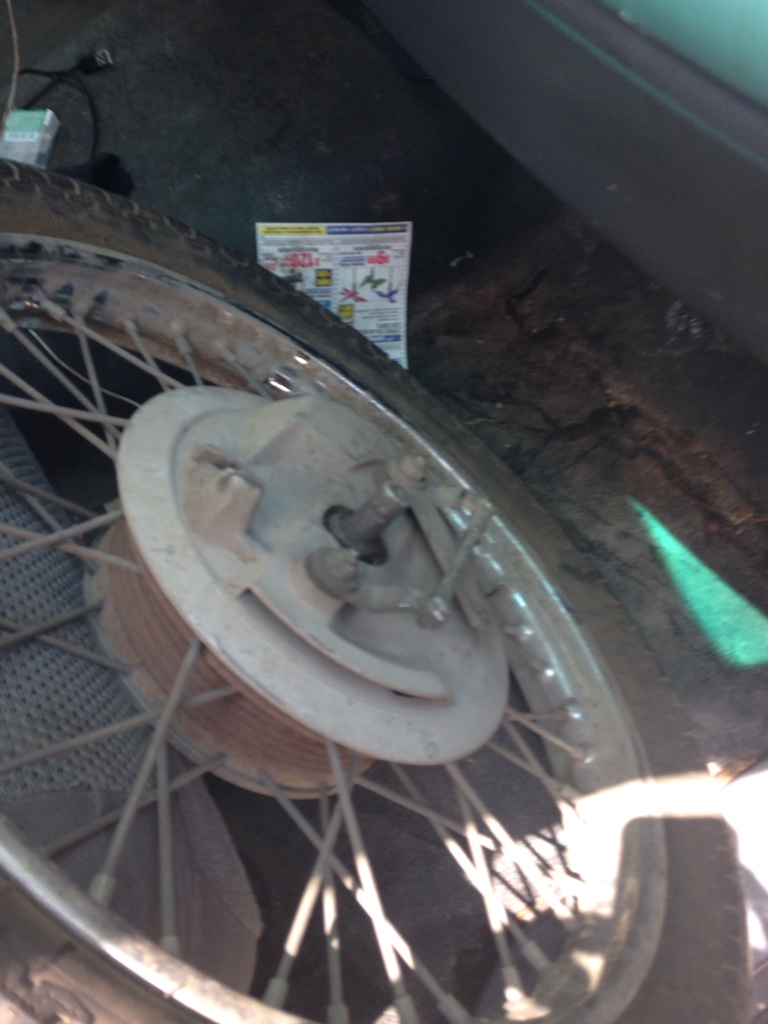

Thanks guys...I really liked the 21's but Zeke HATED them. We are mocking up 19's front and rear tonight. Found this little jewel. Did Akront make a 1.85x19 40 hole?



Sent from my iPhone using Tapatalk

Re: Third Times a Charm CB175

So we are thinking 240cc, big valves 180 degree crank, gear drive cams and 6 speed for this one? Or am I just projecting again?

18 are the way to go. We have a CB450 hub and alloy rim so that must be 40 hole. Can't remember where it came from though. CB160 and CB77 are 36 hole IIRC. Or have I built too many Yamaha TZ and GT750 Suzuki 36 hole wheels and lost track of what fits what?

Third Times a Charm CB175

teazer said:
So we are thinking 240cc, big valves 180 degree crank, gear drive cams and 6 speed for this one? Or am I just projecting again?

18 are the way to go. We have a CB450 hub and alloy rim so that must be 40 hole. Can't remember where it came from though. CB160 and CB77 are 36 hole IIRC. Or have I built too many Yamaha TZ and GT750 Suzuki 36 hole wheels and lost track of what fits what?
Well we like your projections! I like the TZ, TD, hub but they are unobtanium $$$
The triumph hub if it is 8" is suppose to be better on the BEC than the cb450 hub. However it weighs a TON! Now we married the cb450 brake to a 36 hole cb77 hub on Victoria and it is phenomenal! We used the 19 rear and 18 front on Victoria.

However this build has a suitor waiting in the wings and he is also projecting. So we are giving him his options. He is sending us Ceriani 32 mm forks and triple.

Speaking of 6 speed the cb400 hawk has a six speed in it. Compatible with 175???


Sent from my iPhone using Tapatalk

Re: Third Times a Charm CB175

Very cool idea with the spotlight man.. love it.. thats how I solve most of my problems.. throw what I have together and make something work

Re: Third Times a Charm CB175


Luugo86 said:
Very cool idea with the spotlight man.. love it.. thats how I solve most of my problems.. throw what I have together and make something work
thanks Luugo86 we picked up a 12 volt exterior lighting transformer from Home Depot and thank goodness our lights love AC/DC we were a rockin'.


Sent from my iPad using Tapatalk

Re: Third Times a Charm CB175

Speaking of 250cc Honda's and yes Google I always want to translate Japanese http://blogs.yahoo.co.jp/rc164ver2/folder/1041139.html


Sent from my iPad using Tapatalk

Re: Third Times a Charm CB175

Are cb77 spokes and cb350 spokes interchangeable?


Sent from my iPhone using Tapatalk

Re: Third Times a Charm CB175

No. 350 hubs are smaller than 77 IIRC.

Re: Third Times a Charm CB175

hoops came in from MikesXS we got 1.85 X 19 36 hole

Since we are home of the Hawks we are going with a 200 mm cb77 front hub and brake and a Cb160 180 mm rear.




Sent from my iPhone using Tapatalk

Re: Third Times a Charm CB175

We have the rear swing arms ready to stretch we are going to add two inches and follow Bryan Fullers lead with what he did on Victoria



Sent from my iPhone using Tapatalk
