We bolted the hub to a drill press and rotor broached the holes. You can see the dings we need to remove that were there previously.


Attachments

  • image.jpg
    1.5 MB · Views: 409
  • image.jpg
    983.6 KB · Views: 405
  • image.jpg
    1.7 MB · Views: 416
Third Times a Charm CB175

Next we used a Harbor Freight High Speed mini saw to remove most of the material then it took us and hour to get the hub centered correctly on the mill. https://vimeo.com/132013427


Sent from my iPhone using Tapatalk

Re: Third Times a Charm CB175

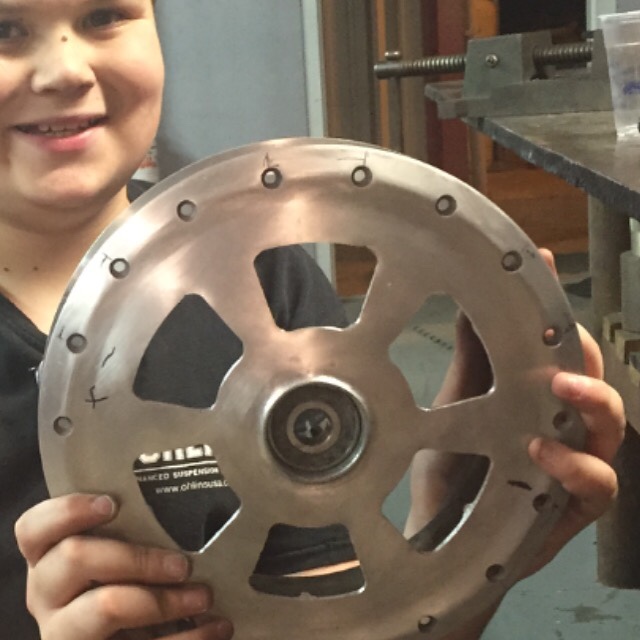

Happy camper at 2 am.


Sent from my iPhone using Tapatalk

Re: Third Times a Charm CB175

Zeke, that is awesome and way neater than any I have done. Nice work.

Pat, You will end up in trouble for child abuse keeping him working so late ....................... ;-)

Re: Third Times a Charm CB175

teazer said:
Zeke, that is awesome and way neater than any I have done. Nice work.

Pat, You will end up in trouble for child abuse keeping him working so late ....................... ;-)
Teazer time flies when you are having fun!

Re: Third Times a Charm CB175

Well you gotta love the Italians and they love their curves. Here is what the steering stem measures for the 32mm cerianis.


Attachments

  • image.jpg
    157.3 KB · Views: 389
Re: Third Times a Charm CB175

The cb175 All Balls Racing Steering Stem roller bearings offered a slight challenge. The bottoms bearing is a 27mm ID and the top is a 25mm ID. Soooo we measured and the bottom bearing ID was 26.85" ish. So our phone a friend suggested that we roll a feeler gage for a shim to get an idea for making a sleeve.

I swear these parts arriving in the mail are a test or the Italians drank too much wine while machining.


Attachments

  • image.jpg
    1.2 MB · Views: 378
  • image.jpg
    1.1 MB · Views: 392
Re: Third Times a Charm CB175

So we put our all balls in the freezer and will install the chases after we
heat up our stem. (That is how the instructions should read)
:)

Re: Third Times a Charm CB175

Now back to the work and lacing hubs. Zeke hand filed finished sanding and polished the hubs before lacing with Buchanan's stainless spokes.


Attachments

  • image.jpg
    1.8 MB · Views: 388
  • image.jpg
    1.5 MB · Views: 378
  • image.jpg
    1.2 MB · Views: 396
Re: Third Times a Charm CB175

Picked up some Ospho to take care of any rust in the cracks changes iron oxide to iron phosphate. You can watch it change.


Attachments

  • image.jpg
    2.8 MB · Views: 383
Re: Third Times a Charm CB175

We received some Metzlers in the mail.


Attachments

  • image.jpg
    554.5 KB · Views: 393
Re: Third Times a Charm CB175

Before and after using Ospho


Attachments

  • image.jpg
    2.2 MB · Views: 397
  • image.jpg
    1.5 MB · Views: 370
  • image.jpg
    1.4 MB · Views: 380
Re: Third Times a Charm CB175

Kopism... Aluminum foil and Ospho on chrome
