Zoöid Third Times a Charm CB175
- Thread starter Texasstar
- Start date
From what I can see from Mr. Google, those carbs come with a #15 pilot jet, 130 mains, #454 Q-0 needle jets and 5N13 needles. That seems more like 2 stroke jetting - very rich at the top.
#15 is a pretty small pilot and that's probably because the flat slide creates a stronger signal than old round slides. You could try opening up the air screws a touch just to see if it helps the off-idle. They are available in 12.5 and 10 sizes if that helps any.
#454 appear to come in a very narrow range of sizes, so let's leave those for the moment. http://www.nichecycle.com/ncs/categories/carburetor/mikuni-parts-by-category/jettting-tuning/needle-jets/784-21005-454-series-needle-jet-by-mikuni.html
I have no dimensions for a 5N13 but it has a really wide taper angle so it will get rich quick. If you measure the needle dimensions I'll see what might work better.
That's root diameter and diameter every 5mm from the top ( don't start at the tip), overall length and where the taper starts (distance from the top).
#15 is a pretty small pilot and that's probably because the flat slide creates a stronger signal than old round slides. You could try opening up the air screws a touch just to see if it helps the off-idle. They are available in 12.5 and 10 sizes if that helps any.
#454 appear to come in a very narrow range of sizes, so let's leave those for the moment. http://www.nichecycle.com/ncs/categories/carburetor/mikuni-parts-by-category/jettting-tuning/needle-jets/784-21005-454-series-needle-jet-by-mikuni.html
I have no dimensions for a 5N13 but it has a really wide taper angle so it will get rich quick. If you measure the needle dimensions I'll see what might work better.
That's root diameter and diameter every 5mm from the top ( don't start at the tip), overall length and where the taper starts (distance from the top).
Texasstar
Can't is a four letter dirty word
I guess I shouldn't by carbs on sale from Treatland however this acts like a two stroke...very similar to my Bultaco when it comes on the pipe. I made a mistake the left carb was set 4 down and the previous video and the right carb was set two down. Setting both 4 down. Did you watch that latest video?teazer said:

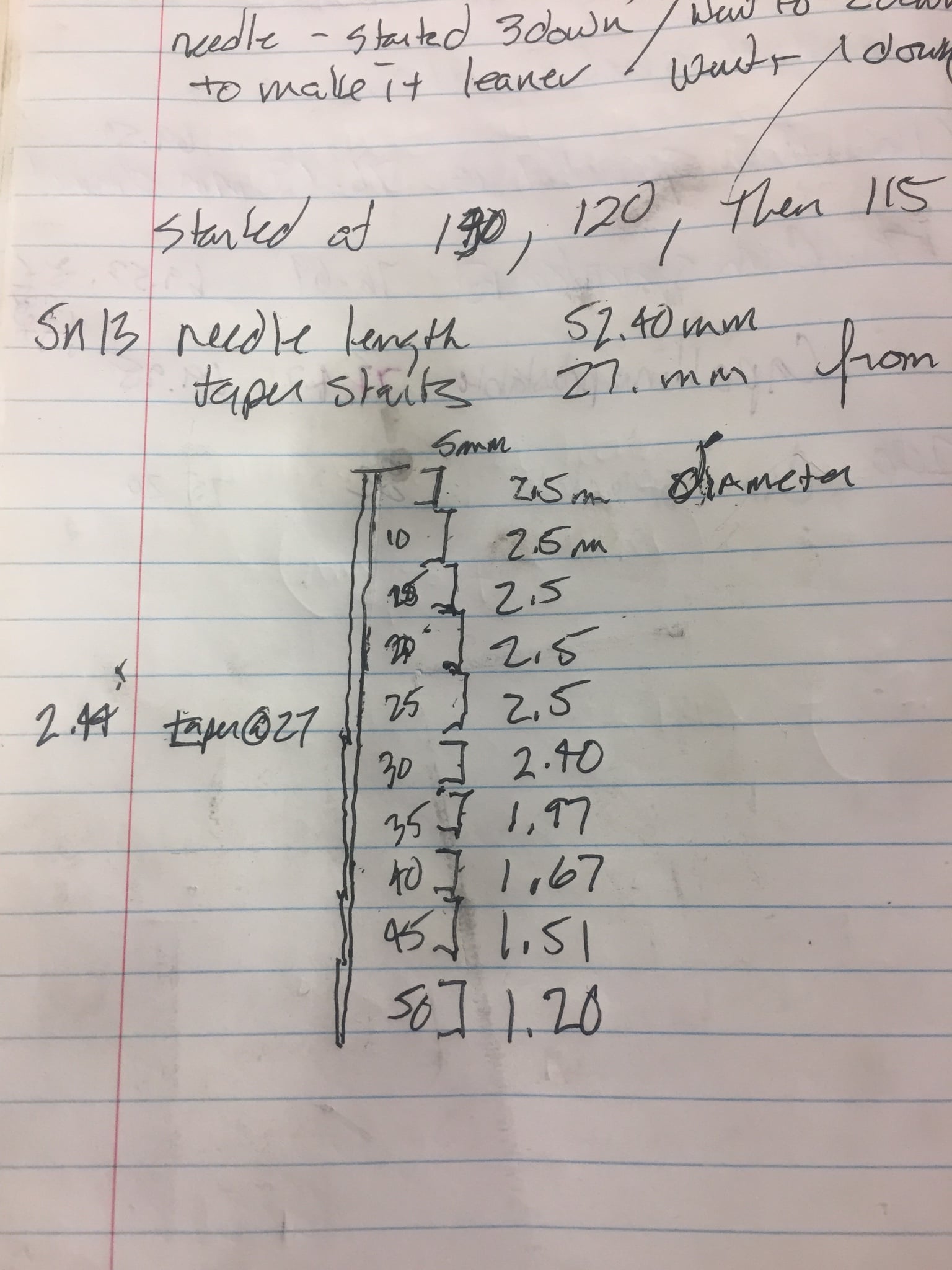

Here are the needle measurements for the 5n13 mikuni Tm 24
Sent from my iPhone using Tapatalk
That is one crazy rich short needle. According to my notes, that is one of the richest available. Sticking with one that the taper starts in a similar place, I would start with a 5F3 if you can find a pair. They have less of a taper and the 50mm diameter is 1.863mm.
If they still stumble as it comes on the needle, the next idea would be to use one on which the taper starts later and if it's too long, machine the tip shorter.
Time for some dyno time to do part throttle runs and see what is going on.
If they still stumble as it comes on the needle, the next idea would be to use one on which the taper starts later and if it's too long, machine the tip shorter.
Time for some dyno time to do part throttle runs and see what is going on.
Texasstar
Can't is a four letter dirty word
No stumble...Well the mid range is awesome now but we are way too rich on the upper end. Going to drop down to 115 mains. Oh can't wait to dial this puppy in! Nice and streetable but it bogs around 8k...Yep need to go to Dyno! The little kids face is priceless. Took Zoöid for a ride around town! Sonreir's 3 phase charging system is amazing. Road with the lights on and came home with a full tiny battery! https://youtu.be/nDtfvHPqQRsteazer said:
Sent from my iPhone using Tapatalk
Texasstar
Can't is a four letter dirty word
Well the TM's are a pound lighter each! Lol.teazer said:
Put the 115's in and it is snappier haven't done a WOT yet and we fixed the oil leak. We are about to head out to Barber in a few days. Zeke wants to know if you are going to make it to Barber? If not we may need to stow away in Bills trailer to watch you and the Mrs. Drag Race. Bill says your wife is quite amazing off the line.
Sent from my iPhone using Tapatalk
Texasstar
Can't is a four letter dirty word

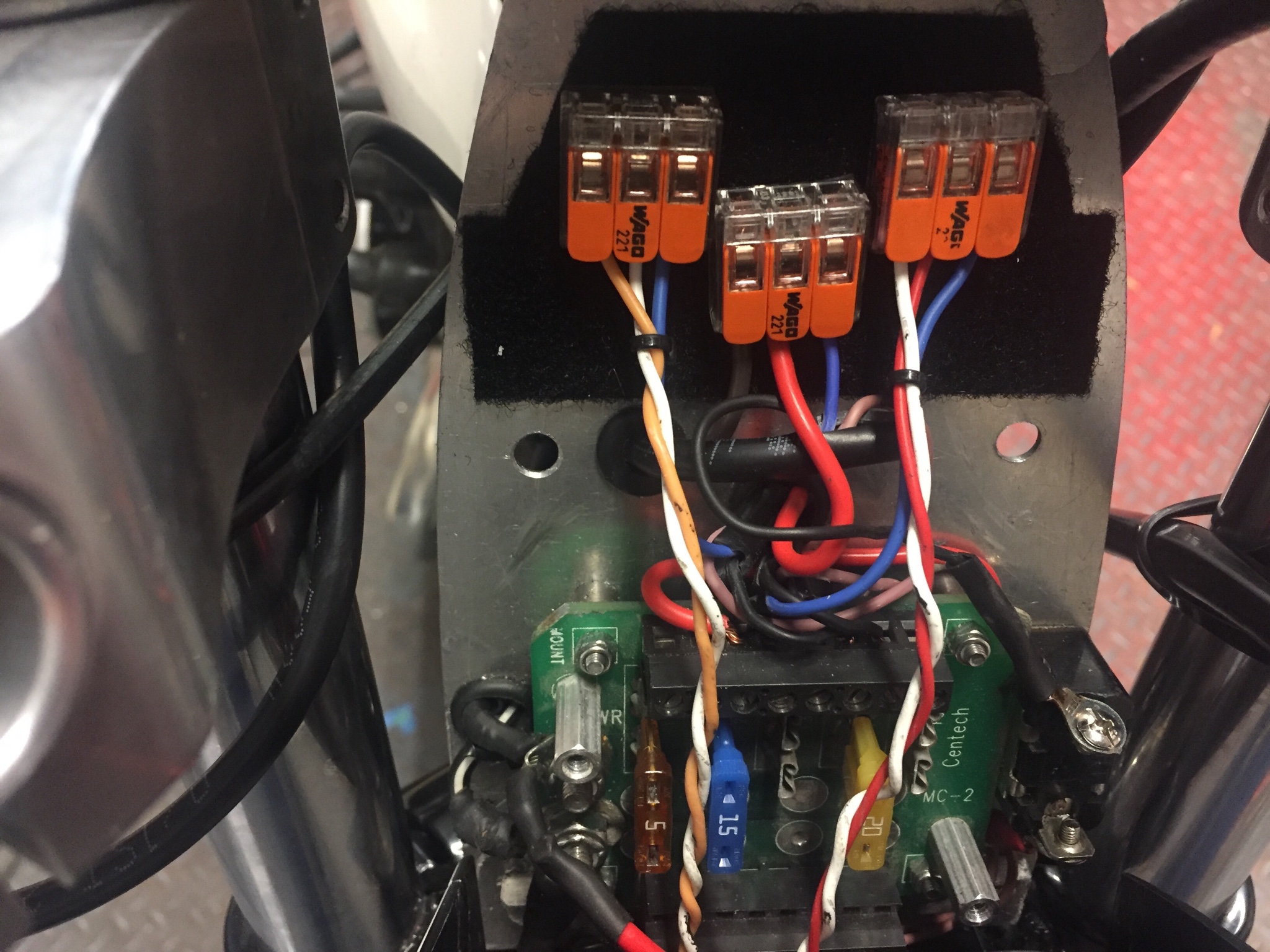

Fantastic!!! Left the battery hooked up for two days! Wired lights etc. still 13.2 volts! Going to do a little riding if it stops raining.Sonreir said:
So impressed with this Sonreir...none of the other charging systems would keep the small Speed Cell charged. I will be buying these in the future for every vintage bike we restore!
Sent from my iPhone using Tapatalk
Awesome.
I've taken some of the experience we gained from your install and my own and have tweaked a few things for version two. Next stator will be a little bit smaller in OD so as to not be such a tight squeeze and we're trying to reroute some of the wires so they're not sitting on top of the mating surfaces.
We might be looking at getting some custom molded seals, too.
I've taken some of the experience we gained from your install and my own and have tweaked a few things for version two. Next stator will be a little bit smaller in OD so as to not be such a tight squeeze and we're trying to reroute some of the wires so they're not sitting on top of the mating surfaces.
We might be looking at getting some custom molded seals, too.
Texasstar said:
Amazing!whats the song in the background
?
Probably normal voltage drop from the coils and headlight (the smaller the battery, the most likely you are to see this effect). I wouldn't worry about it so long as the voltage of the bike when it's running is higher than the voltage when the bike is on and not running.
