1974 CB360 Fallin' Ditch Hell Ride

irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
While waiting on carbs and engine parts to finish up the motor, I'm moving to frame to finish out. Final pieces to the rear brake assembly are a CR125 caliper and mount that I altered plus hose, and a stay from (I think) an XL...






Sent from my iPhone using Morse code


Hurco550

Keep er' Between the ditches
DTT SUPPORTER
DTT BOTM WINNER
lookin nice! you sure that stay is up to the job? probably originally made to be pulled against not pushed against.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
hurco550 said:
lookin nice! you sure that stay is up to the job? probably originally made to be pulled against not pushed against.
It's 1/2" tubing.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
hurco550 said:
bent and kinked tubing. not saying it wont, just curious.
If you're into over-engineering something, sure. It'll be fine. More than it needs to be.


Hurco550

Keep er' Between the ditches
DTT SUPPORTER
DTT BOTM WINNER
deviant said:
If you're into over-engineering something, sure. It'll be fine. More than it needs to be.
Eh, spent too much time as a heavy structural fabricator ha, I over build everything. nice looking lashup on that


ridesolo

You only bear responsibility for your own actions
hurco550 said:
Eh, spent too much time as a heavy structural fabricator ha, I over build everything. nice looking lashup on that
Yeah, you should see the electric tooth brush he made!


NoRiders

Well-Known Member
Coming together nicely deviant, that brake check rod would look the nuts as a stainless tube/bar with threaded rose joints at each end....just sayin' fella haha!


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER

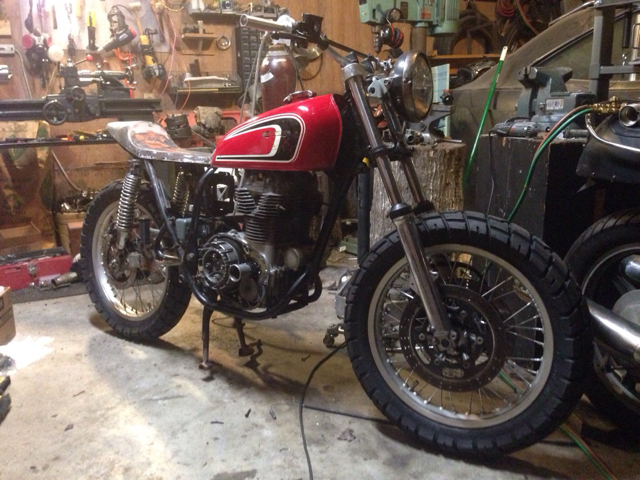

Motor back in frame. Button up from there. A little WD-40 shine on the frame, a hand rub on the tank. I'm going down to single disc on the front end...




Sent from my iPhone using DO THE TON


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Brodie said:
Interesting, what are the benefits of this oil mod?
Do a better job of getting oil to the top end. Plus, the plan is to eventually convert to an external filter. I will tie into this system.


xb33bsa

New Member
it would be prudent to have an anti drainback check ball valve in the outgoing oil line
another thing to look at would be tightening up the escape route for oil that makes it to the cam journals
you can pump lots of oil up there but if it too easily just escsapes duty it isnt doing much good
