1987 XR200R. red dirt redemption

irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Aussie Steve said:
Cxman, educate the ignorant. What do you mean by knurl the pistons? Thanks

Sent from my SM-A530F using Tapatalk

I'm not going to attempt to explain it myself, but here's a good article to explain it. Most of the time, guys do it to extend the life out of their piston/bore. I always though it was more of an old school thing, but I think guys still do it today. My old man did it to one of our VW drag cars when I was a teen, which got us maybe a dozen more race weekends out of the motor before we tore it down.

https://www.enginebuildermag.com/2017/09/lost-art-knurling-pistons-takes-skill-guts/


cxman

Over 1,000 Posts
DTT SUPPORTER
we do it a lot in race and nitrous engines the knurling holds oil
is forgiving in rapid expansion from heat yet holds dimensions well

yup can do a peripheral band or 2 opposing side skirt areas is more preferred

its perfect for a a situation like you have where its a little sloppy and you are going to use it hard

most machine shops will sell you new stuff quicker than a bit of skull work and a small labour charge


cxman

Over 1,000 Posts
DTT SUPPORTER
im getting to be the old guy i have been doing this since i was a kid lol this sucks

ive even seen queen live in 1980


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
Ephraim had told me to knurl it a while back, but since 97% of what we say to each other is shrouded in sarcasm and other shenanigans, I just thought he was full of crap. haha


cxman

Over 1,000 Posts
DTT SUPPORTER
nope you should have listened

oh well the faint piston slap will remind you


Aussie Steve

As useful as an ashtray on a motorcycle!
irk miller said:
I'm not going to attempt to explain it myself, but here's a good article to explain it. Most of the time, guys do it to extend the life out of their piston/bore. I always though it was more of an old school thing, but I think guys still do it today. My old man did it to one of our VW drag cars when I was a teen, which got us maybe a dozen more race weekends out of the motor before we tore it down.

https://www.enginebuildermag.com/2017/09/lost-art-knurling-pistons-takes-skill-guts/
Thank you.

Sent from my SM-A530F using Tapatalk


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
cxman said:
nope you should have listened

oh well the faint piston slap will remind you

ill just leave the cam chain loose so I don't hear the piston slap ha


cxman

Over 1,000 Posts
DTT SUPPORTER
as with most hondas that will work

as long as the chain does not turn into a endless casing mill


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Or jumps two teeth, bends a valve and gets bought by some chump in Georgia.


cxman

Over 1,000 Posts
DTT SUPPORTER
hey there is a guy in north carolina looking for a little one like that if teeth are jumping


Mr.E

Got to keep the loonies on the path...
Hurco550 said:
Ephraim had told me to knurl it a while back, but since 97% of what we say to each other is shrouded in sarcasm and other shenanigans, I just thought he was full of crap. haha

I am definitely full of sarcastic crap. Anyone taking me seriously should themselves probably not be taken seriously :)


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
I pawned Lenny off on my mom today which gave me a couple hours of uninterrupted work in the garage. It was a nice bit of therapy. Staying home all day with an infant while my wife is at work and then working second shift is a challenging yet very rewarding Prospect. It does not however leave a lot of time for working on motorcycles LOL I digress.

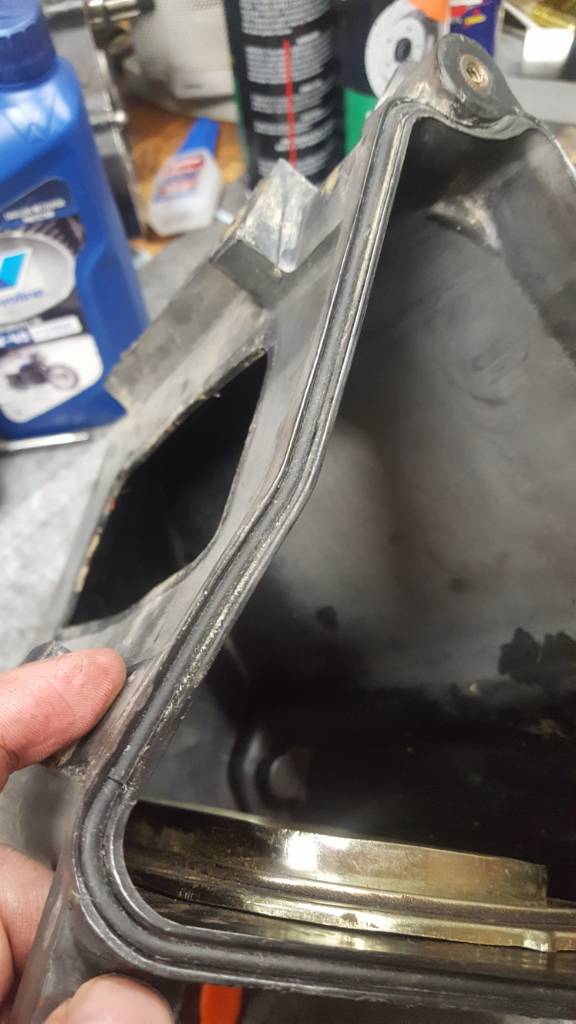

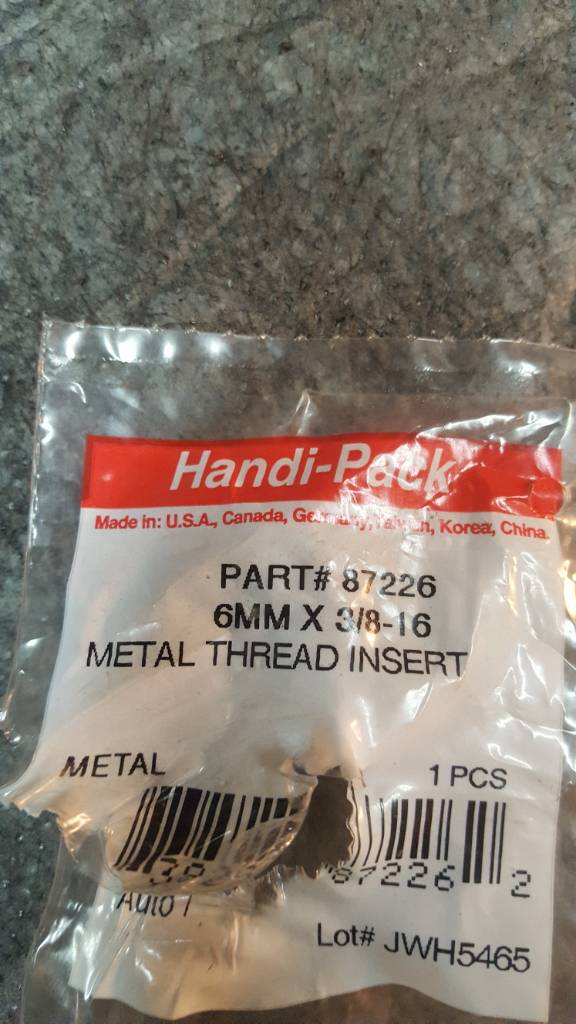

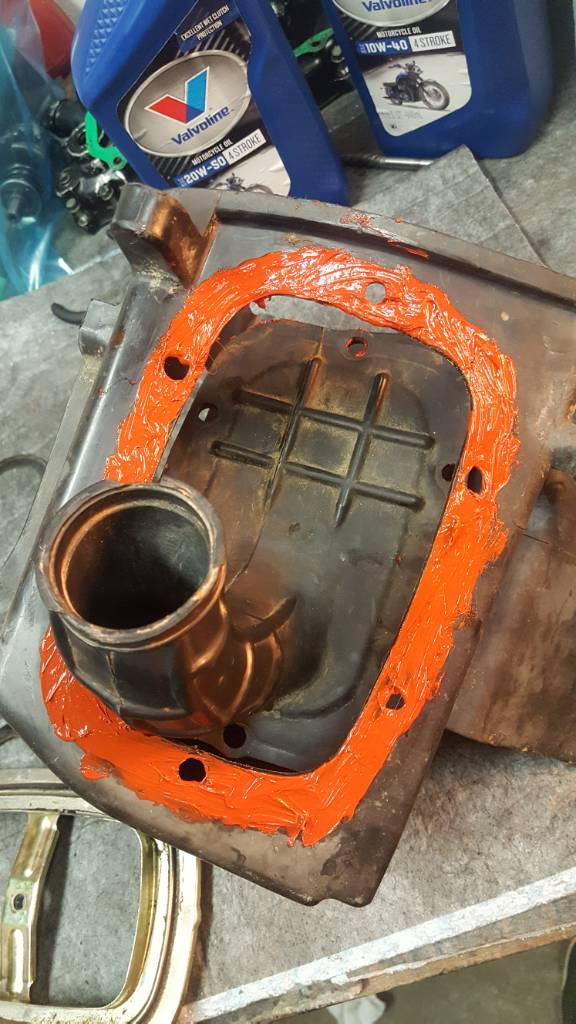

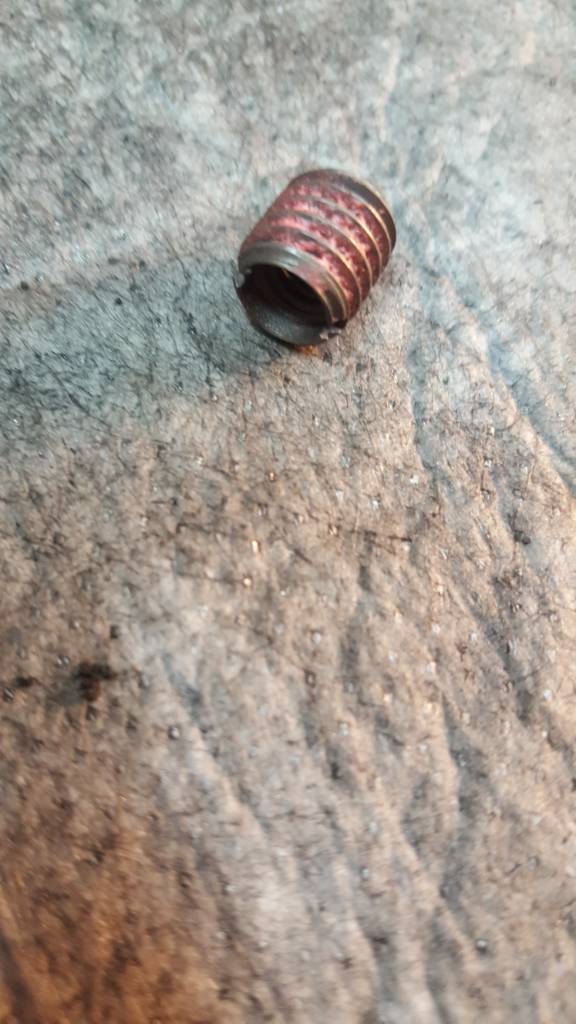

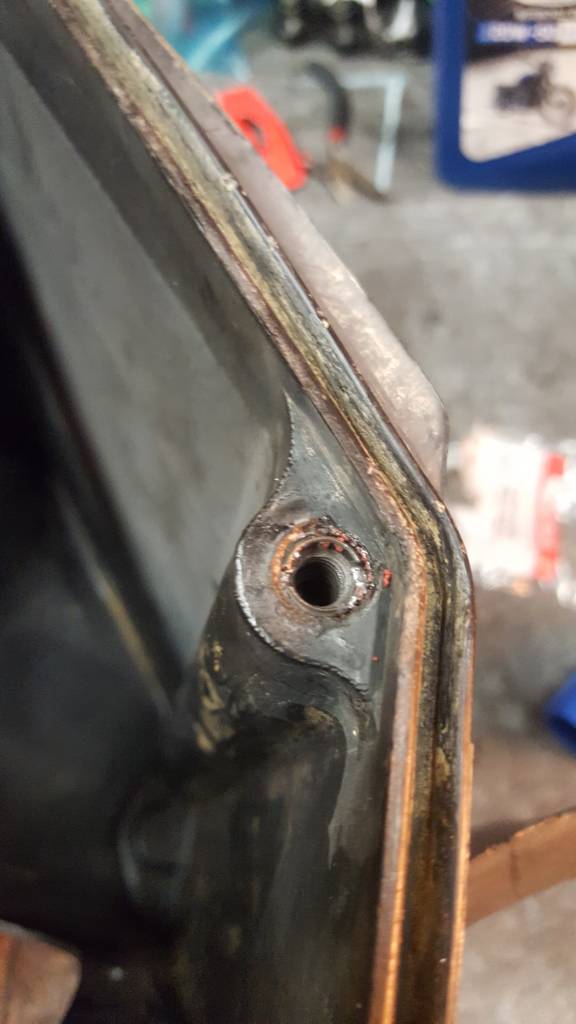

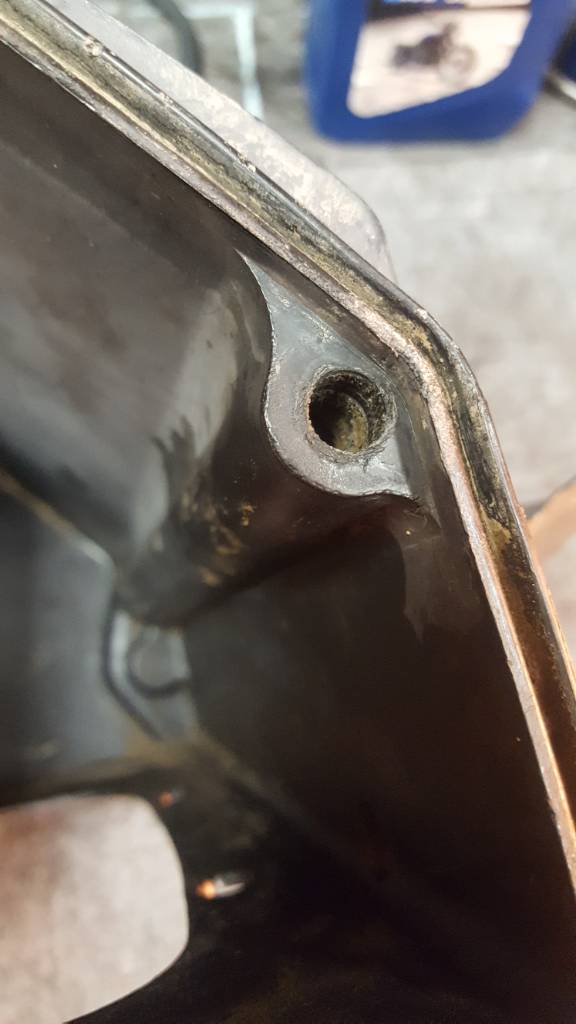

I spent the day basically working on the air box. It seems a very simple piece of kit but this one has seen better days. I didn't take a before picture but it was caked both inside and out with a thick layer of mud. I am guessing that it was run for a certain amount of time without the side cover on it which doubles as the air box access. What I found underneath the mud were a few unsavory bits, namely a couple stripped or missing brass bolt lugs. One of them I was able to clean up enough with a tap that I think it will work and the missing one I replaced with a 3/8 16 insert that had a 6 mm internal thread. It matched the hole left by the missing knurled insert perfectly, and I added a few drops of super glue gel for good measure. I also installed a new seal for the door. I applied RTV silicone on the flange where are the rubber boot mates the airbox. One thing that I learned from mr. E's meatwad XR 200 is that with a properly sealed air box these things are a little submarines. The rest of the bike may look ratty but I am trying to spend my time where it counts to make this thing as Dependable as possible.

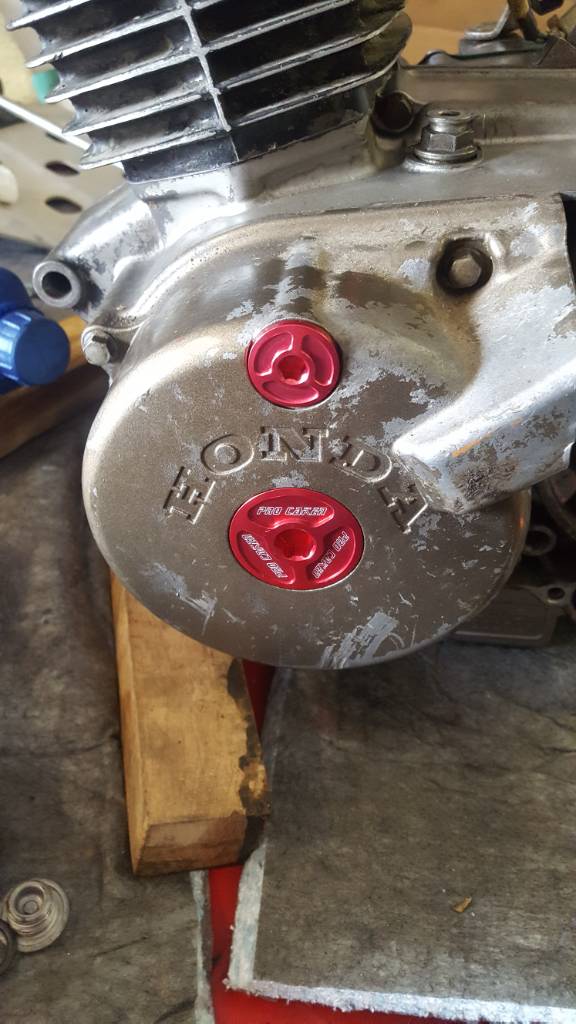

Also I crossed the line into race bike territory with these fancy Billet aluminum timing access plugs. Honda designs most things pretty well but the stupid curved bottom Flathead slots are not one of those Fine Designs LOL


Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER

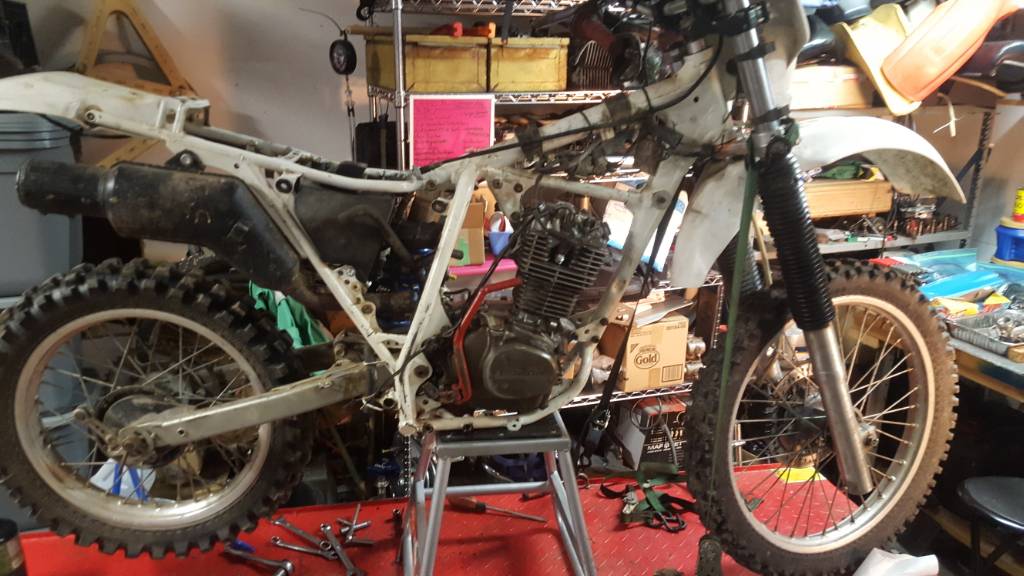

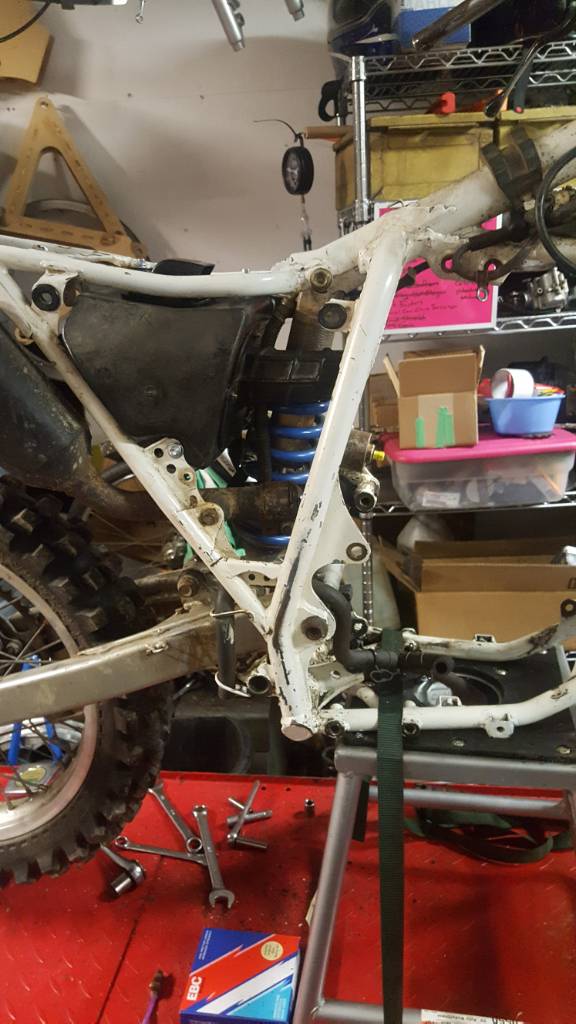

Motor is back in.

List of 578 little petty things that need fixed made.

Sketchy hot lap tentatively planned for this weekend.


Sent from my SM-G920V using Tapatalk


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
How can I change this cam chain tensioner without pulling the motor again?


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
irk miller said:
How can I change this cam chain tensioner without pulling the motor again?
ratchet straps, chewing gum, bailing twine and dapper dan polmade.

Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER

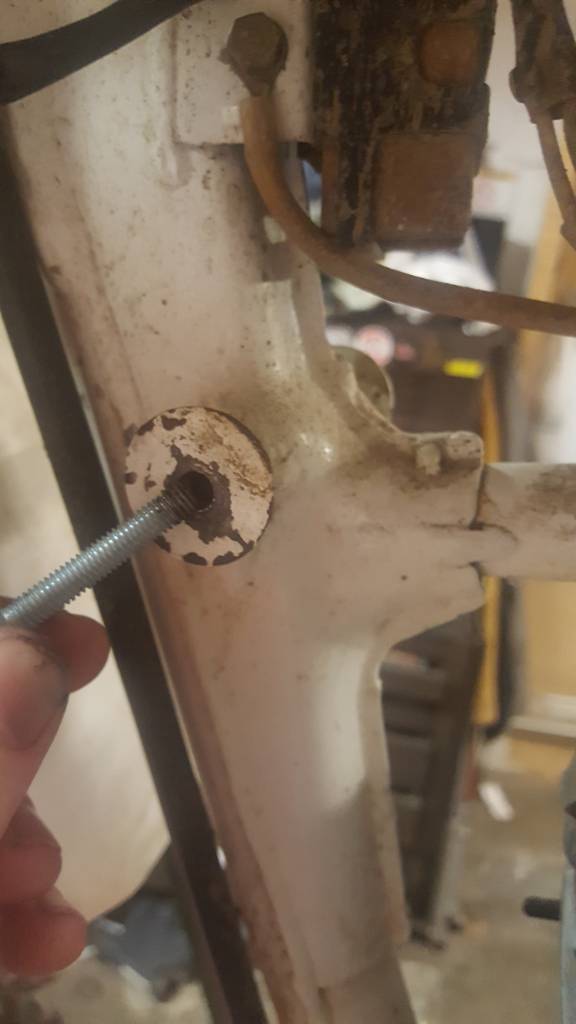

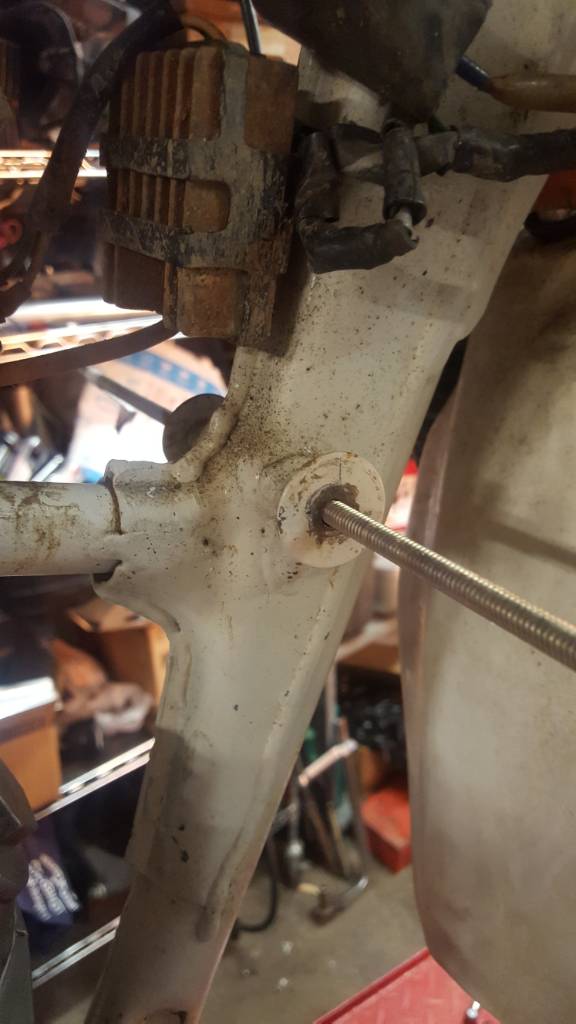

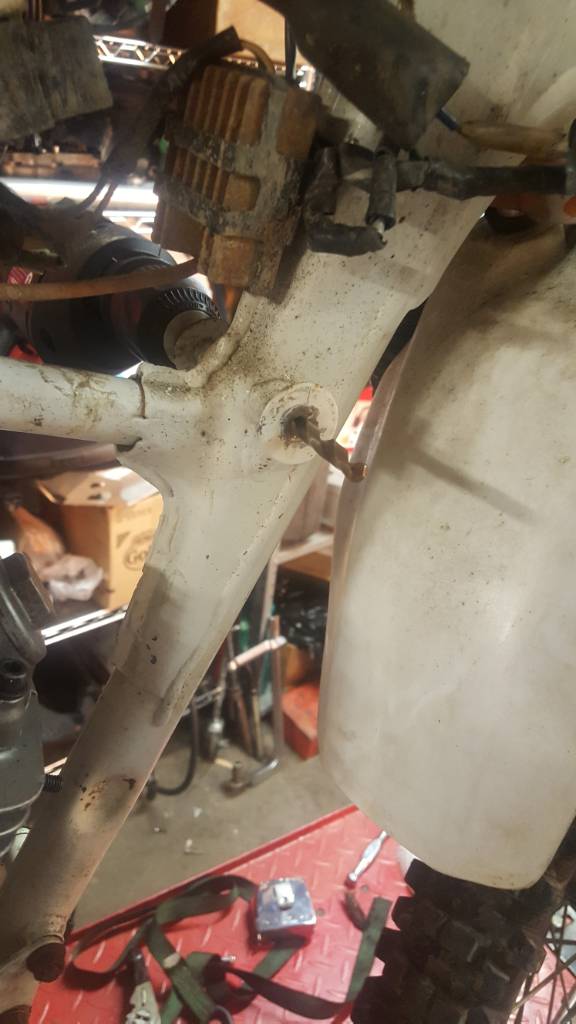

Little more time spent today trying to fix a bunch of little issues left by 32 years worth of p.o. hackery. Many threaded fasteners have at one point or another been replaced with the wrong pitch bolt or in several cases even wood screws. One such case is the tank mount. Both sides were stripped of their threads and the bosses weren't big enough to accept a time sert, so I drilled a clearance hole clear through the frame to accept a bolt (er all thread) running clear through. Also spent the better part of a couple hours un doing lots of electric tape/ speaker wire/write nut/general-shoddyness in the electrical system and fixing it the best I'm able. No pics of before, though it was glorious in its own right. I've got spark and a kill switch though, so that's good. Hitting up the local wrecker tomorrow for some throttle bits as this one is beyond repair. I have high hopes of hot laps here really soon.


Sent from my SM-G920V using Tapatalk


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
Hm. Now I definitely have to pull mine out of the barn. I don't remember it having a rectifier.


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
Spent the day trying to wrap up some odds and ends. Had to do a bit of custom (er hackery) work to make a second - hand throttle cable work with the Chinese carb. I got the other "big" parts all put together. The ticking in the video is an out of adjustment auto decomp. Hopefully I'll sort that tomorrow, and the carb is likely way outta adjustment.

https://youtu.be/1nKJlPzUU1g

Sent from my SM-G920V using Tapatalk
