1987 XR200R. red dirt redemption

Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
irk miller said:
Mine is still in the barn. ???
All aboard the fail boat.


Sent from my SM-G920V using Tapatalk


cxman

Over 1,000 Posts
DTT SUPPORTER
this will get that working right

https://www.ebay.com/itm/Genuine-Mikuni-26mm-Round-Slide-Carb-Carburetor-Carb-VM26-606/362558715507?epid=202964940&hash=item546a2ef673:g:KgQAAOSw8IpcYKLH:rk:14:pf:0


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER

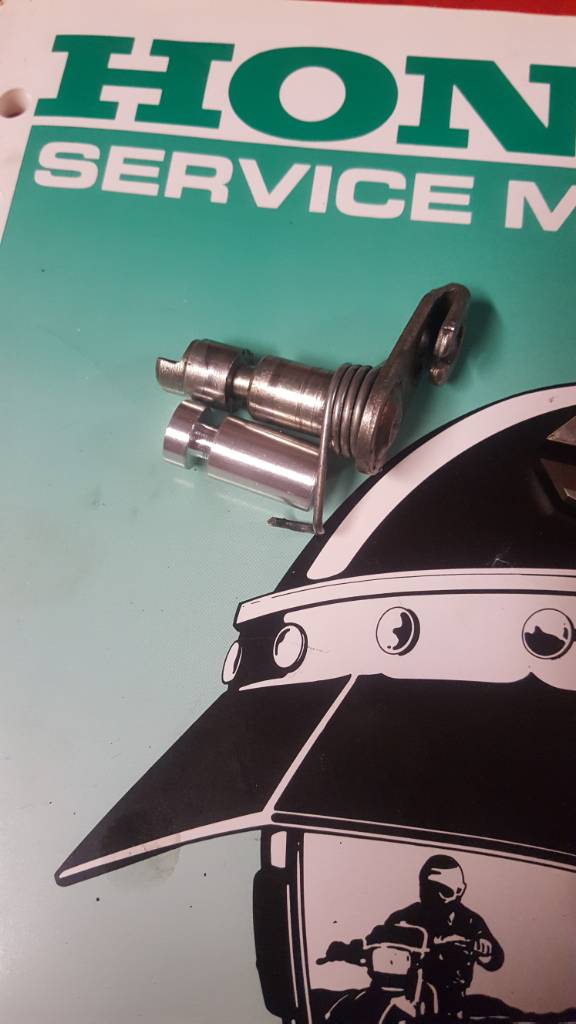

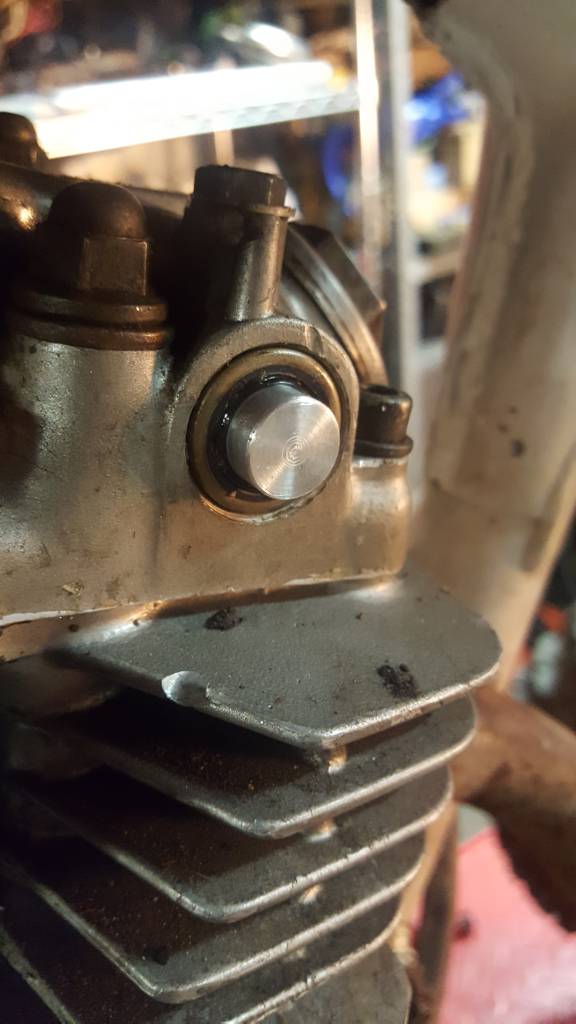

Spent some time chasing my tail trying to adjust the auto decomp within specs, but never got rid of the ticking sound. Got tired of it and decided I would just pull the whole decomp shebang and turned up a little block off plug. Got called inside before I could fire it up again and make sure that's what the nose was for sure.


Sent from my SM-G920V using Tapatalk


Sonreir

Oregon
DTT SUPPORTER
irk miller said:
Hm. Now I definitely have to pull mine out of the barn. I don't remember it having a rectifier.

I didn't think the XRs did, either. XLs do.

Maybe someone tried to do a conversion at some point?


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
The weird part is that it it's mounted to what appears to be a stock bracket.

Sent from my SM-G920V using Tapatalk


Flugtechnik

My bike is not transportation, it is a respite
Are you guys talking about that finned thing by the tank mount? That is the regulator.


The PO of my XR200 had completely removed the decomp parts. Just filled the holes with bolts and lots of RTV. It took awhile to find all the little parts I needed to replace it on ebay. I should have just waited for you to remove yours! ;D


Maritime

Over 10,000 Posts
Sonreir said:
Weirdness. All the AC regulators I've ever seen are just a small box without fins.

I wonder if someone took a RR and just wired the regulator portion in.


Flugtechnik

My bike is not transportation, it is a respite


#9 is the regulator (REGULATOR, A.C. 31400-KR6-000)

It looks like the positions of the CDI box (3,4) and regulator are swapped.


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
I spent a bit today getting some things wrapped up on the old xr200. It took it's maiden voyage around the yard since the rebuild. The front brake is dragging and the rear chain slider is missing a big chunk, but otherwise it ran well and felt fairly strong. At least as strong as an xr200 can with a 250lb dude on it. Lenny liked it too, but Miss Cassy didn't think he was quite ready for a ride yet ;)

https://youtu.be/580GNxJcl0o


Sent from my SM-G920V using Tapatalk


ridesolo

Comfort the afflicted and afflict the comfortable.
DTT SUPPORTER
DTT BOTM WINNER
irk miller said:
Bubble wrap and packing tape. C'mon man, we got this.

Yeah, go for it. Judy and I will come down and keep Cassy occupied and looking the other way. Can't deny the little dude his first ride!


Maritime

Over 10,000 Posts
Ha, I fired up the scooter and Holly got all excited, she spent 2 hours watching me wrench on stuff this weekend.


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
irk miller said:
Bubble wrap and packing tape. C'mon man, we got this.
ridesolo said:
Yeah, go for it. Judy and I will come down and keep Cassy occupied and looking the other way. Can't deny the little dude his first ride!
So much combined wisdom ;) maybe by the end of the summer

Sent from my SM-G920V using Tapatalk


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
Maritime said:
Ha, I fired up the scooter and Holly got all excited, she spent 2 hours watching me wrench on stuff this weekend.
I had some help in the garage the other day too.


Sent from my SM-G920V using Tapatalk


iatethepeach

Coast to Coast
Hey Hurco, where did you find the timing access plugs you installed on page six, and in your research do you recall coming across anything similar but looking a little more factory?


Hurco550

Keep er' Between the Ditches
DTT SUPPORTER
DTT BOTM WINNER
iatethepeach said:
Hey Hurco, where did you find the timing access plugs you installed on page six, and in your research do you recall coming across anything similar but looking a little more factory?
These are the ones:

PRO CAKEN CNC Engine Timing Plugs for CRF150R CRF250R CRF450R XR250 BAJA XR400 TRX400EX https://www.amazon.com/dp/B07GL161JV/ref=cm_sw_r_cp_apa_i_C.fDDb12EQH3G

I really did want to find something closer to factory, but I couldn't find any and for the money I figured why not on these. They have worked just fine so far.

Sent from my SM-G920V using Tapatalk


iatethepeach

Coast to Coast
Those are very reasonably priced. If only they'd resisted the urge to lighten, badge, and anodize them.

I didn't realize the CRF, 250, and 400 all used the same plugs, so that's helpful. Thanks!
