Lets see your front end swaps!

brotus

Active Member
What kind of unholy abominations are goin on in your garages!? Airhead with DR forks? CB/GSXR?
Post some pics and specs. Lookin for some inspiration.


Brodie

Gold Coast, Queensland
DTT SUPPORTER
I have a Gs750 with a GS550 front end. Not that exciting really.


brotus

Active Member
Actually thats really interesting. How easy are the suzuki models to interchange. I have a 77 gs400 that would be fun to do if there are direct bolt in swaps.


Streetfighterkz

Been Around the Block
I've did a few.

'95 Gsxr on my '76 Kz900.

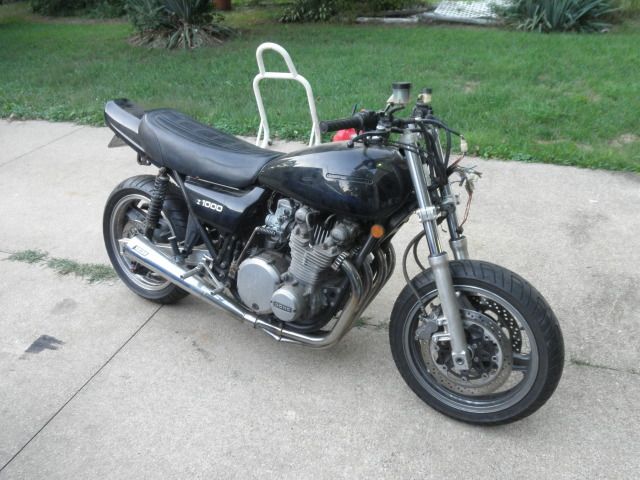

'89 Zx7/'91 Zx11 hybrid on my '78 Kz1000.


And a Zrx11/Zx11/Cbr1100XX hybrid on my '83 Gpz750.


Later, Doug


Brodie

Gold Coast, Queensland
DTT SUPPORTER
brotus said:
Actually thats really interesting. How easy are the suzuki models to interchange. I have a 77 gs400 that would be fun to do if there are direct bolt in swaps.
The 750 and the 500 have the same size forks, I rebuilt the 500 forks and put them into the 750 tree.


focusinprogress

City Limit Moto:Parts-Service-Apparel (716)8038606

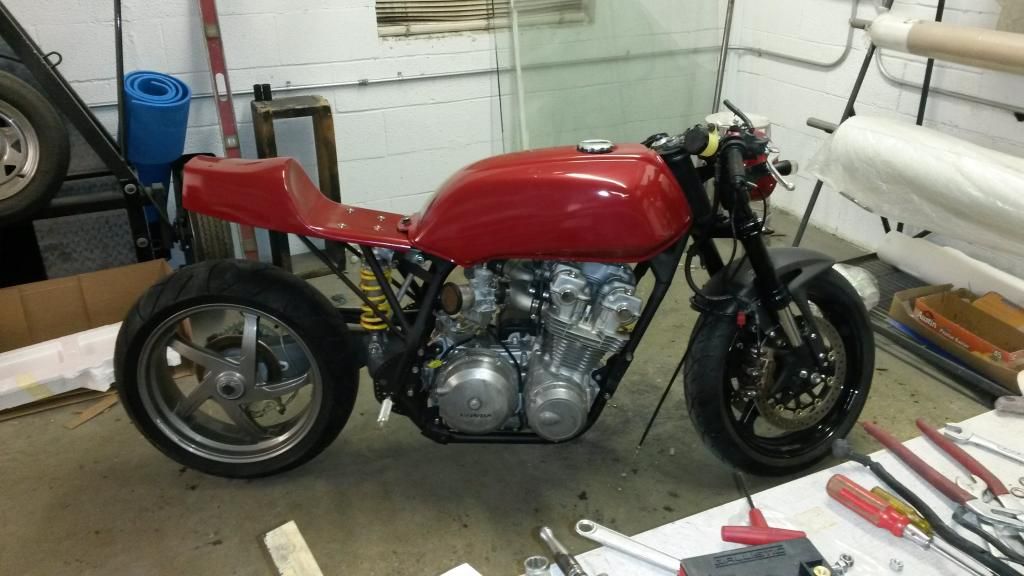

99 GSXR750 front end, with RC51 rotors on my '79 xs750. I machined custom triple trees to correct the offset(and trail), machined a custom axle and spacers to retain stock wheel and speedo drive, and machined rotor adaptors. did some wiring to make the GSXR handlebar controls work as well. 1/4 turn throttle is SWEET!



I'm also putting a 2005 ZX10 front end on another xs750 in a similar fashion, an early inverted zx-7r front end on a cx500, and a TL1000r front end on a cb550.

yes, I'm obsessed with resto-mod cafe racer builds.

I also helped put a suzuki boulevard front end on a cb360.



J-Rod10

Over 1,000 Posts
DTT BOTM WINNER
82 CB750K is 2010 CBR front end. Just about wrapped up with this project. Have the wheels left to paint and get everything laced back up.

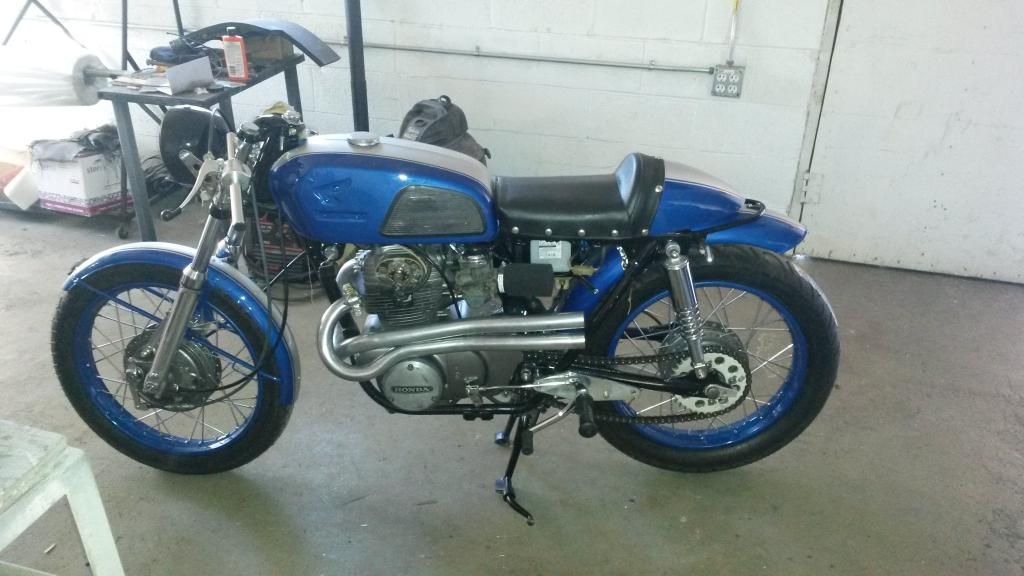

69 CB350T with a R5 front end.


xb33bsa

Over 1,000 Posts
J-Rod10 said:
82 CB750K is 2010 CBR front end. Just about wrapped up with this project. Have the wheels left to paint and get everything laced back up.


69 CB350T with a R5 front end.
thats good work on the 750 but it sure looks low :-\
you would have needed to gain ride height over stock to be classified as an upgrade,did you ?or is it a show bike ?


J-Rod10

Over 1,000 Posts
DTT BOTM WINNER
Bar hopper/show bike. Mainly going to be for zipping around town. It is low, though.


1969Honda

Been Around the Block
shock_mock_upwithbrackets_zps387a5c5d.jpg~320x480

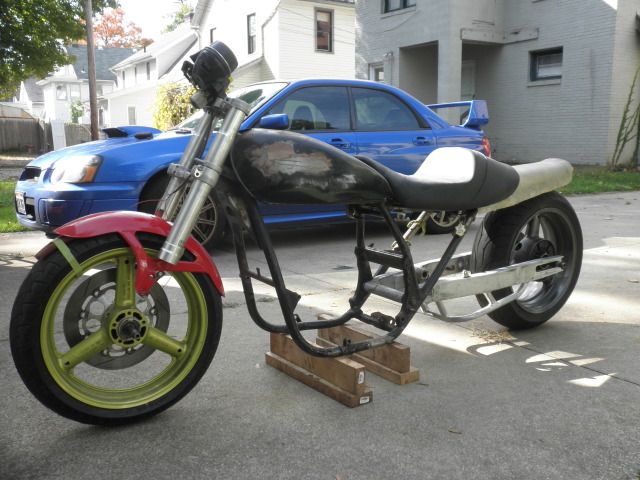

OhioCafeRacer inspired me to do a front end swap almost 10 years ago. While not exactly an uncommon sight anymore, this 1969 CB350 has had the '98 R1 inverted front end on for 8+ years waiting for everything else to come together and a NT650 swingarm with a RVF400 18x4.5 rear (no recent pics on phone) for 4 years now. One day I'll get everything else finished between the Army, kids and work, one day..


spacetiger

New Member
Here's mine, a modified Honda VTR1000F fork on a 1984 CB700SC (Nighthawk). I had to use custom length stanchions on the VTR fork lowers as the NH has very long forks. To get the steering geometry in the right ball park I had to slip the forks up, but it got a little complicated when I used slightly lower rear shocks (oem KYB shocks for the Kawasaki). I had to rejigger the back shock mounting points to raise the back.

It turned out greeat and the bike has proved to be a real hoot to ride.

Jerry


Attachments

  • BB4. top case mounted.jpg_thumb.png
    BB4. top case mounted.jpg_thumb.png
    970.8 KB · Views: 1,073
  • 201. top case mounted.jpg_thumb.png
    201. top case mounted.jpg_thumb.png
    865 KB · Views: 1,027
  • 202. top case mounted.jpg_thumb.png
    202. top case mounted.jpg_thumb.png
    730.3 KB · Views: 907
  • 203. top case mounted.jpg_thumb.png
    203. top case mounted.jpg_thumb.png
    922 KB · Views: 917

1sttimer

Over 1,000 Posts
neevo said:
CB400F with K3 GSXR 750 forks, CBR F3 discs/calipers, Ducati Monster fender:




That looks good! Getting a little off topic, but could you upload a few pics of how you have your headlight ears attached to the forks? Looks like some sort of metal strap?


Trevor May

Been Around the Block
spacetiger said:
Here's mine, a modified Honda VTR1000F fork on a 1984 CB700SC (Nighthawk). I had to use custom length stanchions on the VTR fork lowers as the NH has very long forks. To get the steering geometry in the right ball park I had to slip the forks up, but it got a little complicated when I used slightly lower rear shocks (oem KYB shocks for the Kawasaki). I had to rejigger the back shock mounting points to raise the back.

It turned out greeat and the bike has proved to be a real hoot to ride.

Jerry
Dude has been posting on kijiji looking for a good example of that nighthawk. Want his phone#?
