My little kz440 project

Venderbroeck

New Member
Hello good people of dotheton.

I am new to this forum, which I stumbled upon during my research of the little bike I plan to convert into my vision.
I'm one of those peculiar people that buys a bike to mod before actually getting the license to ride it.
In my defence though, I've been around bikes for quite some time now (both parents rode at some point, now only my dad rides his suzuki and Harley) and I worked on bikes of friends on occasion including a wicked s1000rr.
This project will probably last more than long enough for me to get the license anyway.
I cut my teeth working on modifying cars (both rebuilding anything mechanical, and reverse engineering and modifying software). My fix for the itch for power is a 1994 volvo 850 turbo, which I own for quite some time now. I built the engine, and I'm in a never ending process of upgrading the turbo to something larger.
This will be the first time modifying a bike beyond bolting on some aftermarket parts.

The bike in question is a 1980 Kawasaki KZ440LTD. Many would argue it is not an ideal base for a cafe racer, and I would agree to a certain extent, but it was very cheap and it's what I could find that was to my liking. It didn't run at all when I picked it up, but it was cheap enough not to care too much. I was prepared to fix it up if required.
However the engine ran beautifully after spending 5 minutes to fix some electrical issues (the wiring has become a bit of a mess in its 39 year lifespan). It started instantly, and there's no rattle from any of its four(!) internal chains.
At some point someone put some amount of effort (and money) into modifying the thing to some sort of gaudy chopperesque ehm... creation.
It has an apehanger of sorts, and theres chromed pointy nuts and bolts everywhere.
It's not my thing, but I have to say, it was a fun thing to putt around with on the driveway for a bit.
It has been neglected some in the last few years though, resulting in corrosion everywhere and a general state of rattyness and unsafeness.
Here's a pic of it without the saddle on:



Time to start to put it right.

I have teared it down completely, carefully labeling everything in the process. Some things are still usable, and other things I can adapt for my new build.
It has forward controls for example which look like a good quality set despite their state of decay, so I think I will modify them to be my rear sets later on.
Other plans I have is to redo the entire electrical system of the bike, and bring that to a more modern standard. I will probably design a control box to make this happen.
Once it is more or less completed, and running again I might look into converting it to efi just for the hell of it. I saw a diy efi project (speeduino) that looks promising, and I want to try it out.
Of course these things do not make a cafe racer, but they will contribute to the sleek look I'm after.

Before any of those future dreamings can come to pass there's a big crooked elephant in the room that needs to be addressed.
The rear of the ltd style frame is really not very suitable for the cafe look, so it has to be modified.
I know there are options that don't require modding it, but I'd like to avoid those if I can as they don't appeal to me as much.
Frame modifications are not to be taken lightly, so I'm trying to do this the best way possible.
The plan is as follows (shouldn't be very surprising):



I can tig weld a little, but not good enough to do this kind of work, so my plan is to make the cuts in the frame myself, to make all the parts required for it, and to make them fit perfectly with no gaps, but to let a pro do the actual welding itself.

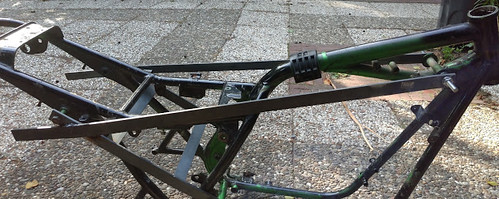

At this point I have made a brace to keep the rear of the frame into shape while it is worked on:



It's made from quite thick steel strips, and the boltholes have quite a tight tolerance, so there is no discernable movement however much I yank it. It has a bit less leverage than the original upper frame rails have due to its angle, but I think it should be sufficient. The only movement I can imagine it making is if the whole thing twisted, but that seems as (un)likely as it is with the original frame rails still in place. It's surprisingly rigid actually. Do you guys have any thoughts? Any pointers are most welcome of course.

I wrote some emails to a few bike shops, but as it is holiday time the replies are only trickling in.
One of the shops insisted that the new parts should be made of chromoly, and charged what I think is quite a bit of cash for the welding (it converts to about 220 dollars).
I'm not sure if chromoly is the best idea, as I don't believe the frame is made from chromoly so it would mean joining dissimilar metals.
Also adding some bracketery would be inconvenient, as it is harder to weld chromoly. Mild steel of sufficient thickness (2mm) would be just fine I feel, but feel free to correct me.
Anther replied that he didn't know what kind of material these frames are made of (does anyone know this?), so he didn't want to risk working on it.
Hopefully I can find someone proficient that can do the work for a reasonable price.

I'll try to log my progress here as much as I can. It will take time, but hopefully it will be interesting to someone.


sandmanred

Member
Welcome and good luck! That looks like a good base bike to me.

I would look for other options than the shop that insists it be chromolly. I don't think mixing metals is a metalurgical concern, I use the same rod for mild as chromolly. I just don't think it's necessary. I think most manufacturers use mild steel. I've built several frames from the ground up and always use mild steel.

Can I offer an opinion about fitting and tacking? I cope my joints but then grind back a bevel all the way around the cope to force myself to get to the root of the weld. If the fit is perfect you can't be sure you are getting to the root. If I was making a coffee table I might prep like you described to get the prettiest weld but for MC frame I want to be sure I get to the root. Maybe find your welding outfit first and get their guidance on what they'd like to see for joint prep?

I think close to 2mm is pretty common and would be okay. To me that's 14g and I've seen mostly that I the bikes I've worked on. I tend to go a bit thicker. The weight is typically of no consequence and my bending methods sometimes leave some scarring that I can safely dress out on 11g tubing (about 2.5mm)


Venderbroeck

New Member
Your opinion is much appreciated and makes a lot of sense. I will discuss it with the shop once I find one, but I'm sure they will agree.
Can I ask you for your opinion on the brace/welding jig? I think it's good, but I may be missing something.

I found a shop that offers pre bent tubing for frames I think I could use as a base. I bet that will be prettier than I could make it with limited tools for bending.
If I do decide to try bending it myself, I'll make sure to get something thicker.


doc_rot

Oh the usual... I bowl, I drive around...
DTT BOTM WINNER
you can mix and match stainless, mild steel, and chromoly. just need to use the right filler rod. Chromoly is not really necessary in most applications. it just lets you go with thinner wall tube while retaining the same strength and rigidity. 2mm is a good thickness for mild steel. if using chromoly you could safely go 1.5mm or less. I don't think that frame brace you constructed will do much as you haven't triangulated the location of the shock mounts, add a portion to connect from the shock mount to the passenger peg mount as well. its easier and better to just weld some scrap metal straight to the frame with some beefy tacks. That being said I wouldnt worry about it too much, both KZ frames I have chopped up were not symmetrical, on my kz750 the shocks mounts were 6mm different side to side from the factory.


Venderbroeck

New Member
Thanks for the pointers.
By adding a strip from the shock mount to the passenger foot peg, wouldn't I just be doubling on the rear lower frame tubes?
I wont be removing the rear lower frame tubes, so they would constitute the other leg of the triangle.
I was thinking about adding a strip at right angles to the current strip connecting it to the passenger footpeg to compensate for the steeper angle the brace makes in comparison with the upper frame tubes which task I want it to take over essentially. My thought process was that in function the brace is just a copy of the upper frame tubes, only it's connecting to a lower point at the front.

Looking more closely at other pictures I have of the area, the connection of the lower tubes to the shock mount may get weakened temporarily during the modifications.
Adding that strip would help quite a bit with that I think.

Of course, worrying about it too much may be unnecessary as you say, but it's an easy thing to make, so I thought I'd give it a shot. Keeps me busy on a rainy day.


doc_rot

Oh the usual... I bowl, I drive around...
DTT BOTM WINNER
You are correct I misunderstood your post. Weldmentss have a tendency to spring apart whe you cut them, so I don’t think you can go too overboard here


sandmanred

Member
I agree with the point that weldements spring somewhat when they are cut. You'll be cutting a triangles apart so they may spring differently. When I look a the picture of your brace I'd be inclined to try to hit point that makes a bigger triangle. I see you used convenient bolt holes to capture the frame but if have a welder a small tack can be made anywhere on the frame that would allow the brace to be placed closer to parallel with the piece you are cutting.


Venderbroeck

New Member
That's quite useful information, then I know what to expect when I cut the welderdements.
I agree that the angle it is making now does give it quite a bit less leverage, and I have contemplated tacking something to the frame, as it would also have been easier than making the holes exactly to the right size.
I didn't do it because I thought that tacking to the frame could already potentially weaken it. Maybe I'm being too paranoid.
I was also doubting that a tack would be stronger than a big bolt through the frame, especially if I keep it small to avoid weakening.
Tomorrow I have some more time to work on the frame, so I think I'll be giving it a good look to see if I can make it better in that aspect.


doc_rot

Oh the usual... I bowl, I drive around...
DTT BOTM WINNER
A couple tack will be more than sufficient. As long as you don’t grind into the original tube when removing the tacks it is totally fine


Venderbroeck

New Member
I had a little more time to play with the frame today, despite the stormy weather.
I was ready to tack stuff to the frame when I found some more convenient bolt holes to use!

How does this look to you guys?

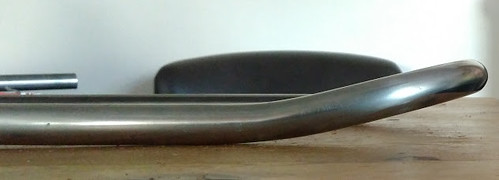

I also bought a pre formed 15 degree upswept hoop that I could use as a base:

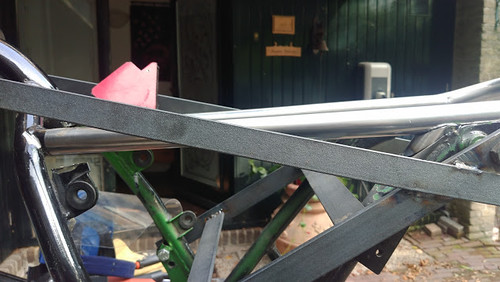

After a bit of massaging (this stuff doesn't easily bend) I got it as close as I could:


Once I cut the frame, I should be able to get it to fit I think.
I'm waiting with that until I find someone that can weld it all back together again in a proper fashion.


teazer

Active Member
DTT BOTM WINNER
The tubes do not need to be chrome moly and there are good reasons to use mild steel - that's what the rest of the frame is.

Just a thought but instead of all that cutting and welding, how about just making a "flat" section for the seat and weld it on top of the existing frame tubes. It won't be as "elegant" but it would be much simpler and you won't need a frame jig to hold it all square and there's a lot less welding involved, so less distortion and less cost potentially.

The seat mount flat section could be tube or just angle iron which is easier to mount a set on.


Venderbroeck

New Member
I thought about something like that to make the seat work. It has a lot of advantages, but I really like the look when it's done the way I'm trying to do it now.
It will be a bit of a learning experience as well, with minimal cost invested so far.
That is also the reason I started with this part before doing anything else. If it all goes pear shaped and it's a total loss, at least the loss will be as minimal as it can be.
Of course I'm trying not to have that happen, which is partly why I'm here.

Btw, thanks for your input on the chromoly. The tubes I bought are mild steel, as others also indicated it would be just fine to use.


Venderbroeck

New Member
Alright, I finally had some time to work on the frame again. After looking at the construction I made I decided it had to do.

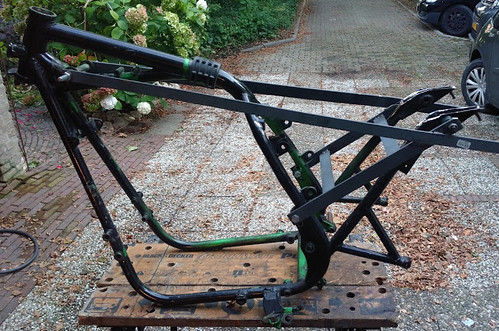

After gathering (quite) some courage I got the grinder out:



It went better than I feared... :p The bracket seemed to function well, nothing seems to have moved.
After removing all the offending parts of the subframe, I set about fitting the new hoop.

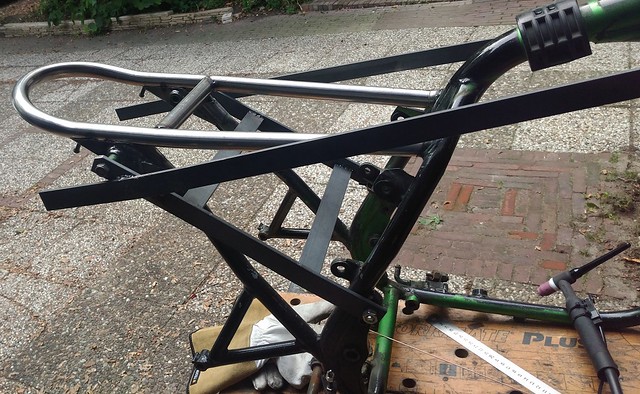

Here's what I came up with up to now:



It's still far from fitting perfectly. I intentionally left extra material everywhere so I can slowly graft in the new piece.
I think I can make it fit quite well when I get some more time to work on it.

I may have found a shop that can help me with the final welding. They told me it would be no problem to just go and tack in all the pieces with my tig welder.
Shouldn't affect anything too much, so I think I'll go ahead and do that once I get things to fit perfectly.
After that it's off to be welded and then the hardest part (for me) will be done.


Venderbroeck

New Member
It seems that my photobucket ran out of bandwidth -.-
I migrated everything to google, so hopefully everything shows up ok again.

I have been working on and off for the last few weeks fitting the frame hoop.
Most of my time was spent slowly mating the hoop to the back shock mounting portion of the frame.

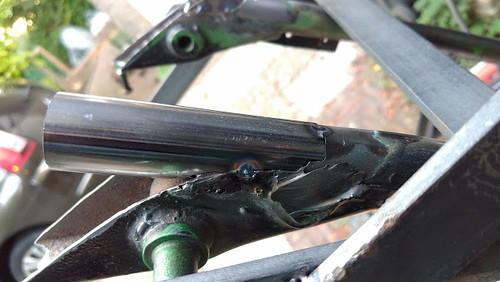

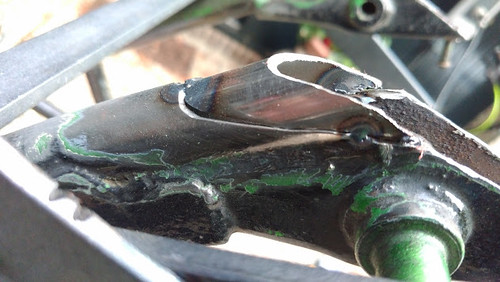

After that was done I made some pieces to fill up the gaps. The first wasn't such a perfect fit, but it should still be alright.


The other side came out much better:

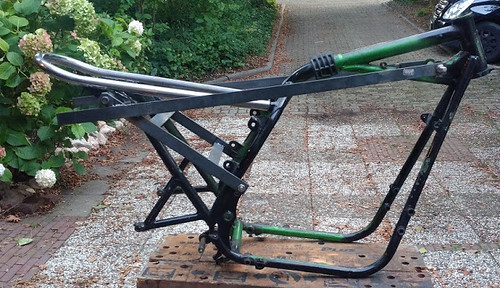

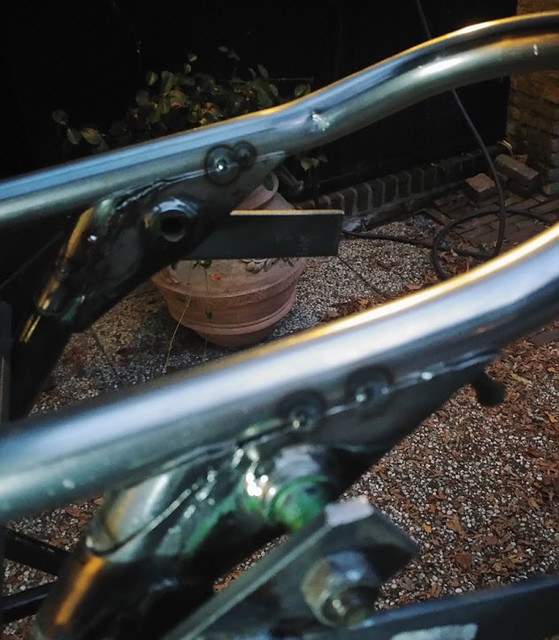

Then came more grinding and fitting, and eventually I ended up with this:



After all that it was finally time to tack the hoop into place today! Unfortunately it was getting dark and my battery was low, so I couldn't take a lot of pics.


This has been a lot of work, but it's surprisingly therapeutic, and in the end I think I've ended up with something that a pro should be able to finish up nicely. ;D
Now I only need to make a bracing tube to strengthens the hoop and give it some additional rigidity, and then I can finally send it out to be welded.


Venderbroeck

New Member
Aaaand google didnt show my pics if not logged in :<
Let's try flickr then. I didn't remember the internet to be quite so sucky regarding sharing pics.

The last thing that remained to finish the frame was a crossbar to strengthen the hoop. For this one I use a tube nothing template generator found here: https://www.blocklayer.com/pipe-notchingeng.aspx
It generates a template based on your input which you can print out. After cutting it out you can tape it to the tube and it will give you the perfect line to follow to make the correct notch. It worked beautifully, and the crossbar fit right up with minimal trimming:

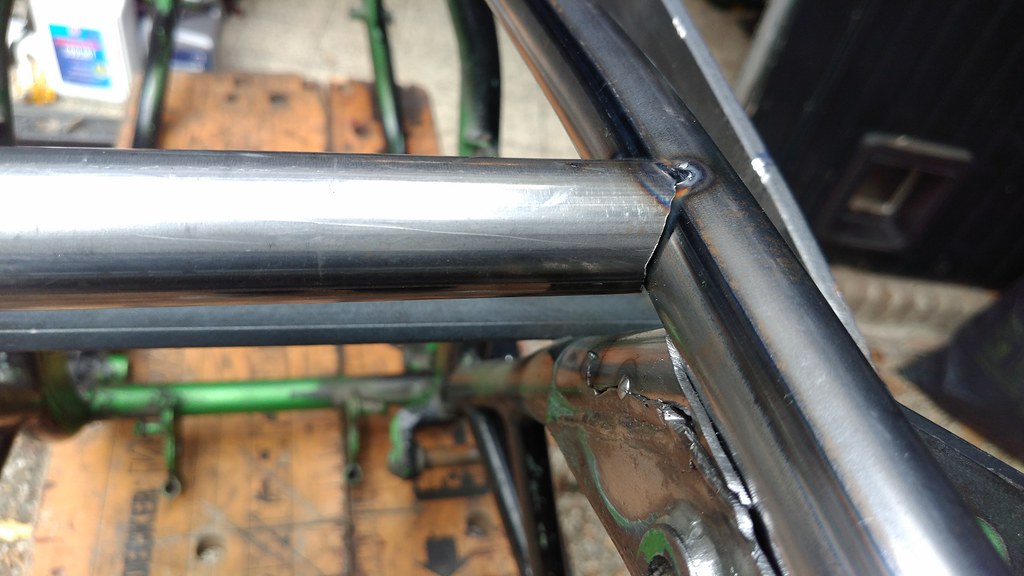

As you can see it fits the tube quite well:

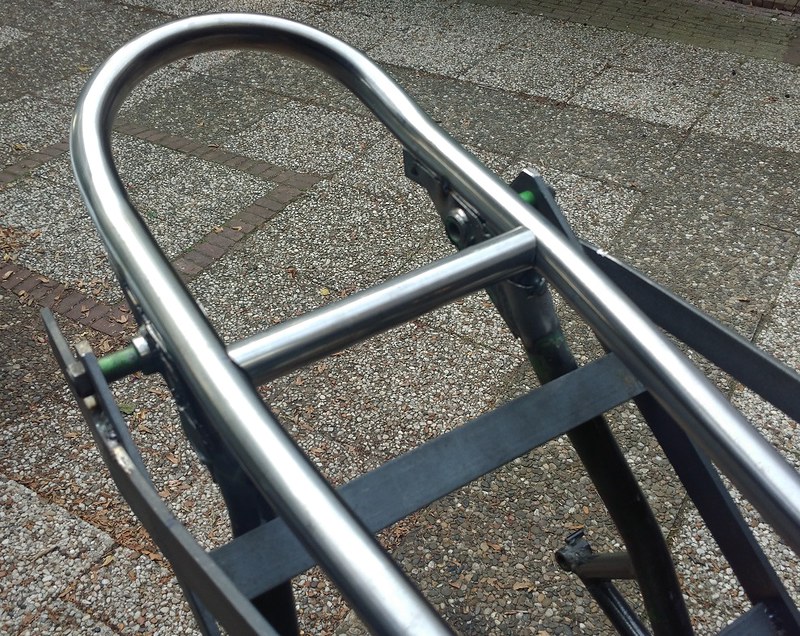

So now everything is tacked up, and the whole thing looks like this:



Time to send it to the welder!
Hopefully he can do his magic soon, and then it's the seatpan that's next on the list to be fabricated.


Pete12

Member
You're doing a great job, and you have a TIG welder - weld it up yourself. I'm sure you could manage it fine.
