XV920R - Fat and Low

MORK

Back at er
danielnordin said:
How did you manage to drill not one, but TWO holes in that sprocket? I'm going for the exact same setup with the nighthawk wheel as you but the front sprocket gives me headaches. Any advice?

I had picked up a set of cobalt drill bits - found a kit of 6mm - 1.5mm on amazon or something. They actually don't show really any wear after, and I had to use multiple steps.

The first hole the machinist tried and broke a bit so I had a pilot to start and that one cut through fairly easily curling off the metal until the back side and it more or less chipped away at it sending fleck of metal out rather than a nice ribbon.

It took an hour and a half of switching up bit sizes and boring out the smaller holes. I dont want to ever do it again.

Cutting oil, patience, and time are your friend. Once the sprocket started heating up, it seemed to take longer. The 2nd hole took forever compared to the first.


MORK

Back at er
Removed some paint on the rear wheel to match the front. I think I made the right choice over all black.

Chain rivet tool arrives today so should be rideable tonight...



MORK

Back at er

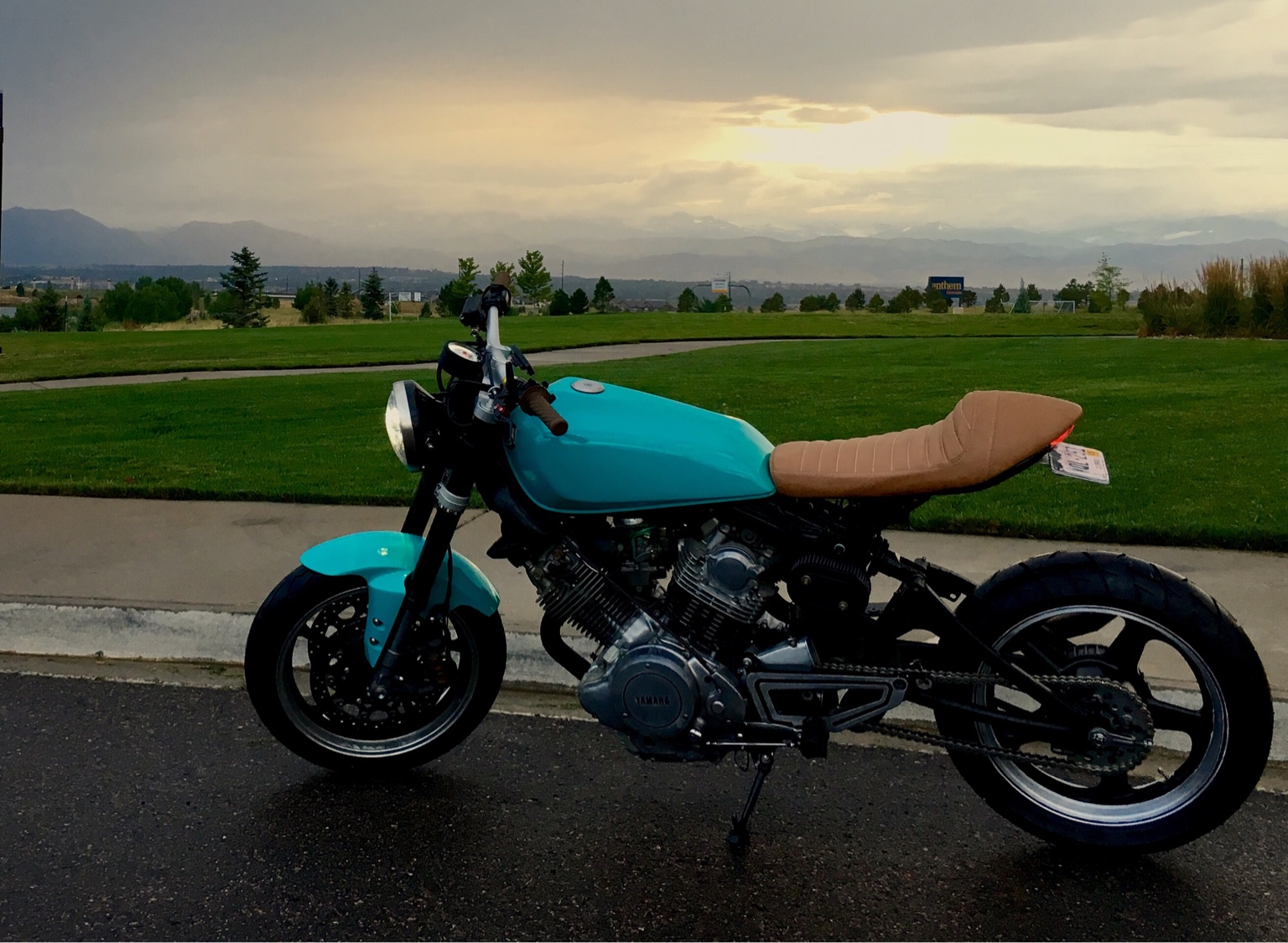

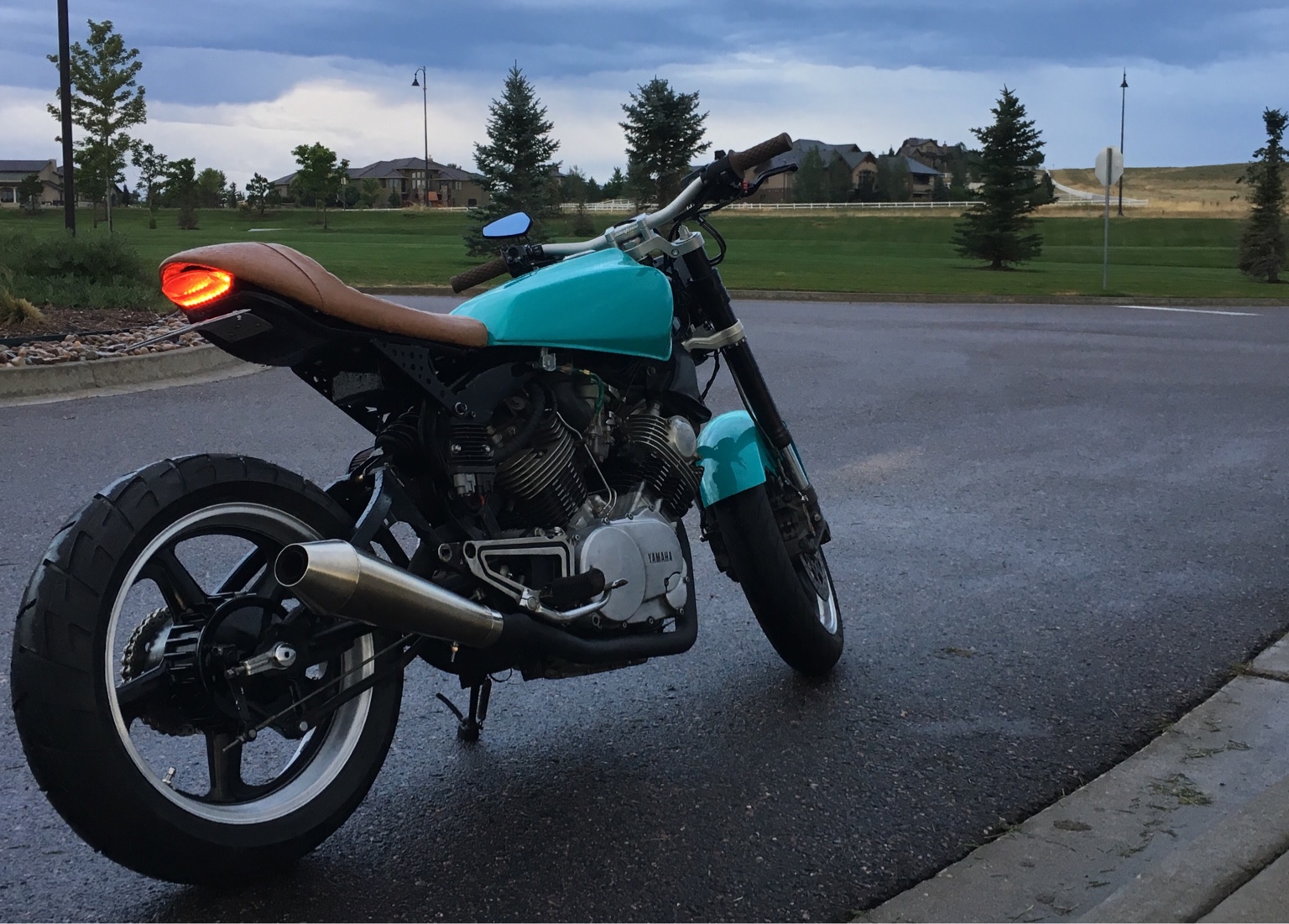

Took 'er around the block and filled up the tank. I'll probably back out the preload on the rear and still have a few finishing touches, but oh man... that is a satisfying feeling.

Doesn't feel fat in the slightest anymore. And... there has been considerable effort in making it not low (like every Virago cafe build) I will have to think of a new name.


MORK

Back at er
It's raining. I have a freshly completed Virago cafe bike. Let's ride! (Said no one ever...)





MORK

Back at er
It had a bit of a stumble on heavy acceleration last night. New AP63's gapped at 0.028 and eliminated all vacuum lines to the mixture controller.

Still some very slight hesitation, but it's almost all gone.

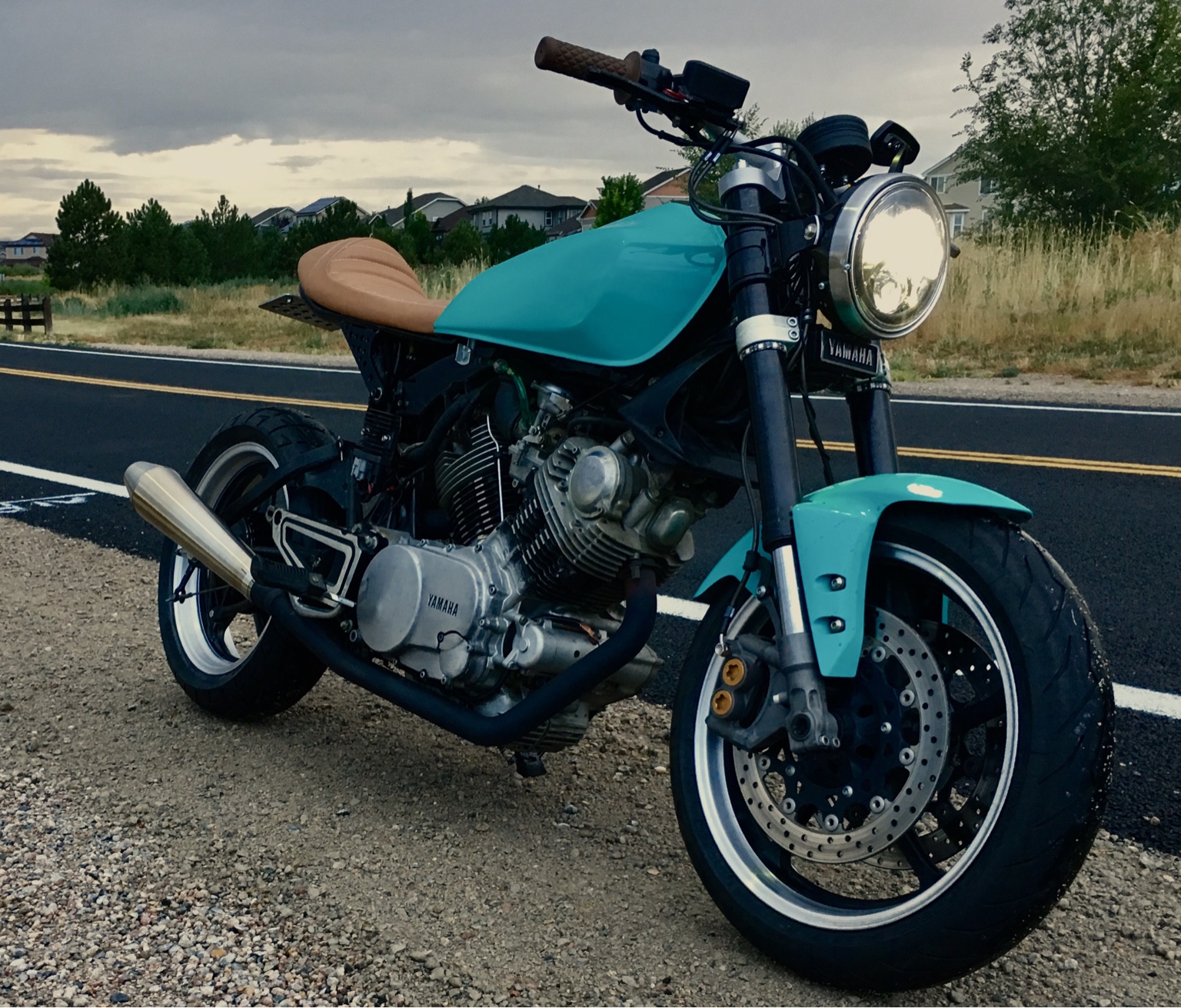

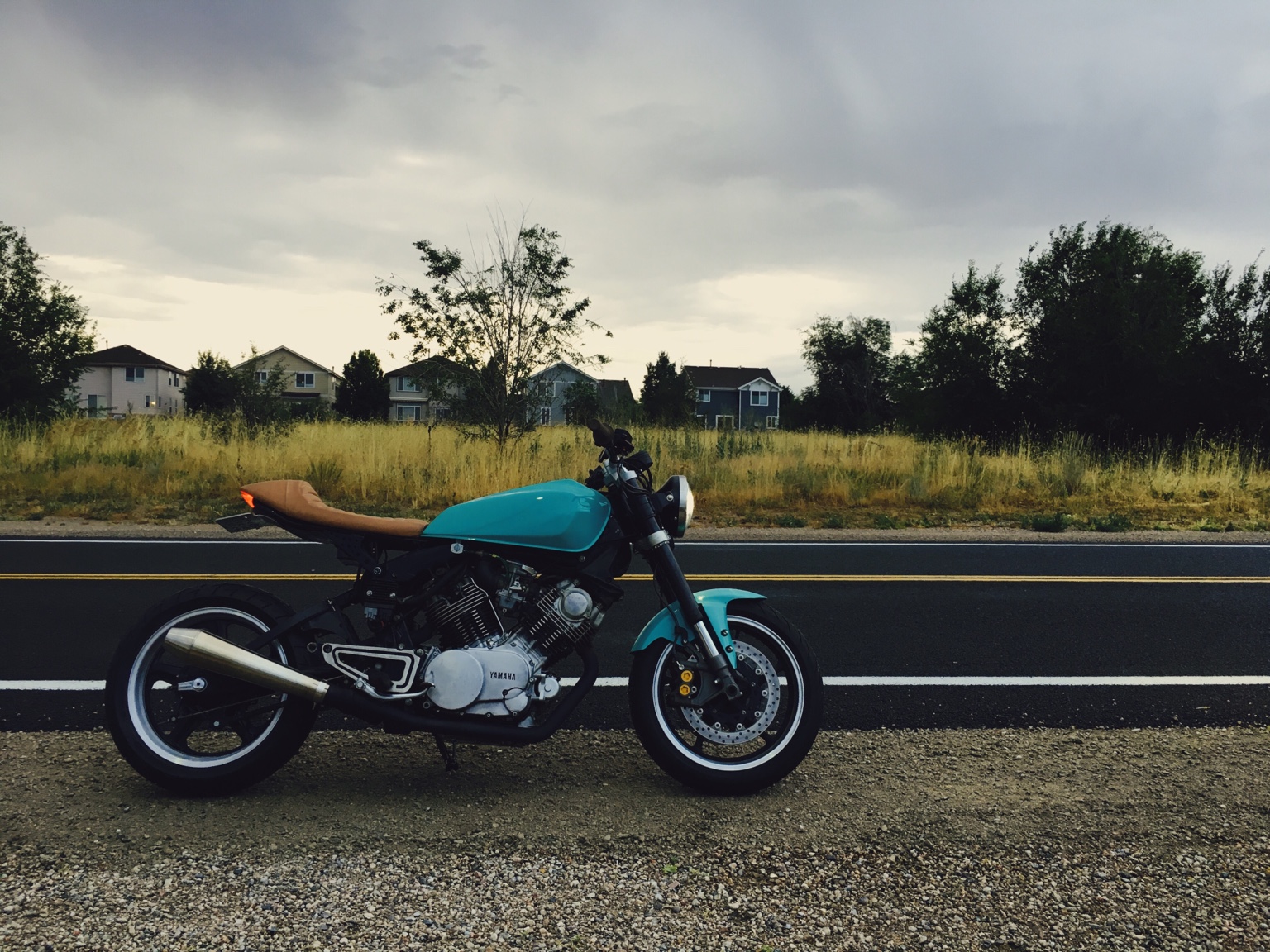

Also a couple of the other pictures from last night.





MORK

Back at er

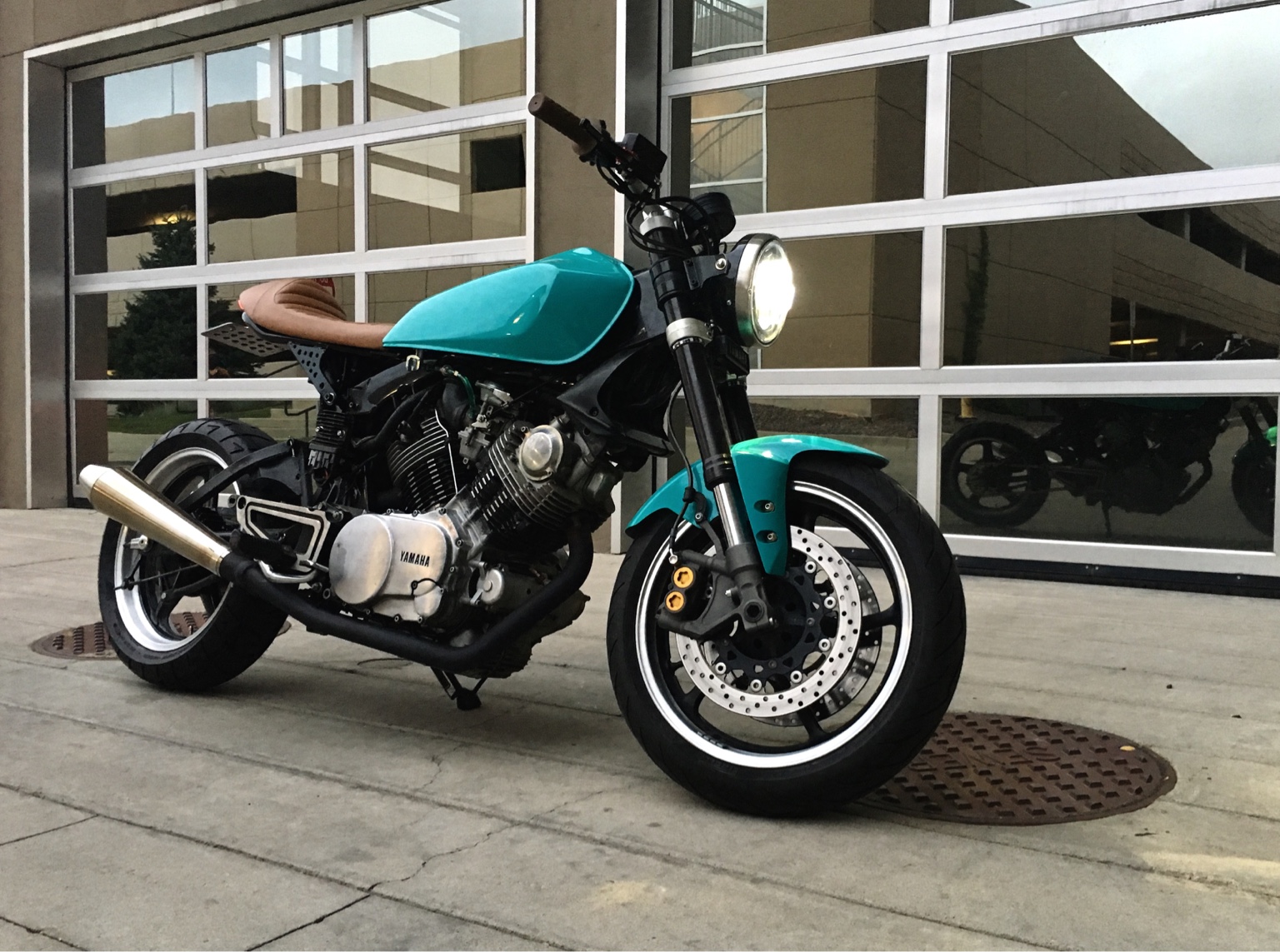

This is also one of my favorite garages built by a friend. In a corporate development you take a back alley between a pizza place and an office building, go through the service alley and there is this hidden driveway. Three double doors lead to a full bathroom/shower and kitchen/coffee bar and a back elevator up to the big corner office.


MORK

Back at er

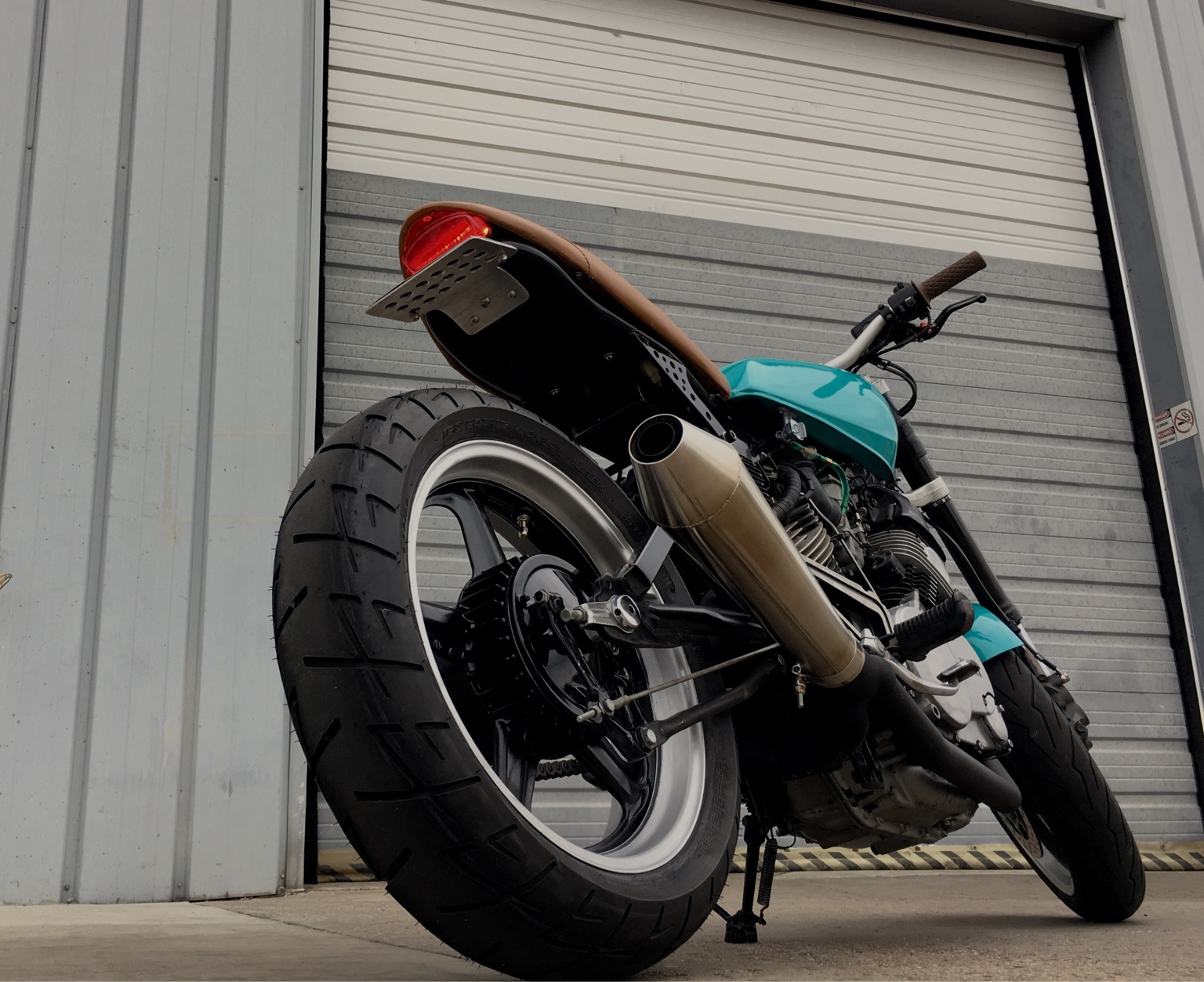

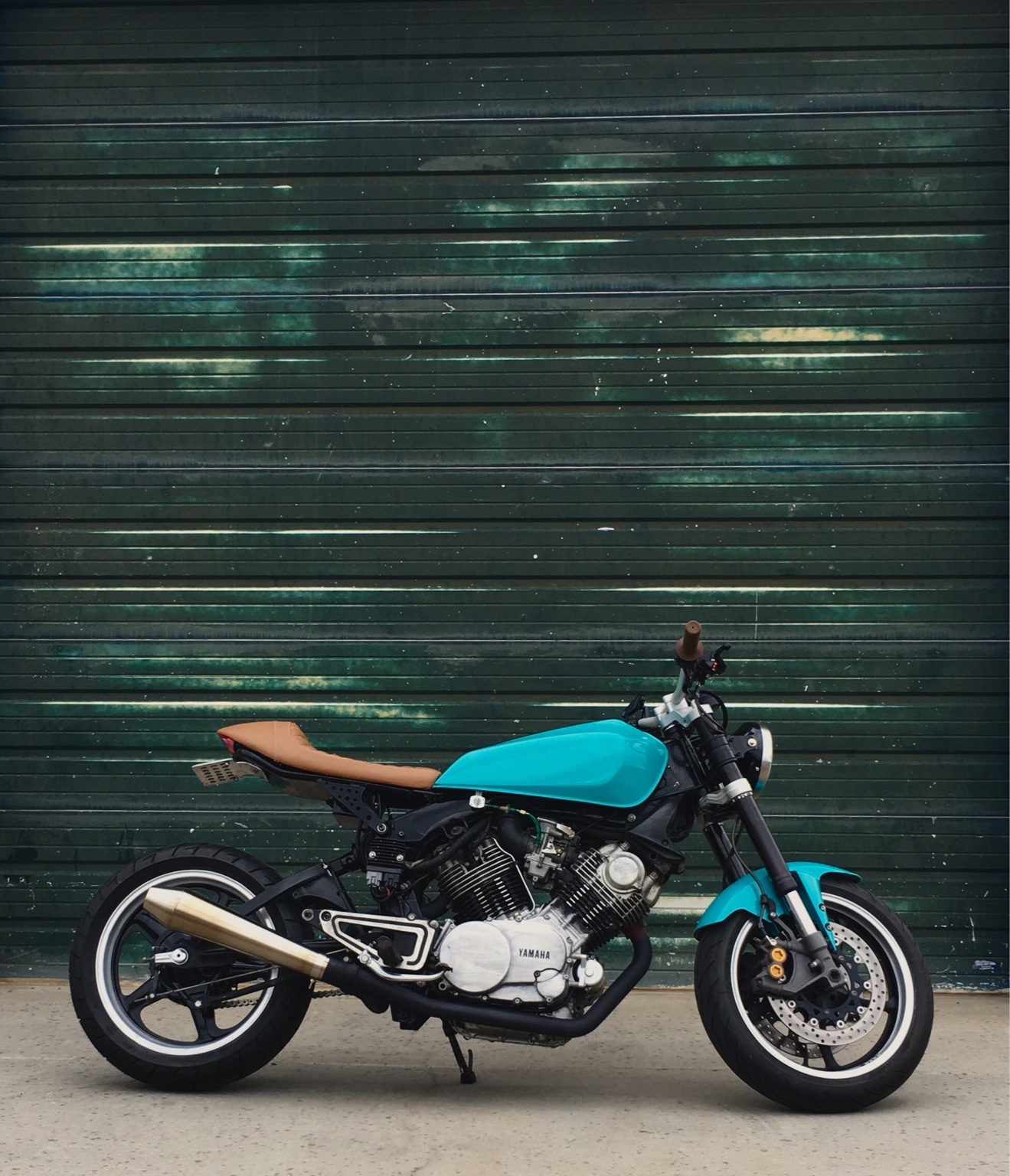

Is that a weathered garage door? Hot damn, I better park my recently completed bike next to it and take a picture immediately.



JAGspeed

Been Around the Block
DTT BOTM WINNER
Pics of the bike look great! How did that 17/34 gearing work out? Trying to figure out what gear to run on mine.


MORK

Back at er
JAGspeed said:
Pics of the bike look great! How did that 17/34 gearing work out? Trying to figure out what gear to run on mine.

After mounting everything, I went with 17/36. There isn't quite enough clearance for the 34 in the rear. I already shaved the swingarm enclosed drive mount tabs and the front sprocket housing, and while the chain could fit, any deflection would put it into the case and the swingarm.

17/36 is actually just a hair taller than the factory ratio even with the 17" wheels.

I don't feel that it's spinning all that high at all - if I were commuting on it on the freeway for extended amounts of time, I'd go 18. I might try and see what the clearance is like for an 18/34 if I try and attempt anything like a multi state trip. That could make 75mph highways comfortable I think.


LazyOx

Why try harder if you are #3
The bike looks sweet, the rims with the metallic edge really complete the package, hope it rides as good as it looks.


MORK

Back at er
LazyOx said:
The bike looks sweet, the rims with the metallic edge really complete the package, hope it rides as good as it looks.

Thanks - it rides fantastic. Torquey, really tight feeling, and surprisingly flickable.


MORK

Back at er
LazyOx said:
Mork, where did you get the Upper Yoke?
I think I need that for my R6 2011 front end so I can get the nose of my TR1 up.

It’s from cognito moto. Wonderfully well machined piece. I went with their 1 1/8” bar clamps as well if you are looking for real bars and not clip ons.


MORK

Back at er

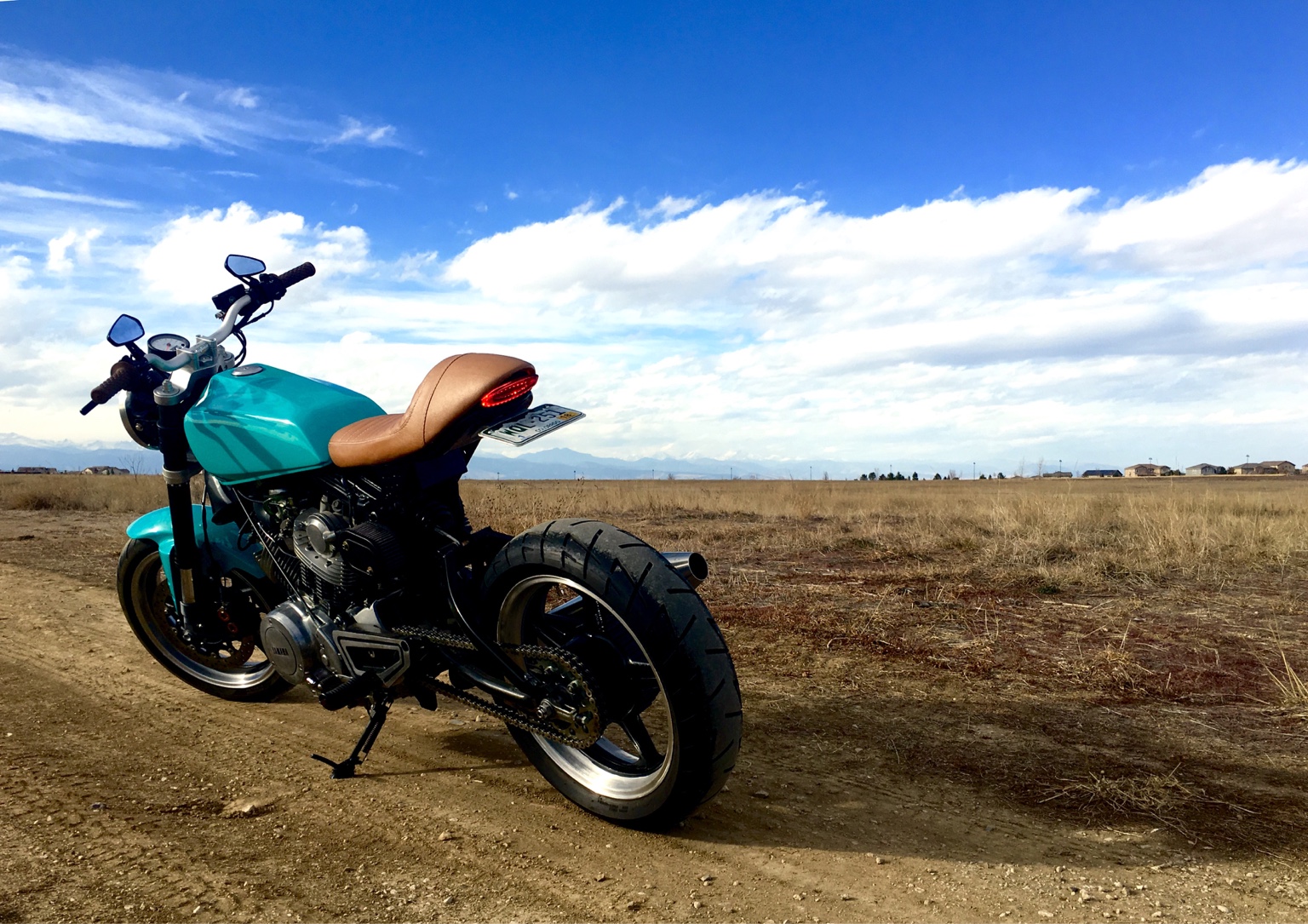

Winter is coming tomorrow and I needed an excuse to keep a nice charge on the battery.

Also, anyone have any particular battery chargers/tenders they like specifically for li-ion?


MORK

Back at er

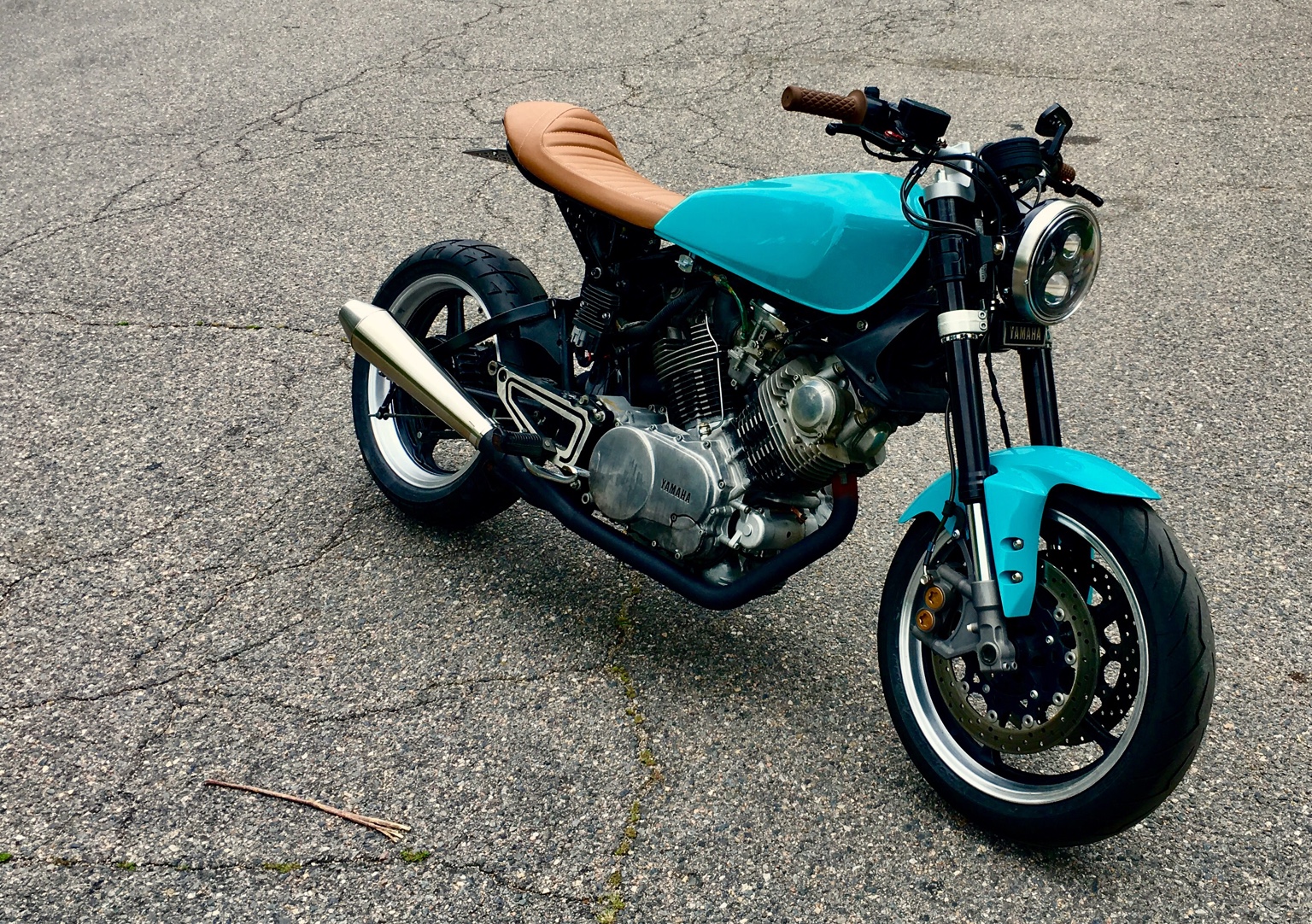

Been a while since I allowed some interneting time. I’ve actually posted the bike on Craigslist, but I imagine it will take a while to find the right buyer (everyone seems to like black or red bikes around here) I just don’t ride as much as I would like, and I really would enjoy putting some more effort into the BMW (which I can’t sell)


Attachments

  • IMG_6617.JPG
    2.6 MB · Views: 213

woodsv

New Member
nice job! love the colors Iincluding the contrast between the seat and tank. I just use a Genius charger cus I have a bunch of different bikes with batteries that need preserving. I like the fact that I just clip it on the terminals and walk away!
