Lets see your front end swaps!

Kanticoy

Mad Science!
DTT BOTM WINNER

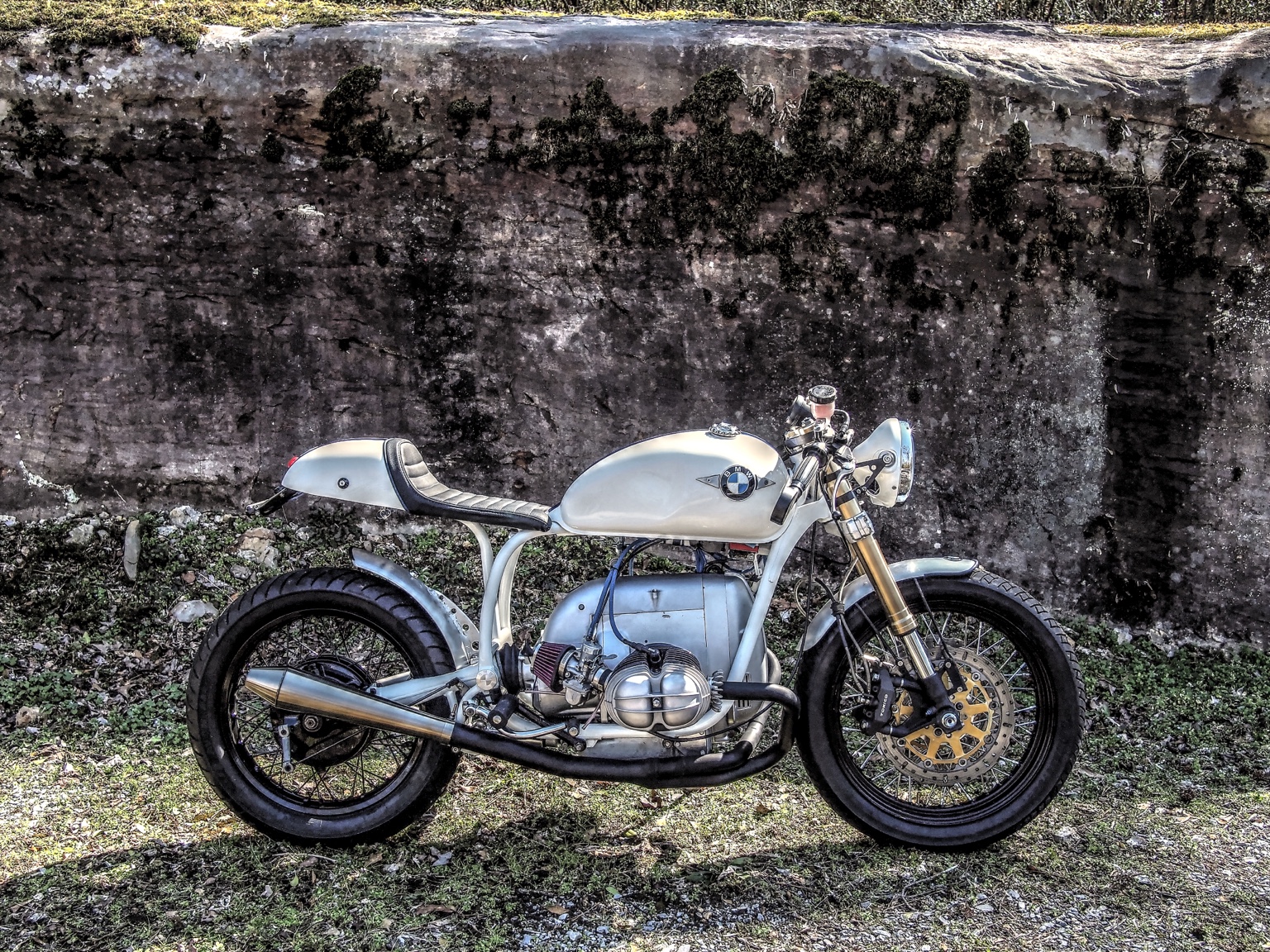

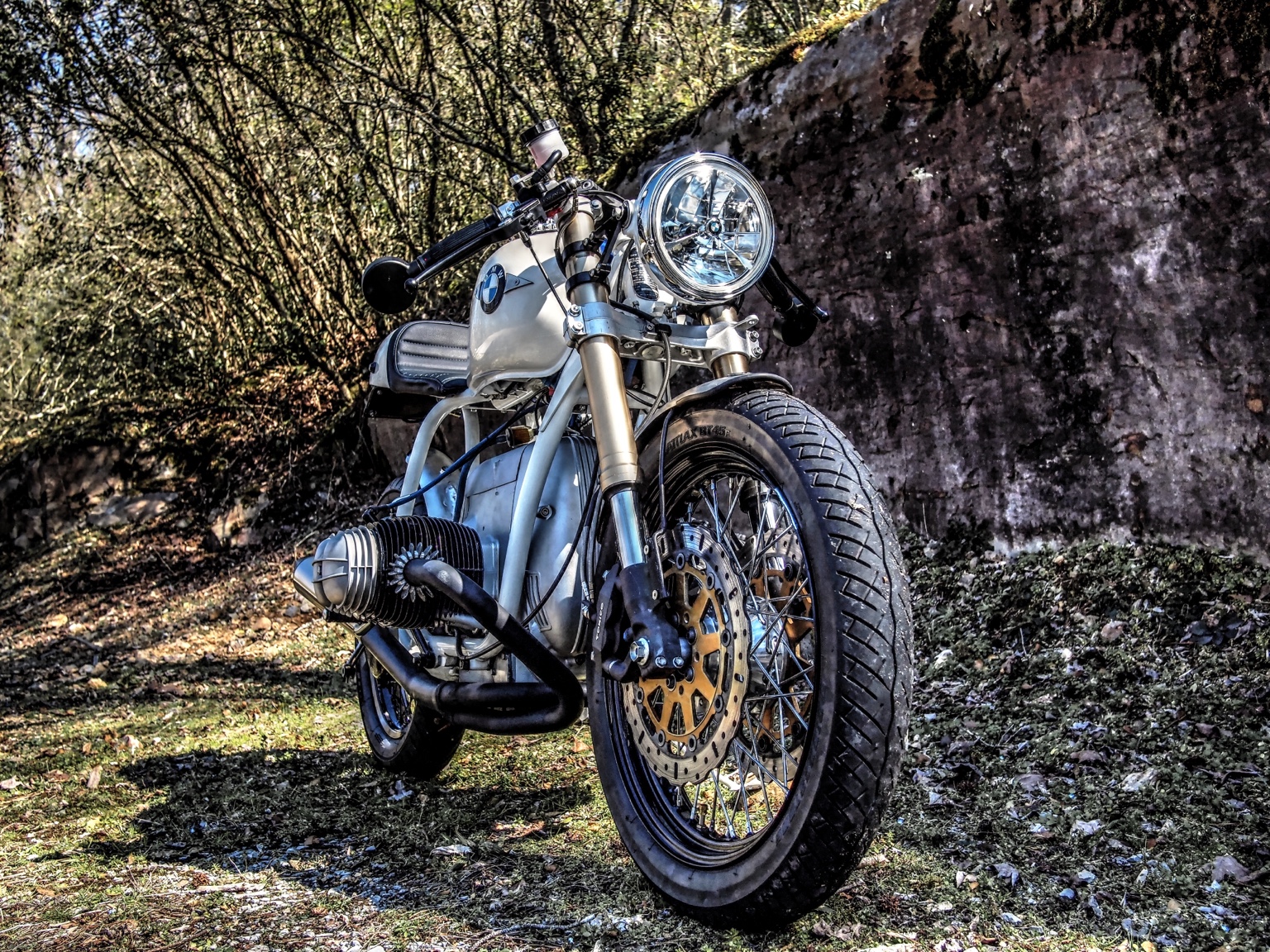

2007 GSXR 600 forks on a 76 BMW r90. Custom front wheel and brakes with a handmade fender. Rides like a dream.




Sent from my iPhone using Tapatalk


Spondon83

New Member
grcamna5 said:
Spondon,You can ride that SR hard w/ no fear of bottoming those nice forks.

Right you are! I'd like to look into shortening the tubes (if possible) and I still need to sort out what rear shocks are in my future.


J-Rod10

Over 1,000 Posts
DTT BOTM WINNER
Kanticoy said:
2007 GSXR 600 forks on a 76 BMW r90. Custom front wheel and brakes with a handmade fender. Rides like a dream.




Sent from my iPhone using Tapatalk

That looks stellar.


focusinprogress

City Limit Moto:Parts-Service-Apparel (716)8038606
that BMW is PHENOMINAL

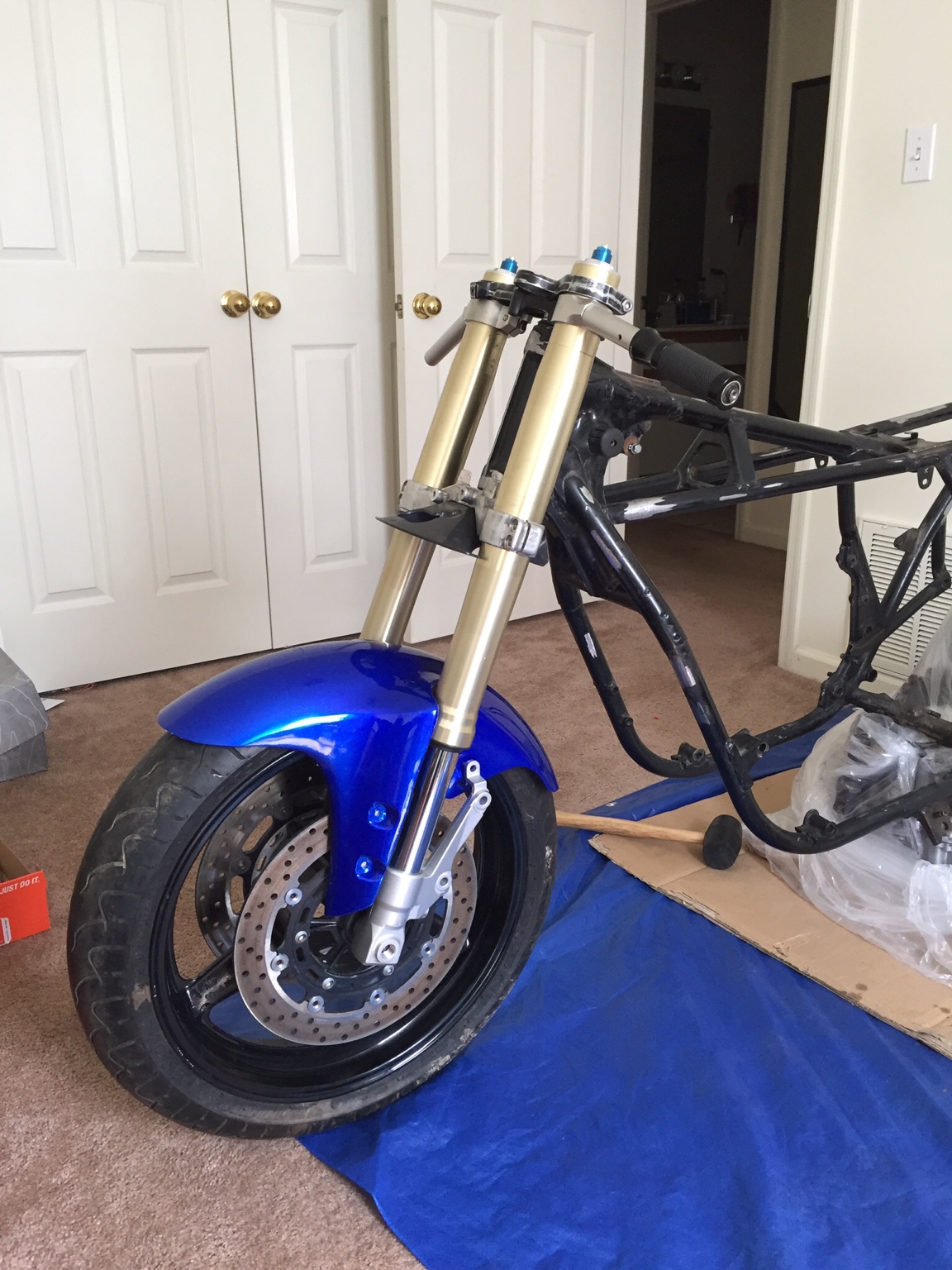

I'm currently working on a zx9 front end grafted to a 1981 cb750 custom that I cafe'd with an xs750 tank.



wanted to retain the speedo drive to avoid going digital speedo, so I came up with a multi-piece spacer setup with a toothed sleeve that moves the speedo driver all the way to the fork leg so I have room for the rotor adapter and 320mm rotor.



the toothed piece is 2.5mm shorter than the inner bushing it rides on as shown here before being slid over the other spacer, these will be greased to hell and a bronze sleeve added between







and to cover the drive extension, an old fork dust boot from a cbr600rr I just replaced seals on was a perfect fit.

(tough to see since everything is black)



rotor adapter is next, started on it last night on the lathe...only have about an hour into it with quite a bit to go but I'll update here after I finish the fab work.


Kanticoy

Mad Science!
DTT BOTM WINNER
Nice work focus! That looks the trick! And yeah, the stance is just right. And the brakes....whoa!




Sent from my iPhone using Tapatalk


Kanticoy

Mad Science!
DTT BOTM WINNER
focusinprogress said:
I'm really digging the fender treatments too. The color is pure class. well done!

Thanks Focus! I love your speedo drive mod, that's brilliant!


Sent from my iPhone using Tapatalk


Tune-A-Fish

BOTM LOSER Proudly Deplorable
One of the nicer beamers I've seen by far. The photo is cool too.



Build thread? I would be interested in the front wheel lashup for sure.


xb33bsa

Over 1,000 Posts
that is sweet j rock !! the tars remind me of conti twins, but you nailed it you kept it slim,its not all wide n fat , bravo sir bravo :D

on a side note i am just finishing up my first complete ready to roll ,ready to bolt on front end kit to be for sale

kinda tracker style 35mm xl/sl350 forks,all they need is oil
akront 19, with the 160mm sl twin cam hub

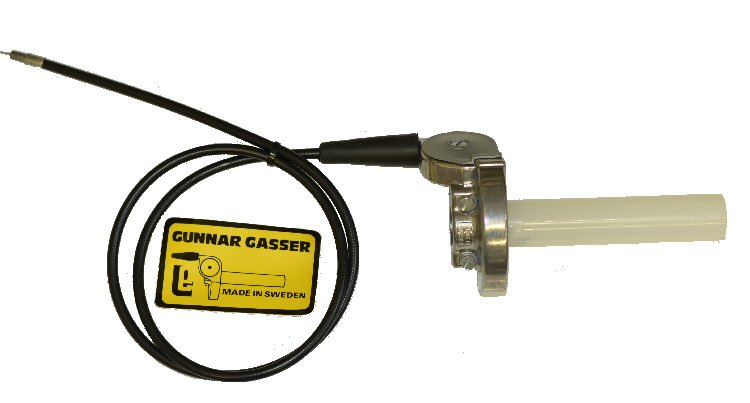

renthall,amal/bultaco/montessa levers,gunnar gassar throttle, throttle , artsy fartsy puddled bronze dripping headlight lashup, speedo brake cable and a lil winscreen ,tc120 cat hi fender with dents slightly bent as well
leave just enough polishing and wiring ,switchgear work to keep bidders interested but all they need is all balls or ill switch out the stem for 'em :D


wolfeman28

New Member
Tune-A-Fish said:
Looks too steep almost tucked. What is the body?

Sorry for the late reply. It's just the photo angle that makes it look odd. Fairing was from Airtech, don't remember the exact model. Had to be cut up quite a bit, but that's how fairings go.




kmcphee

Active Member
'79 cb650 with GSXR 600 forks, Cognito Moto front hub & top triple with Moto gadget guage :)


Attachments

  • excel rim with tire 2.JPG
    excel rim with tire 2.JPG
    139.1 KB · Views: 1,450
  • cb650 exhaust 1.JPG
    cb650 exhaust 1.JPG
    140.3 KB · Views: 1,487
  • cb650 front machined hub polished.JPG
    cb650 front machined hub polished.JPG
    92.7 KB · Views: 1,495
  • cb650 front end on 2.JPG
    cb650 front end on 2.JPG
    110 KB · Views: 1,532
  • cb650 rear rim.JPG
    cb650 rear rim.JPG
    163.1 KB · Views: 1,480

underdogauto

New Member
erock85 said:
Not exactly a new concept but here's my 74 CB360 with 2008 GSXR USD forks
What front wheel are you using? And what size? I would live to do a similar swap on my 82 cb750 but didn't think I could run a spoked wheel.

Sent from my LGMS631 using Tapatalk


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
underdogauto said:
What front wheel are you using? And what size? I would live to do a similar swap on my 82 cb750 but didn't think I could run a spoked wheel.

Sent from my LGMS631 using Tapatalk
What's the bolt pattern for the rotors on the 82 hub? For the SOHC, a 95/96 YZF600R rotors bolt right up, plus a spacer to match the width. Then just find a bearing with the matching ID and OD for that axle.


underdogauto

New Member
irk said:
What's the bolt pattern for the rotors on the 82 hub? For the SOHC, a 95/96 YZF600R rotors bolt right up, plus a spacer to match the width. Then just find a bearing with the matching ID and OD for that axle.
I'm not sure I'll have to look. How does one measure? I don't have twin front rotors though. I guess just running one would still be an upgrade over my single pot.

Sent from my LGMS631 using Tapatalk
