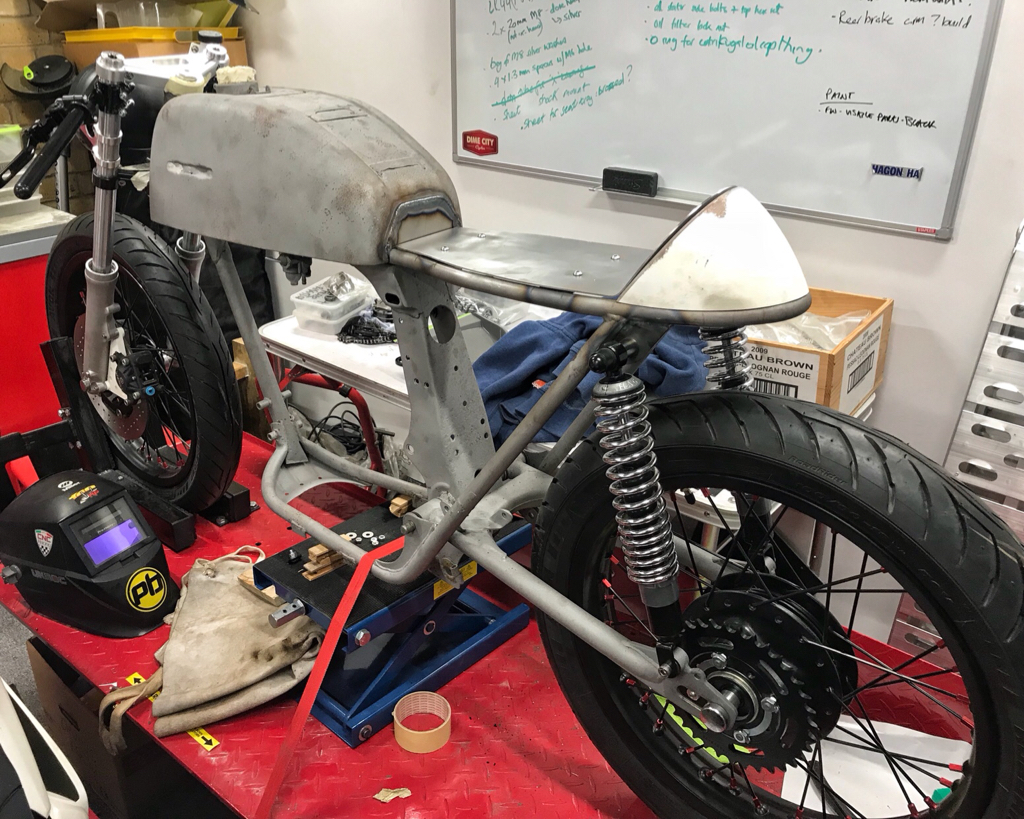

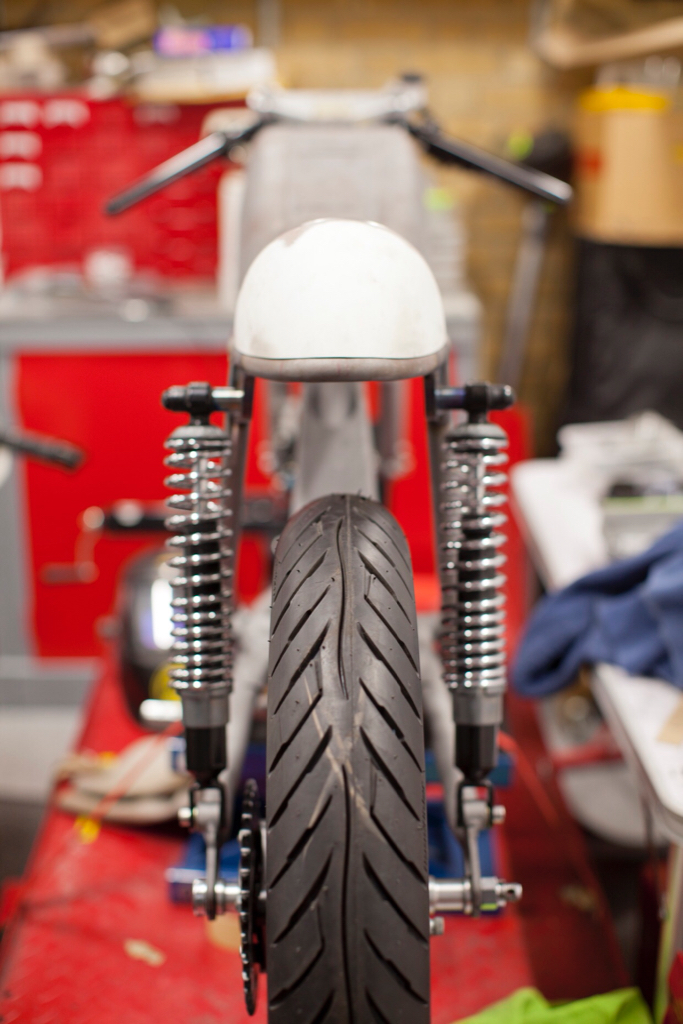

Decided to hack apart my seat unit after all this time, as the shape wasn't quite doing it for me anymore and when I figured out how I wanted the seat upholstery to look I realised I couldn't do what I wanted using it as it was. It's quite funny because the seat unit and cowl led the design from the start, but, design evolves and here we are. I think it's looking much better now by following the lines of the new frame. I'll be making a seat pan next.

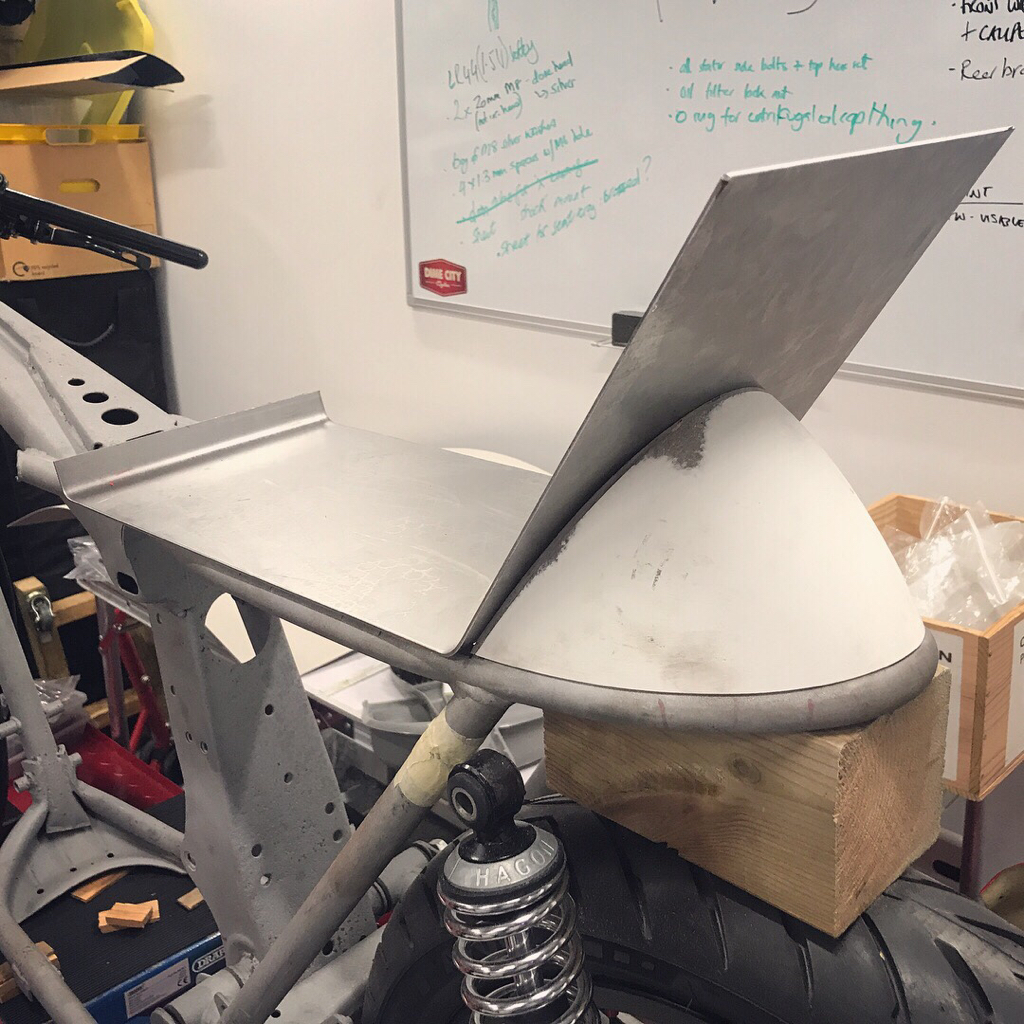

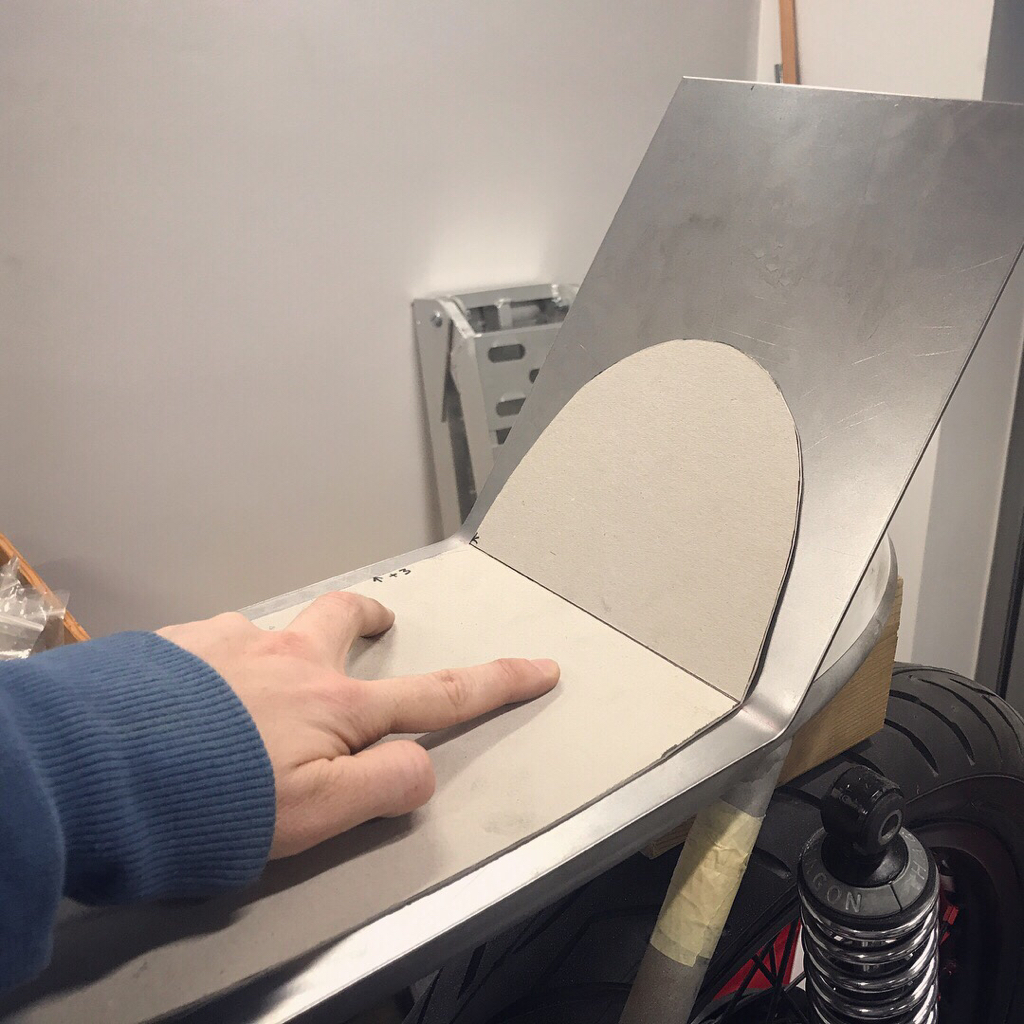

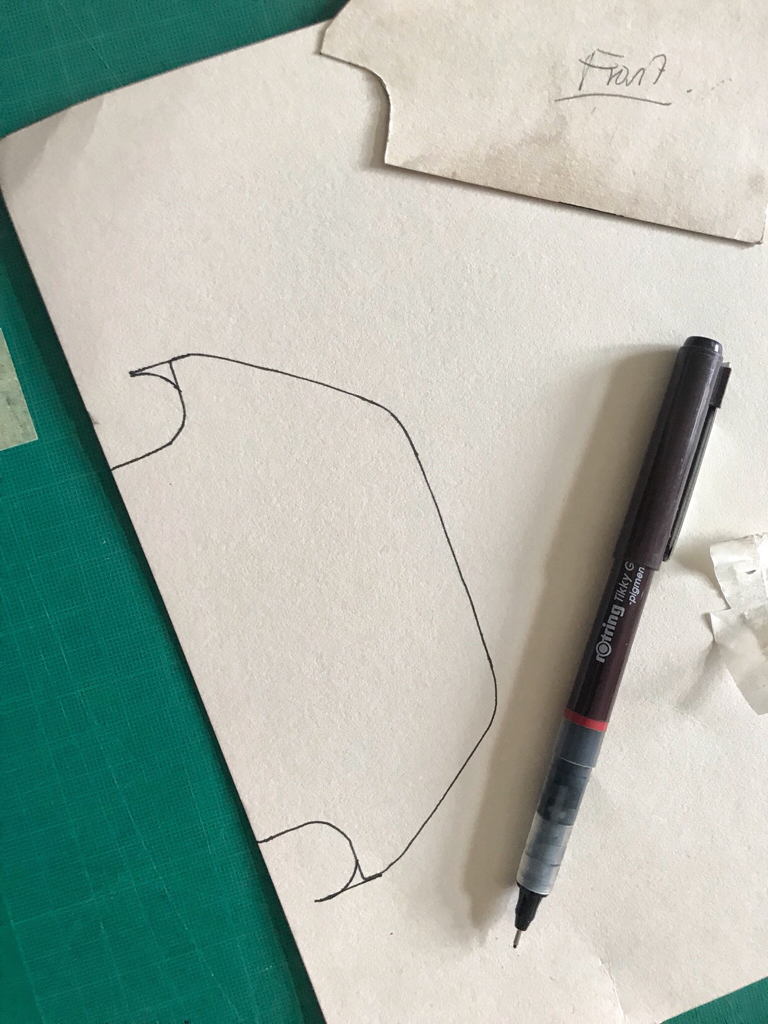

Chopped up the unit, cut new lines and re-glassed the original bum stop back on. I made a pretty sloppy paper template along the way to try and check the looks.



[bex]

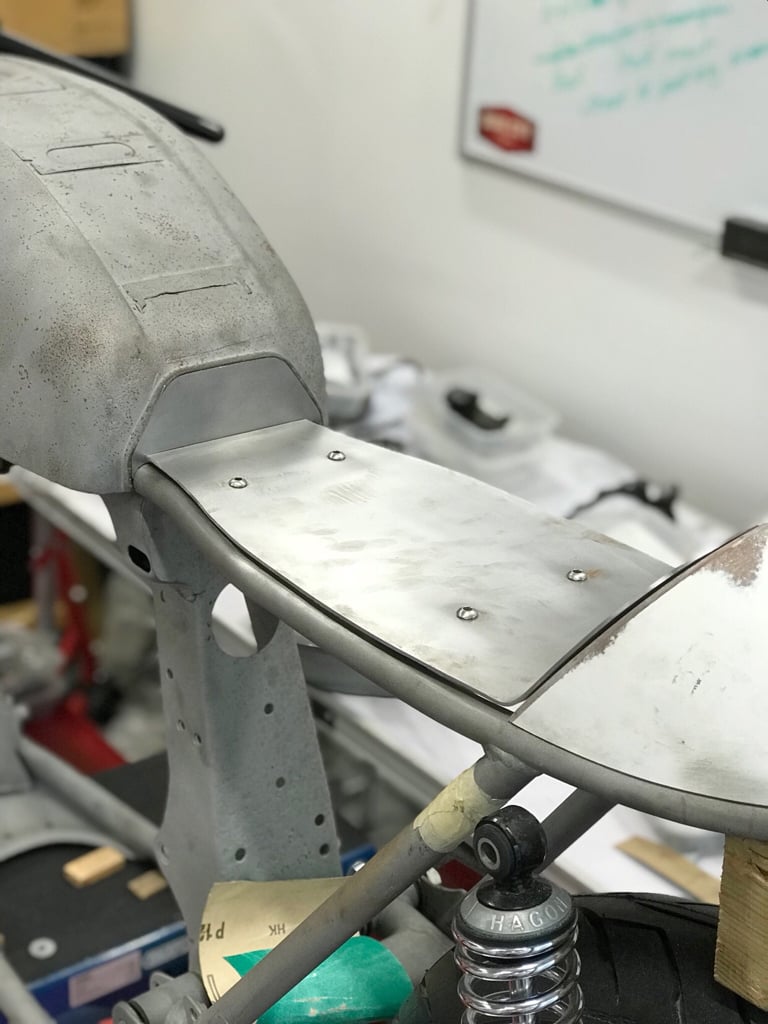

Started on my seat pan



[furu14]

I think it loocks better now when the lines from frame to seat lines up.



[bex]

Yeh, me too



[bex]

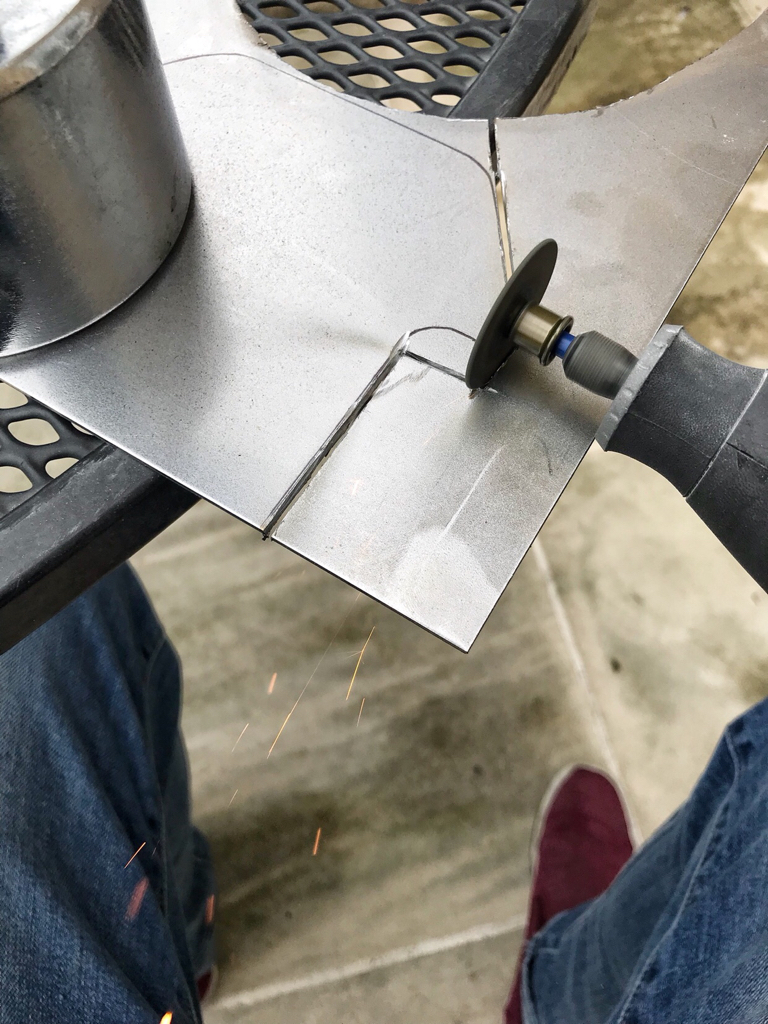

Rough cut



[bex]

Tidied up.



[bex]

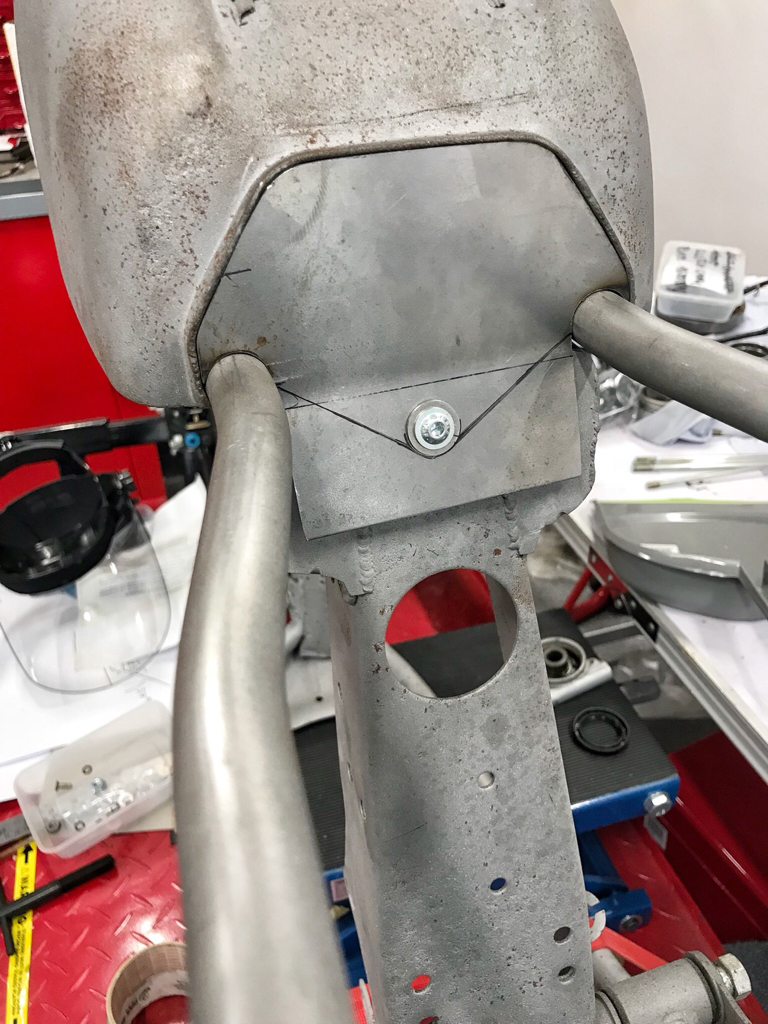

Now making up the cap for the tank, also serving as my tank tie down. Might need to factor in some space for vibration between tank and frame I guess.



[bex]

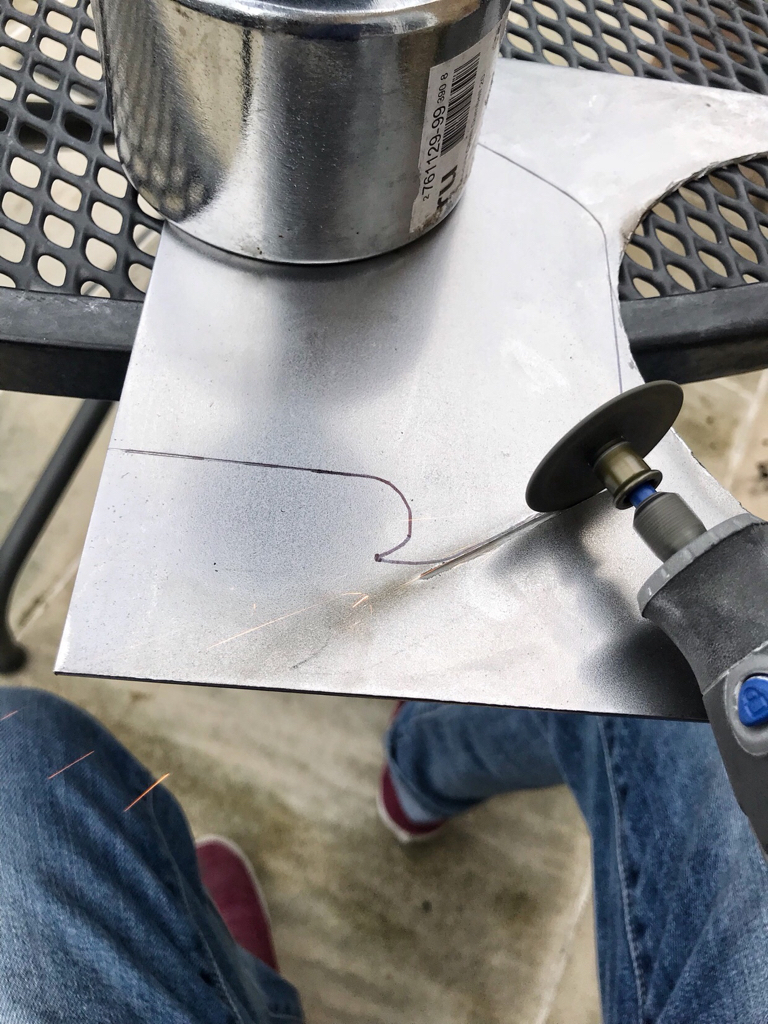

Shock mounts machined after a couple of rounds 3d printing / prototyping. I might drill some points for indicators in them as well.



[Alex jb]

Looking good.

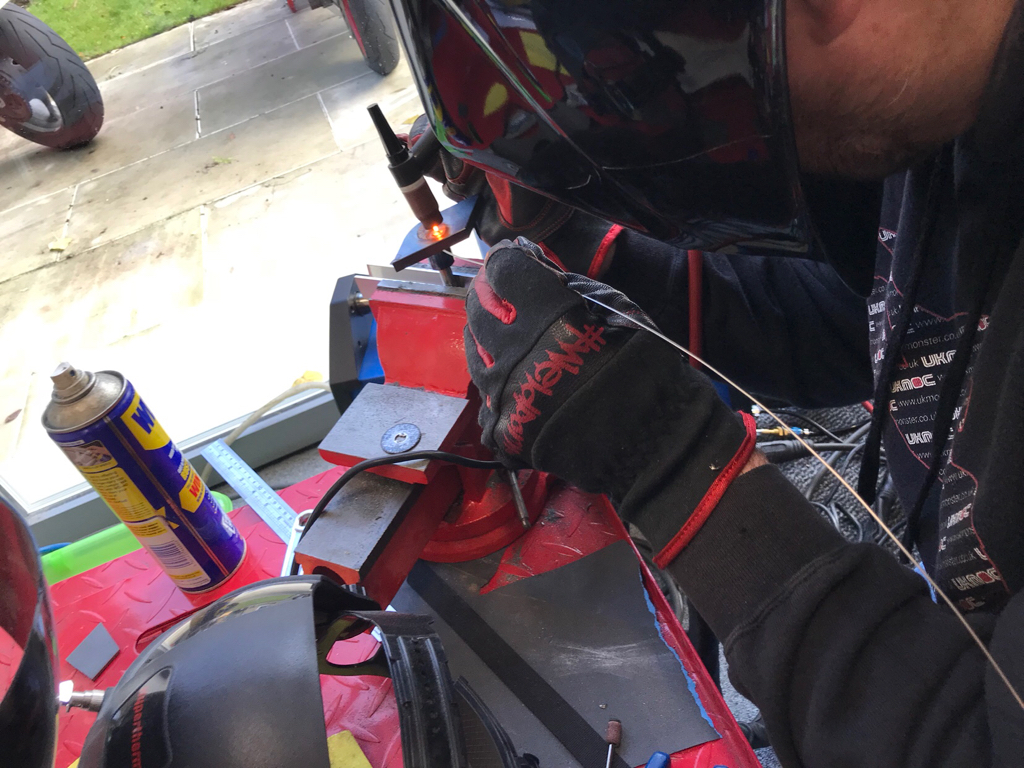

Are you welding the turned parts from the back?


Sent from my iPhone using Tapatalk



[bex]

Looking good.
Are you welding the turned parts from the back?


Sent from my iPhone using Tapatalk

Yep!



[tech54K]

thanks for sharing this DIY!



[bex]

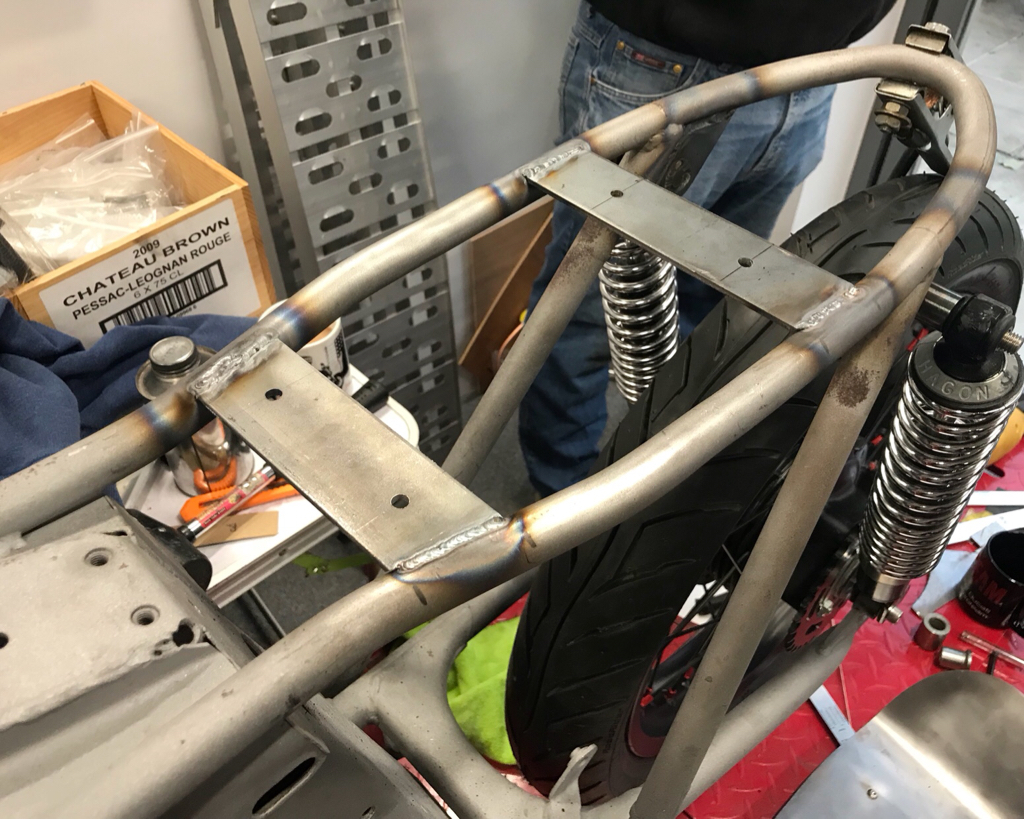

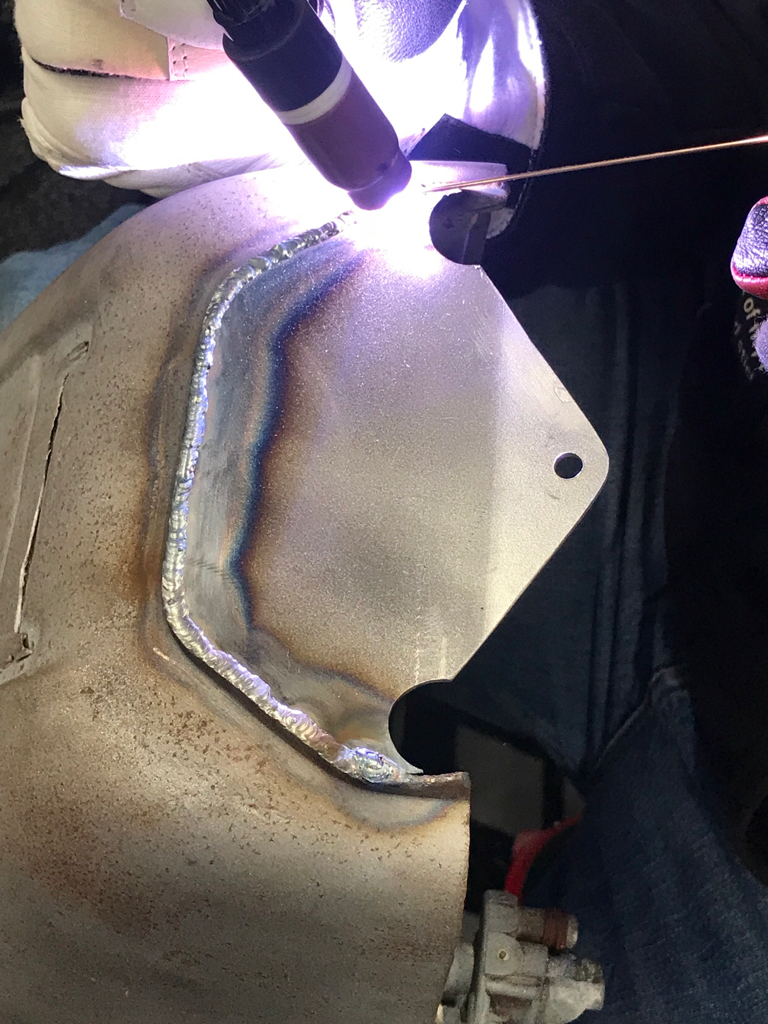

Got the shock mounts, seat frame bars and tank end cap welded on yesterday. In the words of the Beatles, with a little help from my friends....

I think it’s time I learned to weld.



[Alex jb]

Nice welds!


Sent from my iPhone using Tapatalk



[Sonreir]

Following along.



[Coopacoopacoopa]

The world of 3d printing is developing so fast. What a time to be alive. This is coming along nicely!



[bex]

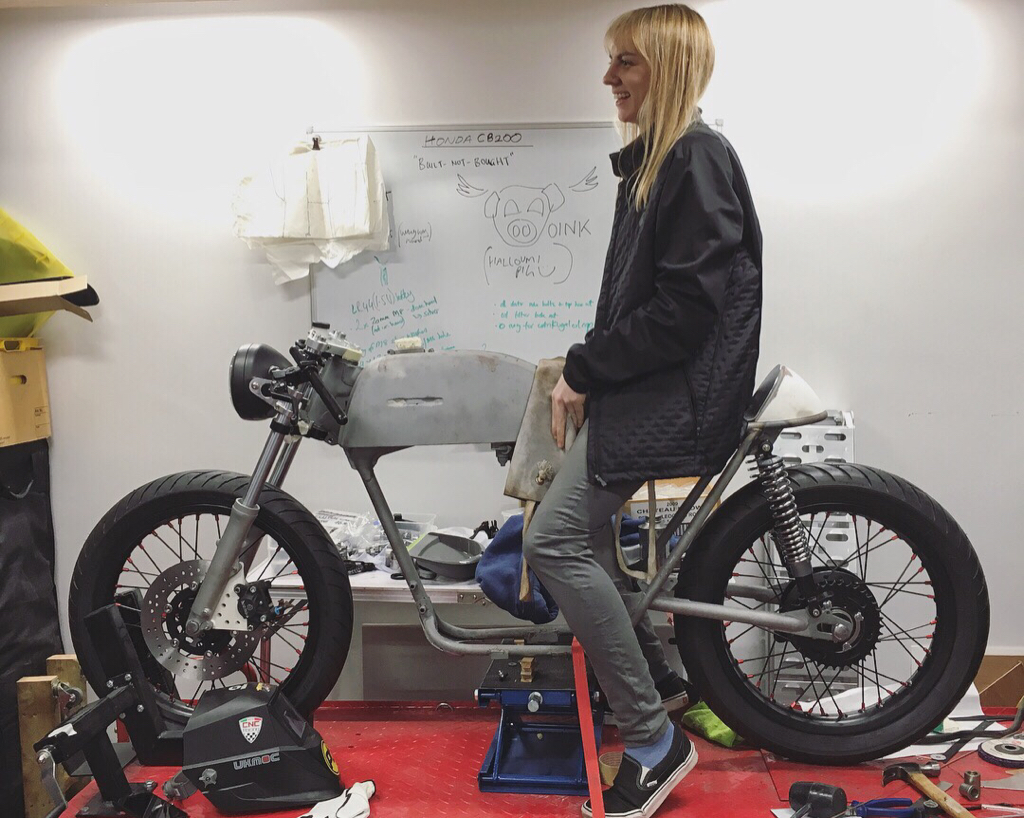

He’s rolling



[Alex jb]

Sweet


Sent from my iPhone using Tapatalk



[bex]

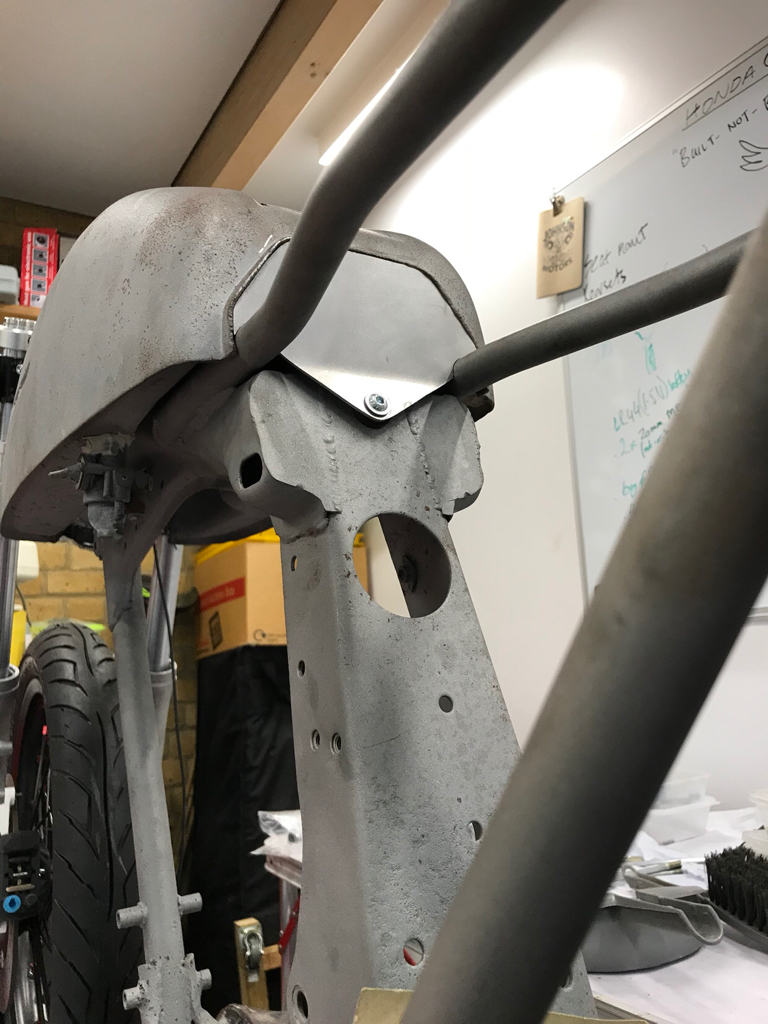

Mocking up the battery and M unit locations, and a rear pan.
