Long awaited CB200 Build

Tim

Administrator
Staff member
The battery location looks cool, and I'm confident given your attention to detail you're thinking about things like this, but consider how you're going to connect/disconnect the terminals.

Make sure you have clearance for the bolts and tool.

That and ventilation for cooling the electrical components.


bex

Been Around the Block
Yes, it needs some thinking about to get it right. The cowl will be removable and so the battery will be able to be lifted out worse case scenario (fixed to pan rather than cowl), but it should be possible to leave it all on too


bex

Been Around the Block
Got some new Keihin PE22 carbs delivered this week. The plan was to bore the originals but apparently there isn’t enough metal there, I had been warned this was likely the case (I’m not doing the more complex engine mods myself) so need to find some adaptors for these. Anybody know of any that will fit?



bex

Been Around the Block
Collected some parts from the specialist who has overbored the barrels +1mm, beautifully smooth honed finish.









The air intake ports have been machined out and resin deposited in there and reshaped for a smoother air flow. He used resin in the end as adding metal wasn’t sticking, clever stuff.

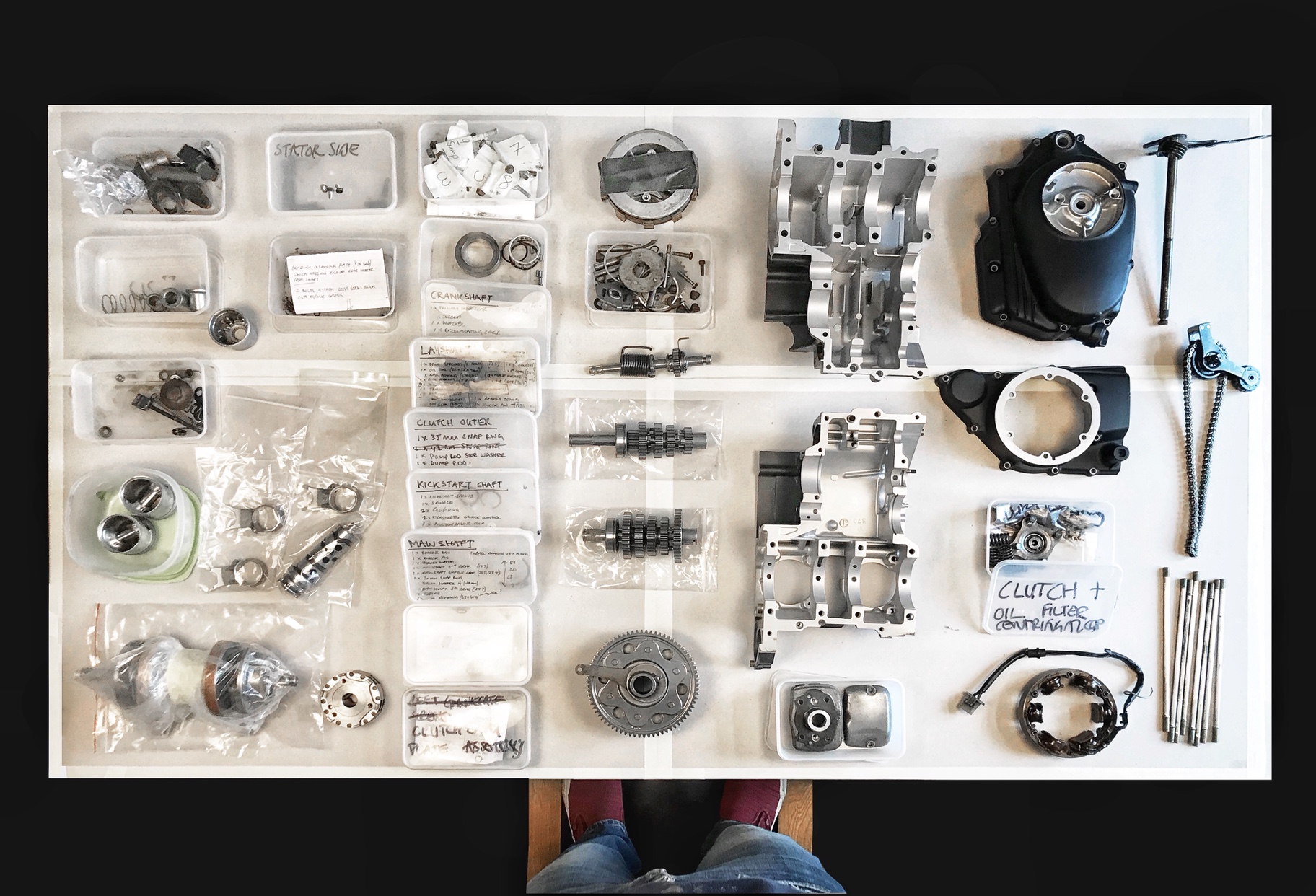

Boring stuff going on in the background includes taping up engine casings for painting, now that the temperature has gone up at bit. At least it did briefly.



Alex jb

Been Around the Block
Nice work,
Did you match the port with the carb inlet size?

I have worked my 200 head quite a bit for smoother more continuous cross section flow, but haven’t matched the carbs yet


Sent from my iPhone using Tapatalk


bex

Been Around the Block
Yes - well, I didn’t, but the guy doing the specialist engine work did/is.


bex

Been Around the Block
So the upsized Keihins, along with the original manifolds, have now been machined to match the new gas flowed intake ports ...



⠀⠀


bex

Been Around the Block
Just got my stator back from rewinding, looks great.

Before:


After:

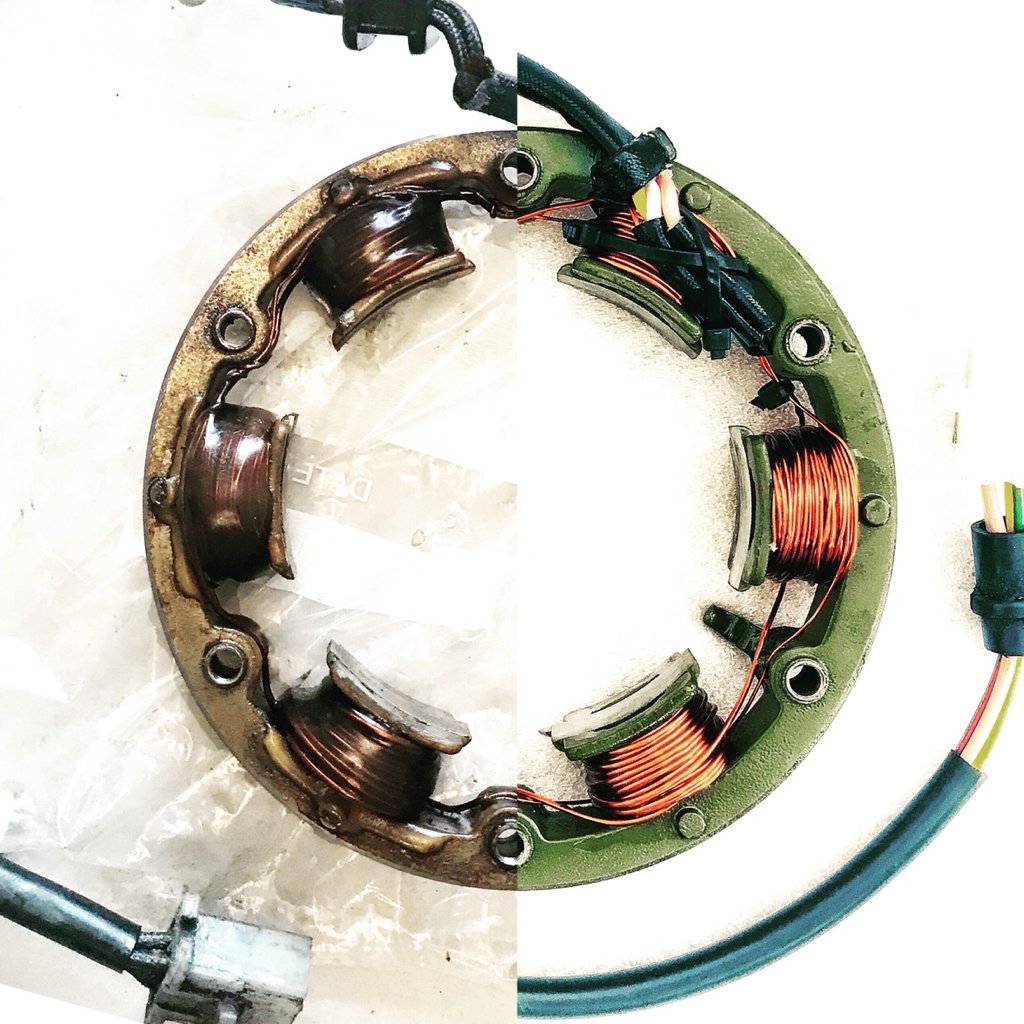

And a bit of both: :D


Alex jb

Been Around the Block
Nice job, is it the same output as original?
Mind if I ask what it cost ya?


Sent from my iPhone using Tapatalk


bex

Been Around the Block
I haven’t tested it but I think so, it was actually working before but the coatings were starting to fail so I’m not sure it would have lasted too long.

Cheap, £130 quid!


deepwaterimports

Over 1,000 Posts
What a awesome build. May I ask what caliper that front brembo is from. Looking to upgrade my cb200 front but am struggling to find a small one to fit.


Sent from my iPhone using DO THE TON


bex

Been Around the Block
It's actually a rear caliper, as you say, nothing decent for the front fits these little bikes. I'm not even sure this setup is going to work but we'll see.

From memory its one of these: https://www.biketorqueracing.co.uk/buy/brembo-brembo-oe-rear-brake-caliper-black/20516181.htm


Alex jb

Been Around the Block
That’s painfully clean!

Keep at it, it’ll run in no time


Sent from my iPhone using Tapatalk


Alex jb

Been Around the Block
That’s very nice looking.

Do you need that size for venting a crank case?
I don’t know, just asking
