SYM Wolf 150 Build

[doombug]

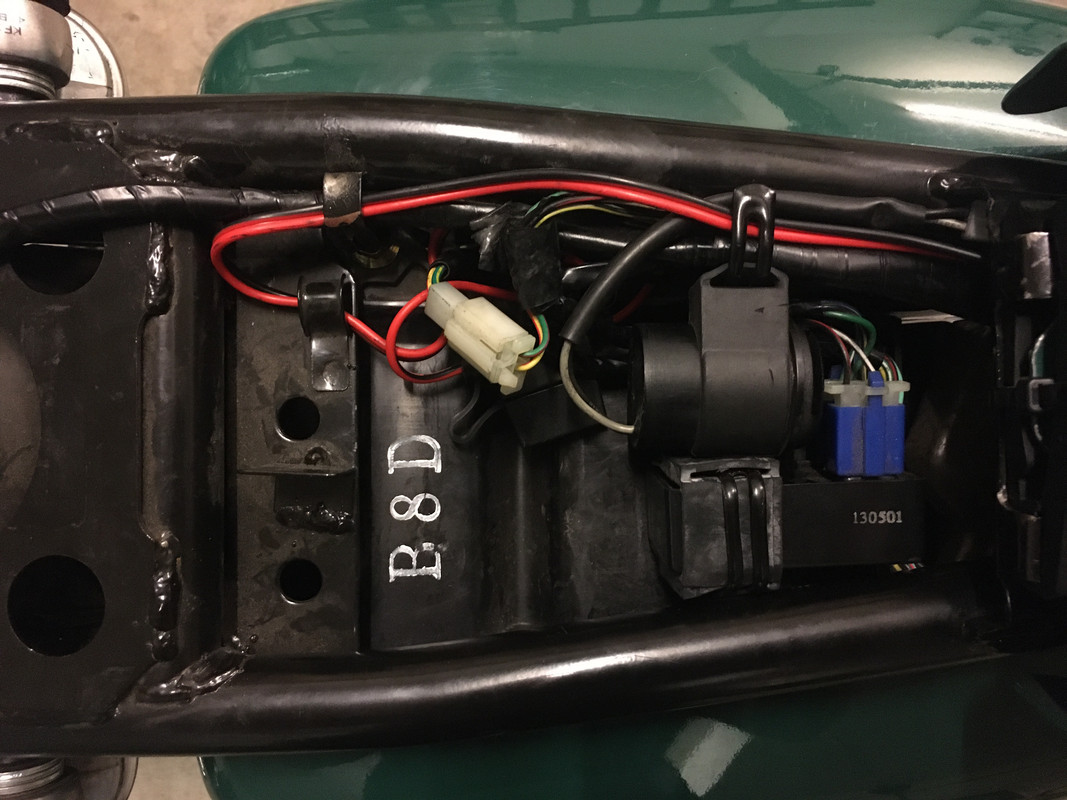

New fender and cleaned up the electronics under the seat.



[doombug]

Parts ordered for fender delete. Just need to fab a bracket to mount the license plate.

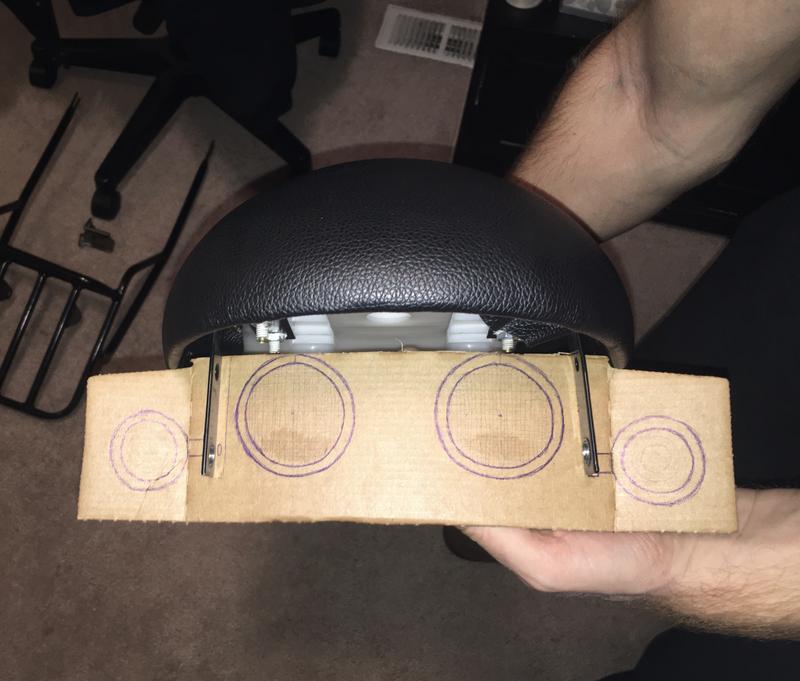

Quick to scale mock-up. Indicators will be mounted to old fender tabs, two brake lights mounted to seat mounting brackets. Brake lights will stick out a little to match the seat lines. They’ll look similar to stock bullet style but more compact.



[SpaceTrucker]

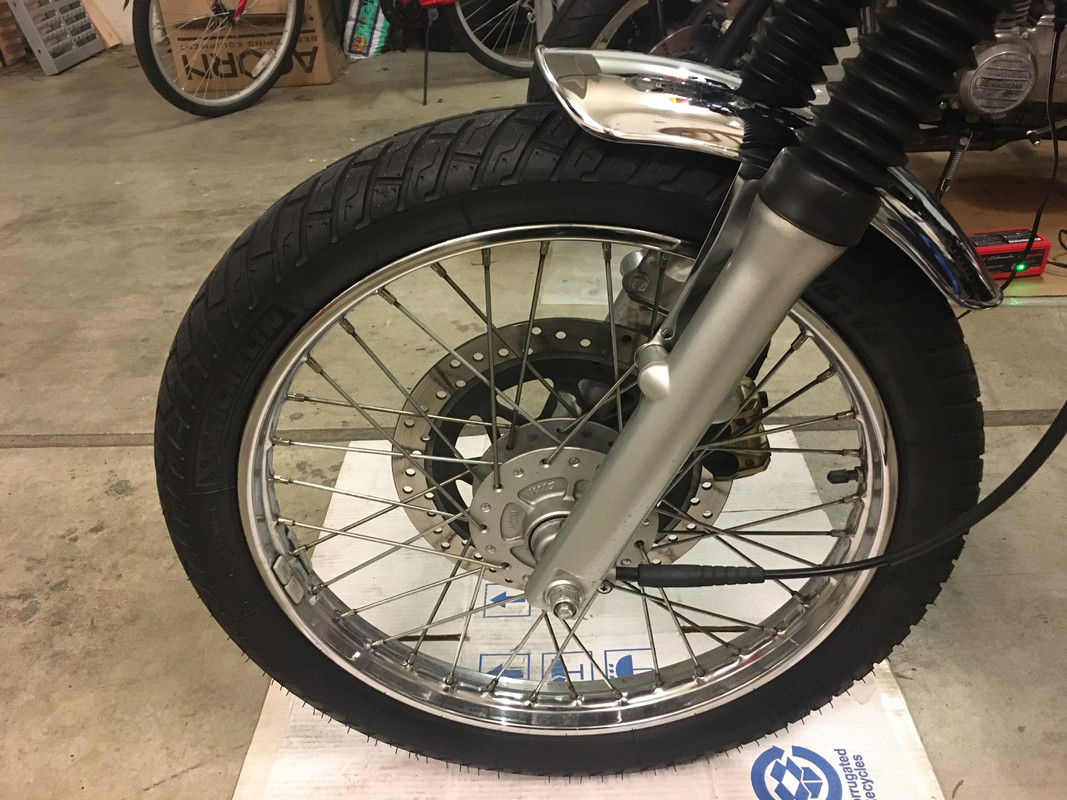

Doonbug, nice build. Where did you get the front fender?



[whynot]

yes, very cool build.......like the front fender, too.



[doombug]

Doonbug, nice build. Where did you get the front fender?

Cheap fender off amazon, originally for a Honda CG125



[Mike450]

Cool build. I like seeing people work with "non-traditional" bikes (i.e. Japanese, Brit. etc.).



[Luugo86]

Some really well done mods to make this bike unique and have a nice look to it. Good work man.



[doombug]

Thank you.
I picked this bike because a lot of generic honda parts fit it and reliability/upgrades that come with bikes from this century. Plus, it's my first project, I'm going to make mistakes. I'd rather break a new off brand bike than something that should be restored and retired to a collection.



[doombug]

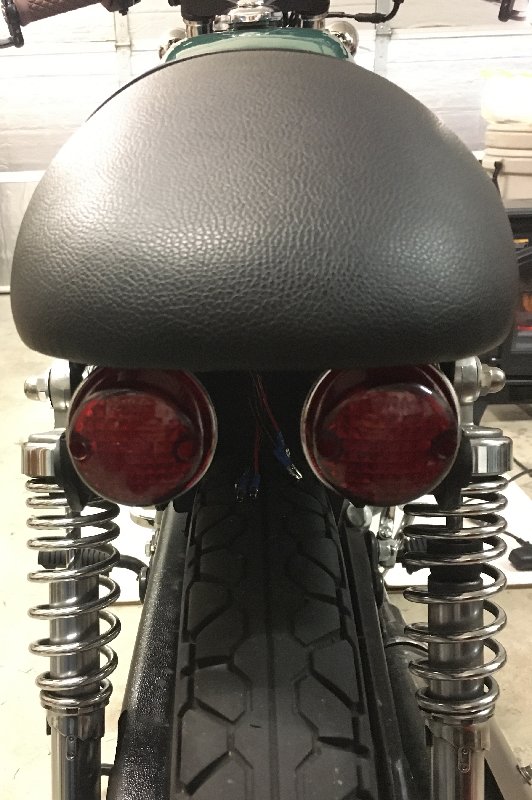

Just waiting for the indicators.



[Deviant1]

Looking good so far! Those lights look a little close to the tire. Will they come into contact with it when the suspension is compressed? I had my rear tire eat my license plate once...



[doombug]

Looking good so far! Those lights look a little close to the tire. Will they come into contact with it when the suspension is compressed? I had my rear tire eat my license plate once...

They’re about half an inch lower than where the fender sat, so I’m going adjust the preload and pray haha



[doombug]

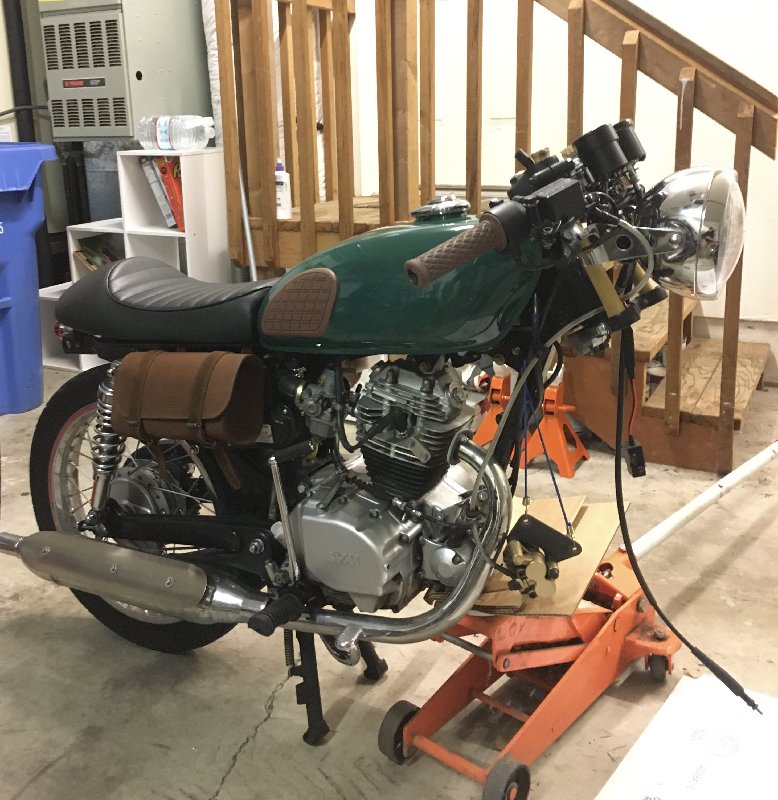

Tore apart the front end.
Rebuilding/shortening forks, cutting springs, adding bushings and heavier oil.
New headlight bracket.
Lowered gauges to sit flush.
Moved clip ons under top triple. Had to flip left/right and drill new holes in them to get position bolts to fit better.



[doombug]

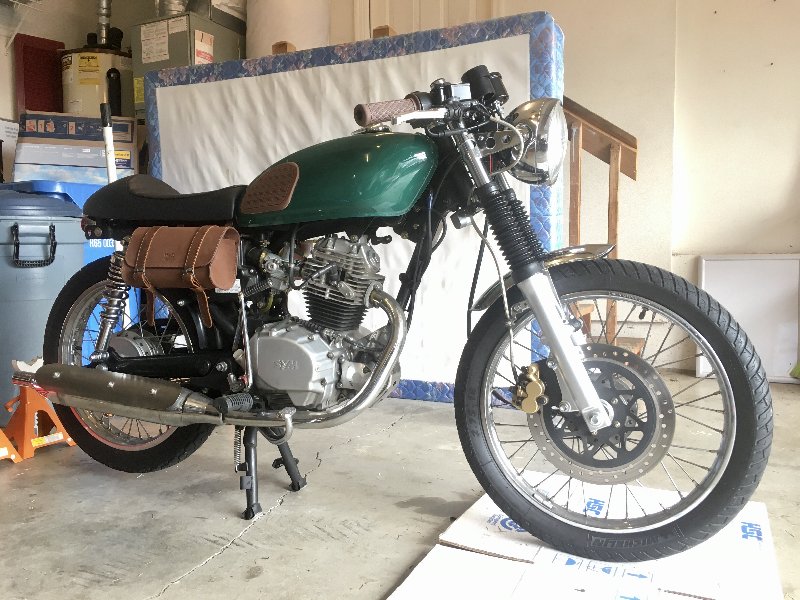

Short forks! Turn signals should arrive tomorrow.



[doombug]

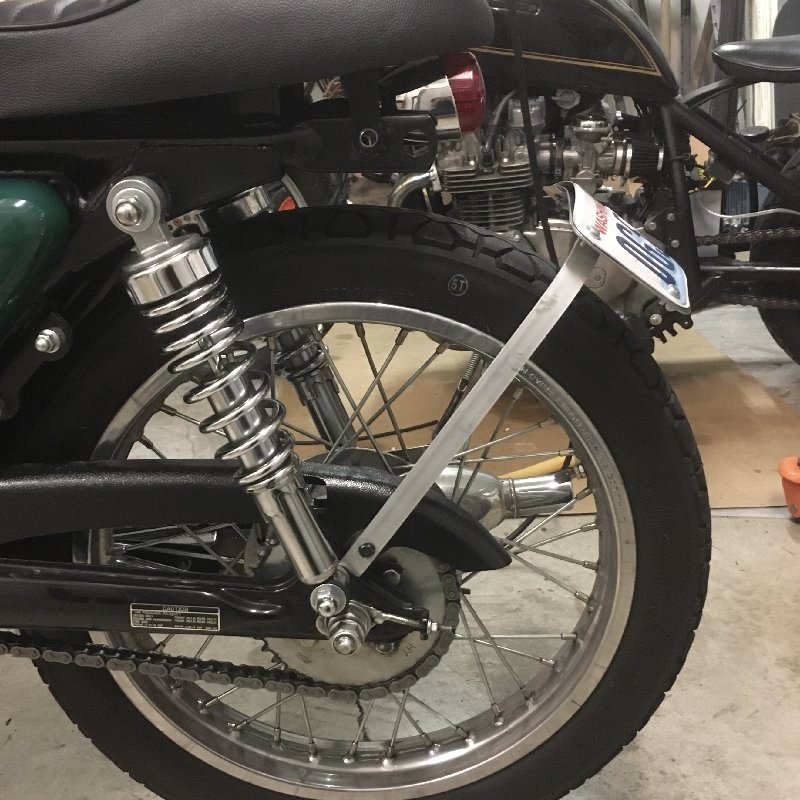

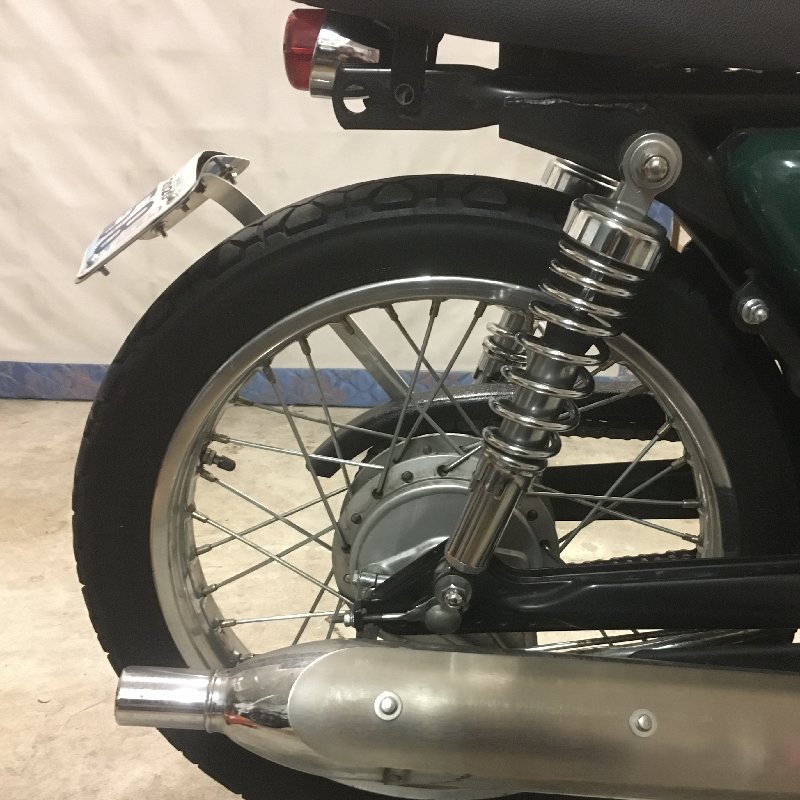

Made a functional mock license plate mount out of some spare aluminum flat bar. Eventually it will be upgraded with a thicker steel version.



[Luugo86]

Nice job cleaning up the front end man. Bike looks nice and clean.. how does it ride?



[doombug]

Nice job cleaning up the front end man. Bike looks nice and clean.. how does it ride?

Thank you. I definitely feel the road now haha Reacts better to steering input, but not twitchy.



[doombug]

Looks like my indicators are trapped in limbo at customs. It's nice out and I'm impatient, so I ordered another set from amazon that won't be shipped internationally.



[doombug]

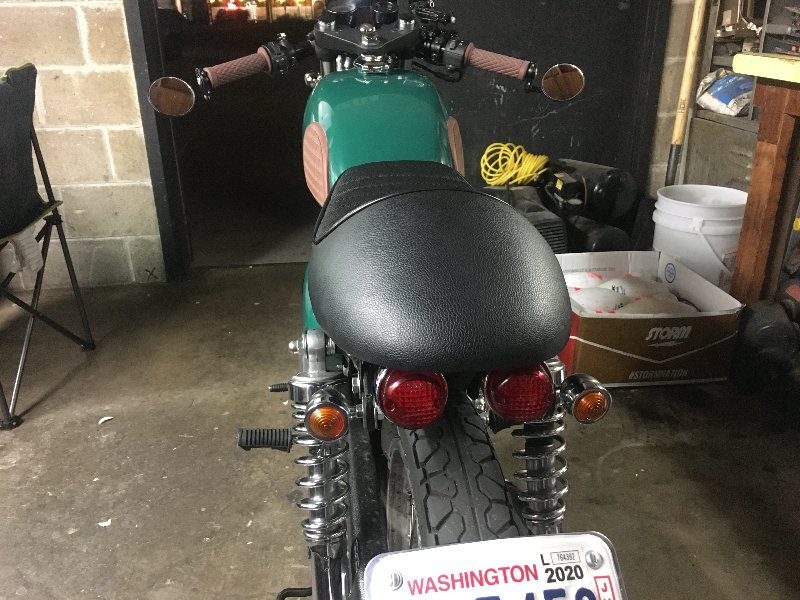

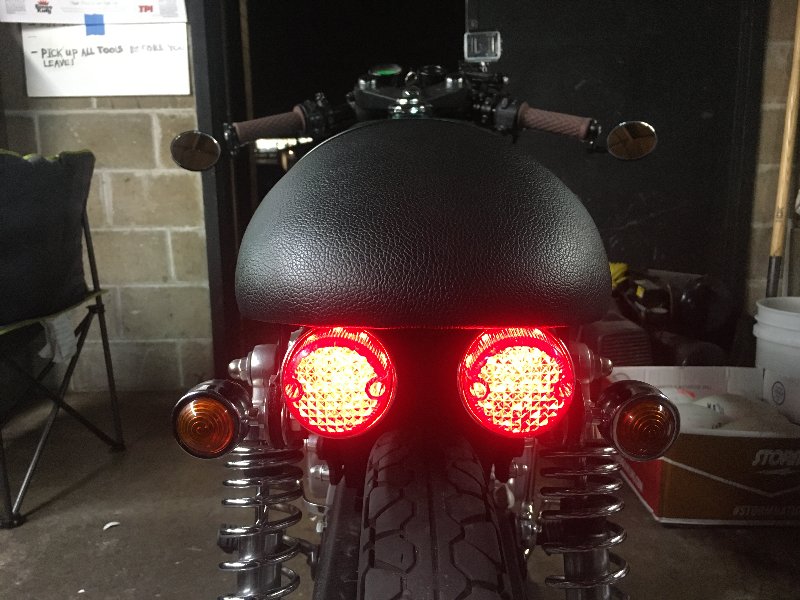

Guess what was waiting at the post office and not customs... Good thing the KZ750 I’m working on needed indicators.



[SpaceTrucker]

Those look great! Do the indicators from Amazon look the same? Where did the tail lights come from?



[doombug]

Those look great! Do the indicators from Amazon look the same? Where did the tail lights come from?

Tail lights($7 each)and indicators($4 pair) are from Aliexpress. The amazon indicators($14 pair) are about the size(50mm-ish) of the brake lights and the cone is a bit more pointed. They just wouldn’t look good on this small single.
