1974 CB360 Fallin' Ditch Hell Ride

irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
adventurco said:
378??

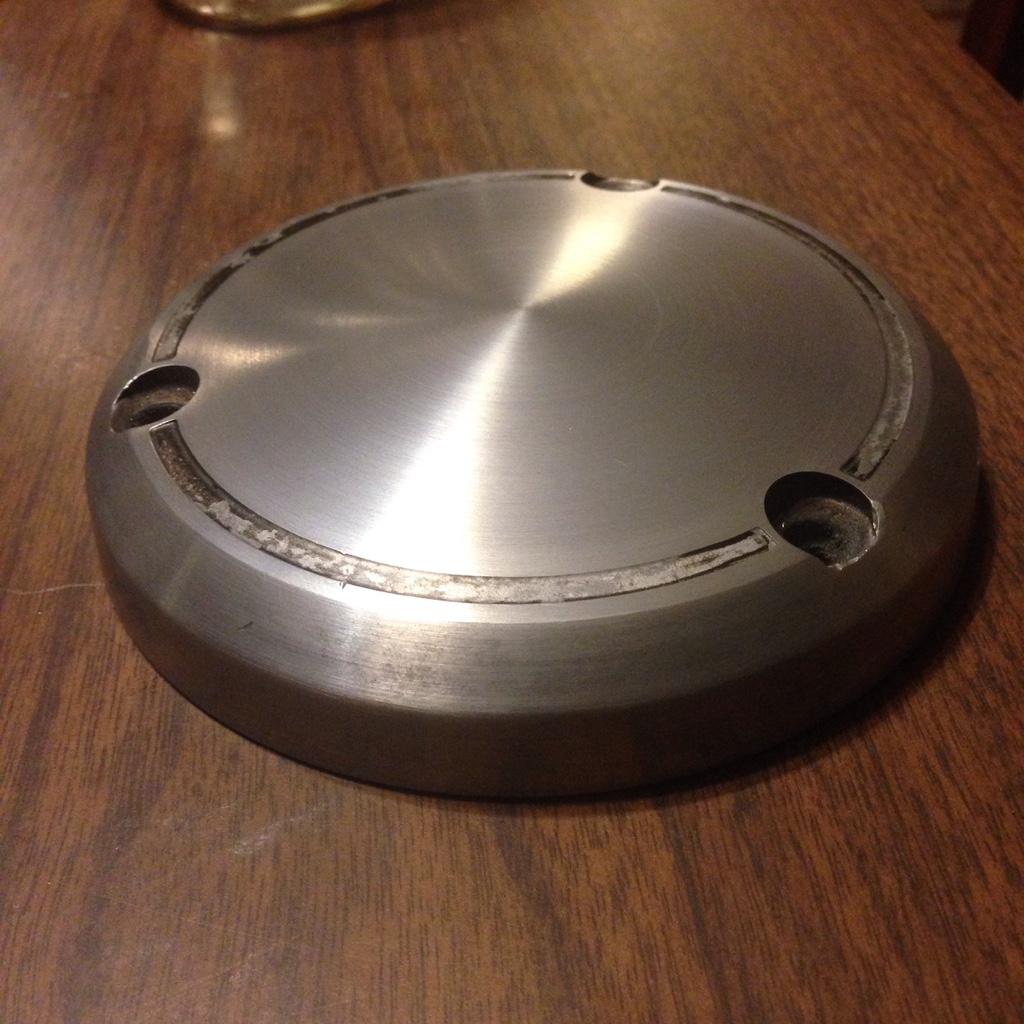

What's going on the stator cover?


Sent from my iPhone using DO THE TON
Might as well. I'm reluctant to dump that much money into this thing, but what the hell. Having it ready for Barber just flew out the window.

To be determined on the stator cover. I have some ideas, but nothing finalized.- maybe a logo for my own ventures, something artistic or thoughts of the HM wing, HRC or similar.


adventurco

Nick Ol' Eye
DTT BOTM WINNER
deviant said:
To be determined on the stator cover. I have some ideas, but nothing finalized.- maybe a logo for my own ventures, something artistic or thoughts of the HM wing, HRC or similar.
Let me know


Sent from my iPhone using DO THE TON


adventurco

Nick Ol' Eye
DTT BOTM WINNER

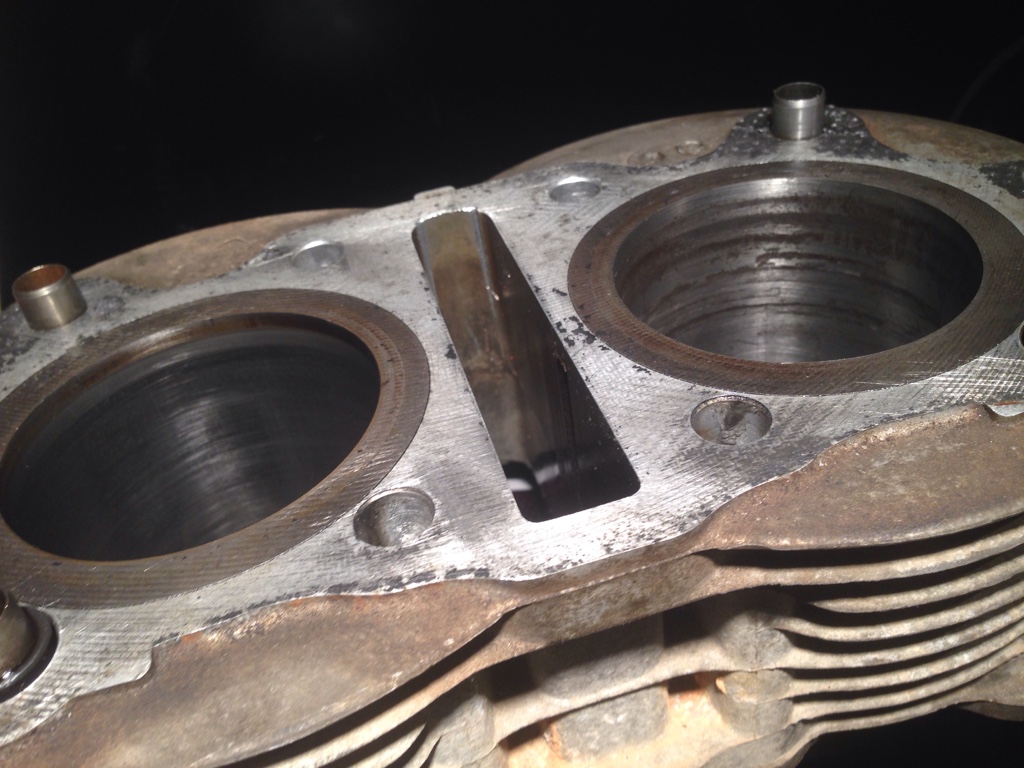

The jug on the turd looked pretty bad, a light hone smoothed it right out but left a bit of staining that I'm not worried about

Sent from my iPhone using DO THE TON


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER

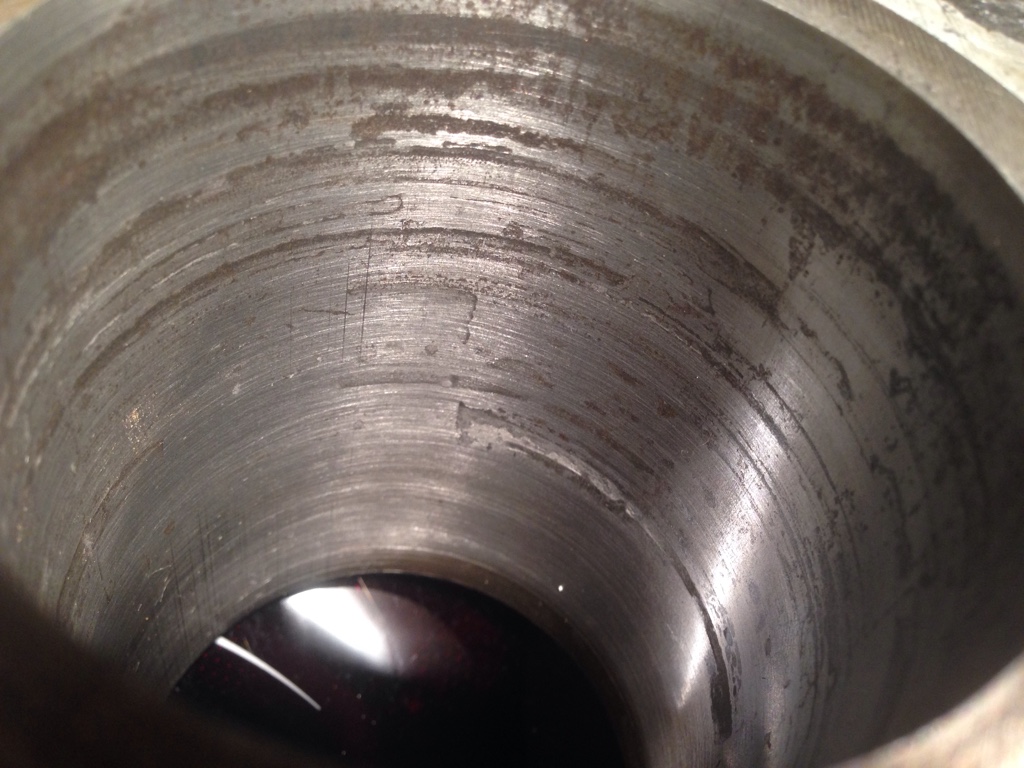

I honed them and it's all really smooth. The only place you feel any depression I circled in the pic, which I think is below the rings. When I tested for compression, I had really good numbers, too. I'll probably just replace all the rubber and gaskets and button it back up and see how it runs. It's not but a few hours work to tear it down again.


Attachments

Maritime

Well-Known Member
Good plan, if you had good compression, give it a go first. worst case you then pull it out and bore it to 378 ;D


cxman

Active Member
DTT SUPPORTER
meh lots of good jugs around for 360s cuz there are so many of them with crapped out heads and motors

if you are worried about the jugs give me a call i can probably scare you some up


crazypj

Split personality, I fake being smart
adventurco said:
378??

What's going on the stator cover?


Sent from my iPhone using DO THE TON
Used pistons, cylinders get bored and honed to fit.
get new rings, (aftermarket work fine, I've been using 1.00mm oversize and gapping them with a gapping tool I bought ? yrs ago (1mm over was cheaper than stock size ;) )
Thjis is the type but I'm pretty sure it was cheaper at Summit racing than eBay?
http://www.ebay.com/itm/Piston-Ring-Gapping-Grinder-Ring-File-Tool-Gap-/232014000893?hash=item36051cb2fd:m:mhet18JAxVUqMHYWJWbQ9zg&item=232014000893&vxp=mtr
Bore is the expensive part


Hurco550

Keep er' Between the ditches
DTT SUPPORTER
DTT BOTM WINNER
crazypj said:
Bore is the expensive part
Mr Ridesolo and I are still lucky enough to have a fairly local guy that does a bore / sunnin hone for $35 a hole. super good guy, does a nice job and super fast turn around. He ships too, so if it makes sense to ship to mid ohio, look up mototech usa on facebook and give chris a call.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
hurco550 said:
Mr Ridesolo and I are still lucky enough to have a fairly local guy that does a bore / sunnin hone for $35 a hole. super good guy, does a nice job and super fast turn around. He ships too, so if it makes sense to ship to mid ohio, look up mototech usa on facebook and give chris a call.
Thanks, bud. I just got off the phone with him. I do have a local place, but their head price was at the high end on my CB750. I haven't called them about a bore yet.


irk miller

You've been mostly-dead all day.
DTT BOTM WINNER
crazypj said:
Used pistons, cylinders get bored and honed to fit.
get new rings, (aftermarket work fine, I've been using 1.00mm oversize and gapping them with a gapping tool I bought ? yrs ago (1mm over was cheaper than stock size ;) )
Thjis is the type but I'm pretty sure it was cheaper at Summit racing than eBay?
http://www.ebay.com/itm/Piston-Ring-Gapping-Grinder-Ring-File-Tool-Gap-/232014000893?hash=item36051cb2fd:m:mhet18JAxVUqMHYWJWbQ9zg&item=232014000893&vxp=mtr
Bore is the expensive part
Curious if you can go with another overbore piston, say a 71mm from a CB400 overbore?


Sent from my iPhone using DO THE TON


canyoncarver

'hacking is learning'
DTT BOTM WINNER
Dude. I didn't even know you were doing a thread on the 360. Here all this time I thought you were just slacking off....
