Project CB690 (KTM 690 engine in a CB550f frame)

Jimbonaut

Over 1,000 Posts
DTT SUPPORTER
That's fierce. Are some test centres more - ahem - lenient than others? You poke around Quebec long enough and a guy'll be surprised what he uncovers...


goodoltup

Been Around the Block
Plate attached, road grime acquired! I took it for a few test rides, but the roads are still damp at best, and the temperature outside is still quite cold. I had one moment where the back end stepped out a bit when I gave it too much coming out of a slow corner, that was enough to make me VERY cautious for the rest of the ride. I won't be able to actually give it some stick until at least March. But, in the times that I could get on it, I was very impressed. It is VERY quick. It doesn't care what gear you are in or how low the revs are, it just pulls. It is savage. Just what I wanted.
Note that the zip-tie telltale shows that it very nearly bottoms out. This was a pretty normal ride with no wheelies or panic stops, and it is still only 20mm from the end of the fork bottom.


Attachments

  • IMG_5518.jpg
    783.5 KB · Views: 94
  • IMG_5519.jpg
    727.5 KB · Views: 66
  • IMG_5521.jpg
    807.3 KB · Views: 61

goodoltup

Been Around the Block
Shifter is sorted. I took the stock shift pedal and bent it in a vice to shorten it some, and removed some material from the sprocket cover to eliminate interference. It is around 140mm on centre from the peg, whereas my CD175 is 130mm. I think this is just about right, it feels good under my boot and has good action. Last two pictures show how close it is to the frame rail and the sprocket cover in up and down positions.


Attachments

  • IMG_5522.jpg
    629.2 KB · Views: 56
  • IMG_5523.jpg
    439.6 KB · Views: 58
  • IMG_5524.jpg
    578.5 KB · Views: 57
  • IMG_5525.jpg
    535.3 KB · Views: 54
  • IMG_5526.jpg
    511.4 KB · Views: 59

goodoltup

Been Around the Block
I thought it was getting loud! The fibreglass was completely smooshed up against the end of the baffle and not doing anything. This will need a rethink.


Attachments

  • IMG_5527.jpg
    652.4 KB · Views: 65

goodoltup

Been Around the Block

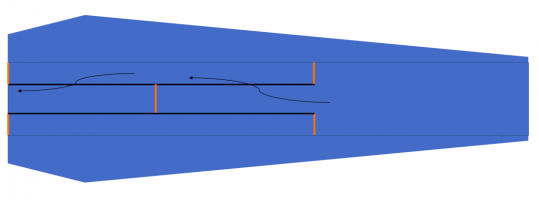

New idea for the exhaust. I took two of the cheapo exhaust db killer inserts and turned them back to back, and made a connector between them. Now the exhaust must enter the perforated tube, go through steel mesh (kitchen scrubby) go back through the perf tube, and then exit the muffler. In the diagram the black lines are perf tube and the orange lines are solid. I tried it out and it IS quiet, but there must be a ton of back pressure. I'll see on the next test ride if it responds ok.


Attachments

  • Screenshot 2021-01-11 at 12.27.18.png
    Screenshot 2021-01-11 at 12.27.18.png
    26.2 KB · Views: 48
  • IMG_5550.jpg
    533.7 KB · Views: 48
  • IMG_5552.jpg
    362.8 KB · Views: 48
  • IMG_5553.jpg
    255.7 KB · Views: 45
  • IMG_5554.jpg
    444.1 KB · Views: 42
  • IMG_5555.jpg
    535 KB · Views: 46

goodoltup

Been Around the Block

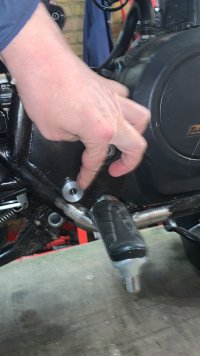

New idea for rear brake. The pedal originally pivoted around the footpeg, and the mounting location of the master resulted in an actuating lever that was too long, and the brake had a wooden feel with almost no travel. I could either move the master or move the pivot, I chose move the pivot. Instead of pivoting around the footpeg, now it will pivot around the boss shown. This will make the actuating lever 35mm, which matches what it was on the KTM.


Attachments

  • E1E8FD73-3A5D-4196-9BEB-D8D18FCF0E7B.JPG
    276.3 KB · Views: 48

goodoltup

Been Around the Block

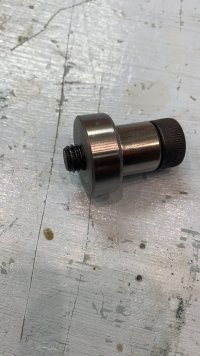

Additionally, it will pivot on a needle bearing and shoulder bolt, as seen below.


Attachments

  • 26BF66FE-0BE8-4360-99F4-C89CEFA022BA.JPG
    375 KB · Views: 50

goodoltup

Been Around the Block

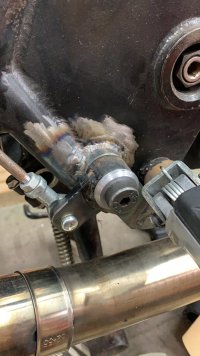

The threaded boss that was made (by my neighbour with his new lathe) overlapped with the frame tube by about 50%, so something needed to be done. Steps as follows:
1. Make a pig's ear of the frame
2. Weld it up and hide the shame.
Looks fine in the end, really. A little weld dressing and paint and no one will ever notice.


Attachments

  • IMG_5556.jpg
    808.5 KB · Views: 52
  • IMG_5557.jpg
    501.7 KB · Views: 51
  • IMG_5558.jpg
    716.1 KB · Views: 50
  • IMG_5559.jpg
    614.4 KB · Views: 56

pidjones

Over 1,000 Posts
Make darn sure all of the exhaust parts are secure. I found that a GL1000 will rip 3/16 pop rivets right out if they are restricting it. The two big washers mounted 1" behind the baffle in my shorties are laying in a ditch somewhere.


goodoltup

Been Around the Block

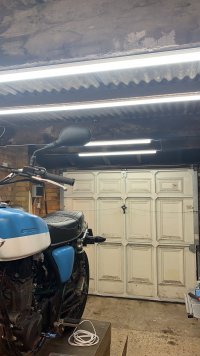

Quick one, I installed LED T5 lights in the garage. They're great. Cheap (£70), and super bright. The garage is only about 14 feet by 25 feet, and I put 8 T5s in there, plus some other shorter ones over the bench. Only problem is the colour temperature is super high, 6500K. The light is very cool, almost blue. I ordered some colour correcting gels to see if I can warm it up a little.


Attachments

  • 5656E3E1-B61A-48BF-B285-20B45DDA1426.JPG
    338.3 KB · Views: 44

goodoltup

Been Around the Block
New idea for the radiator! I got a Suzuki GSF400 radiator and cut all the tabs off, and turned it sideways, and offered it up. It's the same area as the 690 radiator, so it should work. Here I've mocked up some hoses, and they fit pretty well. The upper hose fits between the frame cross members, and the bottom one tucks in front of the starter and behind the engine mount. The radiator will have to have some holes welded up, new pipes welded on, a filler neck welded on, and a temp sensor bung welded in. I'll mock it up and give it to someone else to weld.


Attachments

  • IMG_5630.jpg
    691.8 KB · Views: 56
  • IMG_5631.jpg
    704.2 KB · Views: 54
  • IMG_5632.jpg
    693.9 KB · Views: 55

goodoltup

Been Around the Block
Another quick one: I painted my bench with some blue latex paint to keep the oil from seeping in, and never liked how it looked. Things got worse when after a few years I added another coat, which started to flake off. I tried to strip it but it turned into a gooey mess, so I took the top off the bench and flipped it over. Much happier with how this looks, plus no blue paint flakes sticking to everything.


Attachments

  • IMG_5641.jpg
    684.9 KB · Views: 47

goodoltup

Been Around the Block
I had originally wanted to build this bike with 18" wheels front and rear, and ended up compromising by using the KTM wheels because it was easier and faster. I think they look good now, but the rear wheel always seemed a little too small for the fender, especially because the swingarm is almost 60mm longer than stock. Also the rim size in the rear holds a 160 tyre, which is a little too sporty for the application.
I like the look of the Pirelli Phantom sportscomp tyres, but they are not available in all sizes. I bought a 150 section Phantom rear tyre on eBay part used, and had it installed to see how it looks. The taller profile (70) makes it look a lot bigger. It's a much more appropriate tyre for the bike, I think. When the bike is torn down for final beadblast/paint etc I will put on two brand new Phantoms.


Attachments

  • IMG_5638.jpg
    816.6 KB · Views: 43
  • IMG_5639.jpg
    917.1 KB · Views: 45
  • IMG_5640.jpg
    837.2 KB · Views: 46

goodoltup

Been Around the Block
Rear brake pedal is shaping up. My neighbour bought a lathe and has been making parts for me, shown in the first picture is a washer that goes behind the shoulder bolt. Thank you Carl!
Still considering where to put the return spring, I may use a compression spring around the rod, acting on a tab on the frame. Last picture shows the footpeg, it now acts as a stop for the pedal. The 28mm diameter ring that the pedal stops on will be turned into an eccentric for pedal height adjustment.


Attachments

  • 115028C4-AC45-433E-A4FB-D29A8749AC8C.JPG
    387.5 KB · Views: 37
  • IMG_5654.jpg
    628.5 KB · Views: 37
  • IMG_5653.jpg
    827.1 KB · Views: 36
  • IMG_5656.jpg
    734.8 KB · Views: 37
  • IMG_5655.jpg
    538.5 KB · Views: 38

goodoltup

Been Around the Block
I had a go at making a tubing beader for the radiator work, by modifying some welding clamps. It works, but is very tedious. I'll post some pictures of it 'working'


Attachments

  • IMG_5644.jpg
    719 KB · Views: 43
  • IMG_5645.jpg
    482.8 KB · Views: 42
  • IMG_5646.jpg
    527.3 KB · Views: 46

goodoltup

Been Around the Block
I cut and taped some CTO (colour temperature orange) gels to the LED lights and it made a huge difference. They are 50% CTO, and are supposed to take around 1500 off the temp. Now it looks more like the garage is lit by normal fluorescents and not HID lamps. There is some penalty to overall brightness but it not's much.


Attachments

  • IMG_5695.jpg
    2.3 MB · Views: 35
  • IMG_5700.jpg
    1.8 MB · Views: 33

goodoltup

Been Around the Block
Some radiator mock up pictures.


Attachments

  • IMG_5696.jpg
    541.7 KB · Views: 42
  • IMG_5697.jpg
    624.4 KB · Views: 42
  • IMG_5698.jpg
    558.2 KB · Views: 41
  • IMG_5699.jpg
    683.6 KB · Views: 42
  • IMG_5712.jpg
    801.7 KB · Views: 51

goodoltup

Been Around the Block
Well deserved! It's a bloody beast of a build :D I am keen to hear how the exhaust silencer goes... And what was the reason for the new radiator design? Overheating or looks? Or both? ;)
Hi Jadus, Thank you! Radiator is for looks only, the current setup works perfectly. And a bit of a challenge! The silencer went really well, I took it on a test ride last weekend and it was relatively quiet. The bike should really have a collector box and exausts on both sides to increase volume, maybe I'll do that in the future. All I have to do now is finish the radiator, do final fitment of all the cables and wires, and then it comes apart for blasting, paint, chrome, etc. I'm expecting about 1 year left based on my rate so far!
